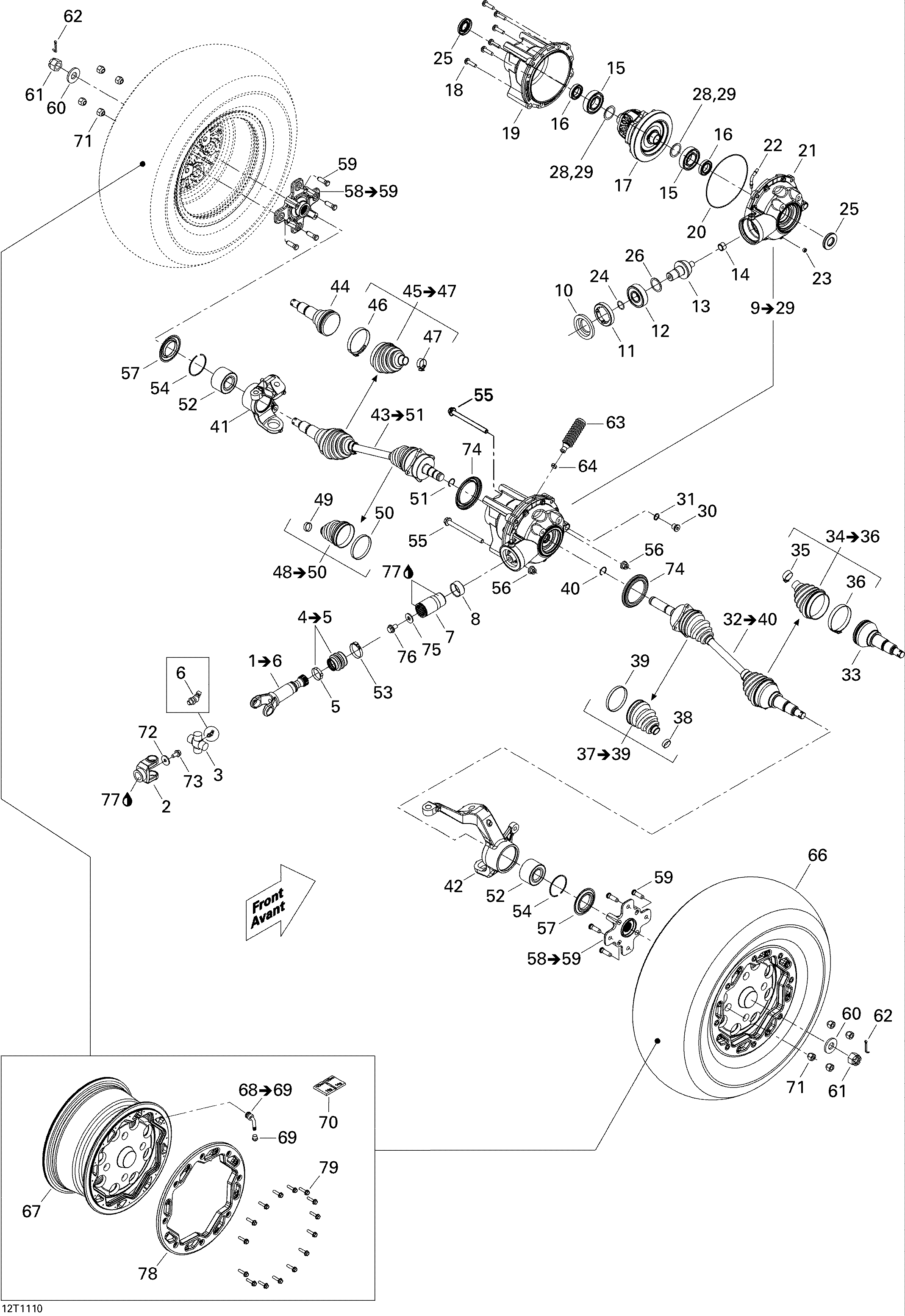

07- Drive System, Front для BRP Outlander 800R EFI, XXC - 2011
-
№АртикулНазвание
-
1705400551 Front Drive Axle Ass'y. Includes 1 to 6Front Drive Axle Ass'y. Includes 1 to 6
-
2705400391 Yoke, Fixed JointYoke, Fixed Joint
-
3703000024 Unit Pack KitUnit Pack Kit
-
4703500255 Rubber Boot Kit. Includes 4 to 5Rubber Boot Kit. Includes 4 to 5
-
5293650138 Oetiker Gear ClampOetiker Gear Clamp
-
6715900067 Grease FittingGrease Fitting
-
7705400149 Coupling SleeveCoupling Sleeve
-
8705400036 Wear RingWear Ring
-
9705400793 Differential Ass'y. Includes 9 to 29Differential Ass'y. Includes 9 to 29
-
10705400027 Oil SealOil Seal
-
11705400661 NutNut
-
12705500260 Ball BearingBall Bearing
-
13705501051 10 Teeth Pinion10 Teeth Pinion
-
14705500261 Needle BearingNeedle Bearing
-
15705500259 Ball BearingBall Bearing
-
16293350044 Ball BearingBall Bearing
-
17705400822 DifferentialDifferential
-
18705500892 ScrewScrew
-
19705400297 Front CoverFront Cover
-
20705500265 SealSeal
-
21705400646 Front CoverFront Cover
-
22705500893 Vent ValveVent Valve
-
23705500894 Drain PlugDrain Plug
-
24705500267 O-RingO-Ring
-
25705500255 Oil SealOil Seal
-
26703500049 Pinion Shim KitPinion Shim Kit
-
28703500288 Differential Shim Spool KitDifferential Shim Spool Kit
-
29703500050 Differential Shim Spool KitDifferential Shim Spool Kit
-
30250400041 Screw PlugScrew Plug
-
31705500506 Copper WasherCopper Washer
-
32705400733 RH CV Joint Ass'y. Includes 32 to 40RH CV Joint Ass'y. Includes 32 to 40
-
33705500560 CV JointCV Joint
-
34705400511 Wheel Boot Kit. Includes 34 to 36Wheel Boot Kit. Includes 34 to 36
-
35293650192 Oetiker Clamp 23mmOetiker Clamp 23mm
-
36293650194 Oetiker Clamp 70mmOetiker Clamp 70mm
-
37705400512 Differential Boot Kit. Includes 37 to 39Differential Boot Kit. Includes 37 to 39
-
38293650192 Oetiker Clamp 23mmOetiker Clamp 23mm
-
39293650193 Oetiker Clamp 67mmOetiker Clamp 67mm
-
40705400042 CirclipCirclip
-
41705400820 LH KnuckleLH Knuckle
-
42705400821 RH KnuckleRH Knuckle
-
43705400732 LH CV Joint Ass'y. Includes 43 to 51LH CV Joint Ass'y. Includes 43 to 51
-
44705500560 CV JointCV Joint
-
45705400511 Wheel Boot Kit. Includes 45 to 47Wheel Boot Kit. Includes 45 to 47
-
46293650194 Oetiker Clamp 70mmOetiker Clamp 70mm
-
47293650192 Oetiker Clamp 23mmOetiker Clamp 23mm
-
48705400512 Differential Boot Kit. Includes 48 to 50Differential Boot Kit. Includes 48 to 50
-
49293650192 Oetiker Clamp 23mmOetiker Clamp 23mm
-
50293650193 Oetiker Clamp 67mmOetiker Clamp 67mm
-
51705400042 CirclipCirclip
-
52293350040 Cone BearingCone Bearing
-
53293650138 Oetiker Gear ClampOetiker Gear Clamp
-
54293370019 CirclipCirclip
-
55230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
56233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
57705501122 External Wear SleeveExternal Wear Sleeve
-
58705401040 Wheel Hub Ass'y. Includes 58 to 59Wheel Hub Ass'y. Includes 58 to 59
-
59250300045 Wheel StudWheel Stud
-
60250200049 Spring WasherSpring Washer
-
61250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
62250400036 Cotter PinCotter Pin
-
63705400352 Rubber BellowRubber Bellow
-
64293650042 Oetiker ClampOetiker Clamp
-
66705400600 Front TireFront Tire
-
66705400475 Front Tire. EuropeFront Tire. Europe
-
67705400794 Front RimFront Rim
-
68705400872 Rim Valve with Cap. Includes 68 to 69Rim Valve with Cap. Includes 68 to 69
-
69293000111 Valve CapValve Cap
-
70705501385 1/2 OZ Weight1/2 OZ Weight
-
71250100100 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
72250200102 Flat Washer M12Flat Washer M12
-
73250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
74705400780 Wear SleeveWear Sleeve
-
75250200102 Flat Washer M12Flat Washer M12
-
76250000378 Hex Flanged Screw M12 X 16, Scotch GripHex Flanged Screw M12 X 16, Scotch Grip
-
77293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
78705400841 Reinforcement DiskReinforcement Disk
-
79250000435 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
