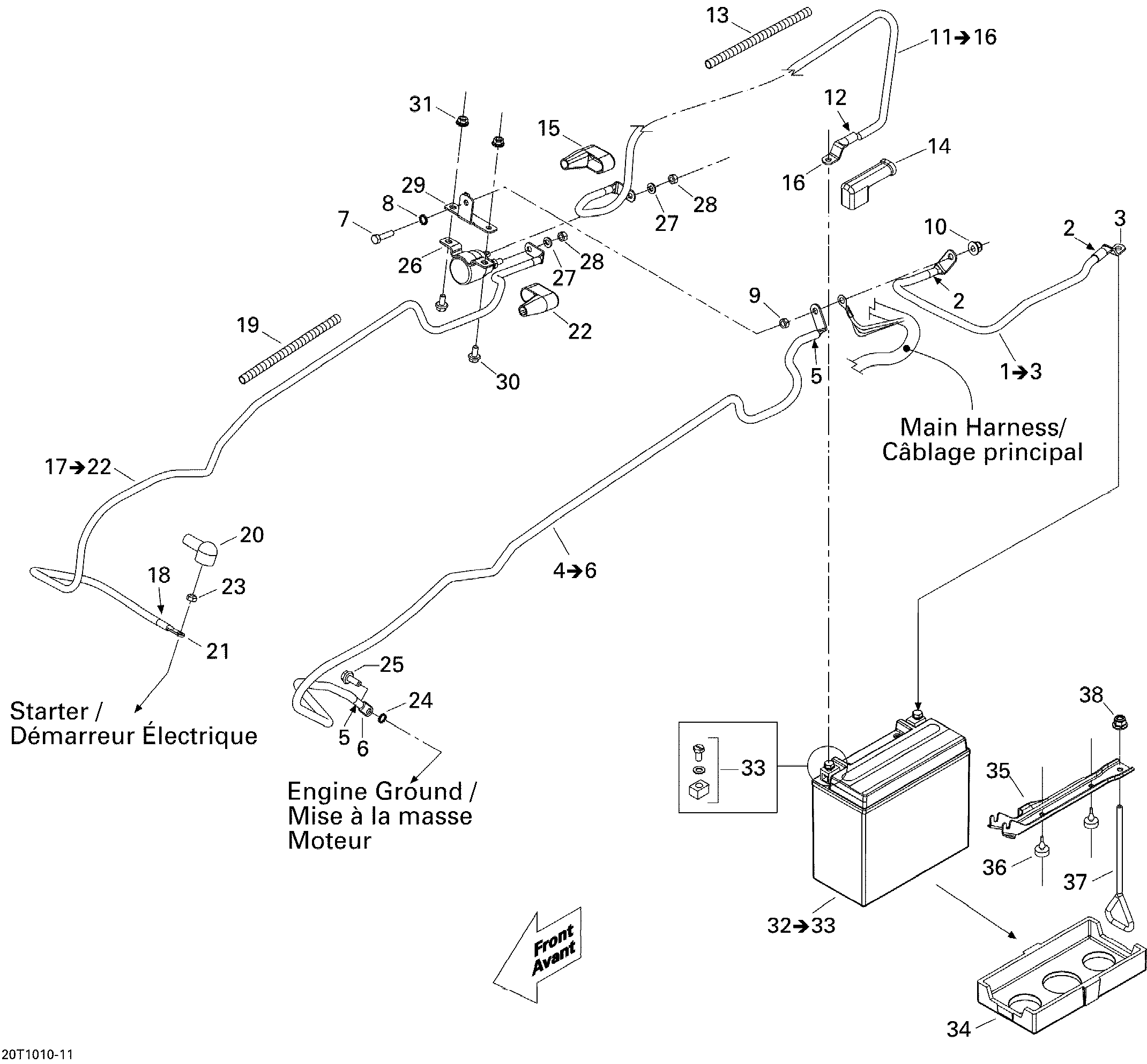

10- Electrical System для BRP Renegade 800R EFI Xxc - 2010
-
№АртикулНазвание
-
1710000830 Ground Cable, Battery/frame. Includes 1 to 3Ground Cable, Battery/frame. Includes 1 to 3
-
2710000483 Shrink TubingShrink Tubing
-
3710000518 Open BarrelOpen Barrel
-
4710000831 Ground Cable. Includes 4 to 6Ground Cable. Includes 4 to 6
-
5710000483 Shrink TubingShrink Tubing
-
7207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
8234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
9232061414 Hex. Nut M6Hex. Nut M6
-
10233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
11710001822 Positive Cable. Includes 11 to 16Positive Cable. Includes 11 to 16
-
12710000483 Shrink TubingShrink Tubing
-
13710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
14710001829 Protector CapProtector Cap
-
15710001817 Protector CapProtector Cap
-
17710001818 Positive Cable. Includes 17 to 22Positive Cable. Includes 17 to 22
-
18710000483 Shrink TubingShrink Tubing
-
19710000497 Protector Tube, 9 mmProtector Tube, 9 mm
-
20710000526 Protector CapProtector Cap
-
22710001817 Protector CapProtector Cap
-
23232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
24234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
25207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
26710001364 Starter RelayStarter Relay
-
27234161601 Lock Washer Helical M6Lock Washer Helical M6
-
28232061600 Hex. Nut M6Hex. Nut M6
-
29710001260 Solenoid SupportSolenoid Support
-
30207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
31233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
32410301203 Battery, 18 Amperes. Includes 32 to 33Battery, 18 Amperes. Includes 32 to 33
-
33295500849 Battery Fastener KitBattery Fastener Kit
-
34710000279 Insulator PadInsulator Pad
-
35710001019 Fixation PlateFixation Plate
-
36708000759 Rubber StopperRubber Stopper
-
37710001107 HookHook
-
38233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
