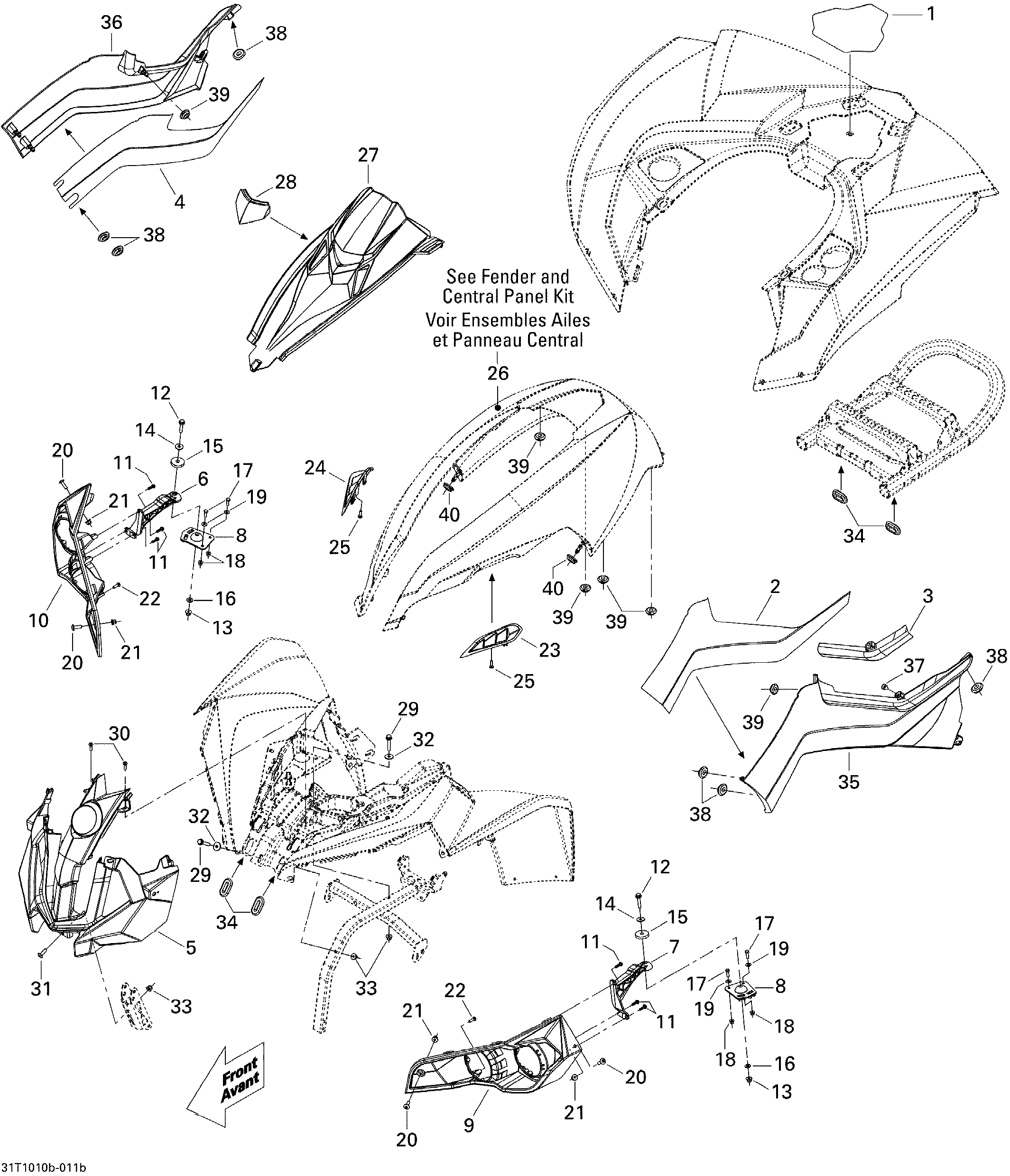

09- Body And Accessories 2 для BRP Renegade 800R EFI Xxc - 2010
-
№АртикулНазвание
-
1705002343 Rear CapetRear Capet
-
2705001990 LH Reflective SheetLH Reflective Sheet
-
3705001989 Reflective SheetReflective Sheet
-
4705002126 RH Reflective SheetRH Reflective Sheet
-
5705003489 Front FaciaFront Facia
-
6705002424 RH Light SupportRH Light Support
-
7705002425 LH Light SupportLH Light Support
-
8705002405 Ball JointBall Joint
-
9705002243 LH Front FaciaLH Front Facia
-
10705002244 RH Front FaciaRH Front Facia
-
11241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
12207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14391302000 Flat WasherFlat Washer
-
15293830037 Rubber WasherRubber Washer
-
16224061121 Flat WasherFlat Washer
-
17207151644 Hex. Screw M5 X 16Hex. Screw M5 X 16
-
18233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
19391301700 WasherWasher
-
20250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
20250000261 Torx Screw M6 X 16. EuropeTorx Screw M6 X 16. Europe
-
21233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
21233261414 Hex. Flanged Elastic Nut M6. EuropeHex. Flanged Elastic Nut M6. Europe
-
22250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
23705002276 LH Grill. BlackLH Grill. Black
-
24705002277 RH Grill. BlackRH Grill. Black
-
25250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
27705003556 DashboardDashboard
-
28705002353 Cap. North America_InternationalCap. North America_International
-
29207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
30250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
31250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
32224061201 Flat WasherFlat Washer
-
33233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
34705003668 Oblong GrommetOblong Grommet
-
35705002946 LH Lateral Panel, Yellow. BlackLH Lateral Panel, Yellow. Black
-
36705002949 RH Lateral Panel, Yellow. BlackRH Lateral Panel, Yellow. Black
-
37293830005 Rubber Plug, BlackRubber Plug, Black
-
38705005156 Oblong WasherOblong Washer
-
39705003264 GrommetGrommet
-
40705005156 Oblong WasherOblong Washer
