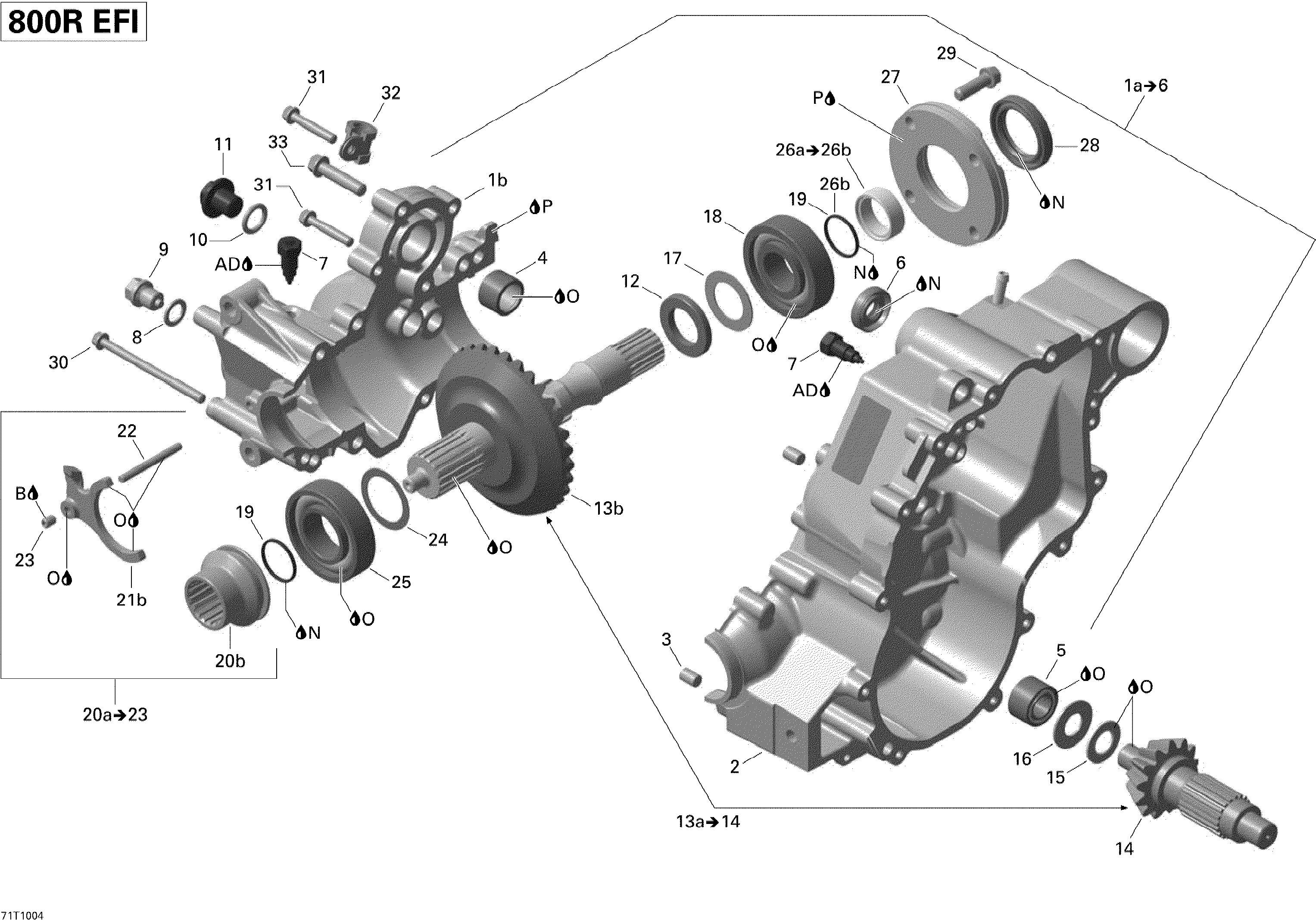

01- Gear Box Output Shaft для BRP Renegade 800R EFI Xxc - 2010
-
№АртикулНазвание
-
1a420684775 Gear Housing Ass'y. Includes 1a to 6Gear Housing Ass'y. Includes 1a to 6
-
3420632010 Pin 8 X 12Pin 8 X 12
-
4420832240 Needle BushingNeedle Bushing
-
5420232085 Needle BushingNeedle Bushing
-
6420250450 Oil SealOil Seal
-
7420640190 Position SwitchPosition Switch
-
8420250640 Copper WasherCopper Washer
-
9420241786 Magnetic Drain PlugMagnetic Drain Plug
-
10420650350 O-RingO-Ring
-
11420241660 Plug Screw M14 X 1.5Plug Screw M14 X 1.5
-
12420247770 Distance RingDistance Ring
-
13a420635552 Drive Ass'y. Includes 13a to 14Drive Ass'y. Includes 13a to 14
-
15420632300 Axial Needle BearingAxial Needle Bearing
-
16420281306 Thrust Washer Set, MAG SideThrust Washer Set, MAG Side
-
17420281312 Thrust Washer Set, MAG SideThrust Washer Set, MAG Side
-
18420932825 Ball BearingBall Bearing
-
19420631610 O-RingO-Ring
-
20a420257676 Shifting Sleeve Kit. Includes 20a to 23Shifting Sleeve Kit. Includes 20a to 23
-
23420841771 Set Screw M6 X 8Set Screw M6 X 8
-
24420944584 Shim 0.5Shim 0.5
-
25420232785 Ball BearingBall Bearing
-
26a420247114 Distance Ring. Includes 26a to 26bDistance Ring. Includes 26a to 26b
-
26b420631610 O-RingO-Ring
-
27420611440 Bearing CoverBearing Cover
-
28420950087 Oil SealOil Seal
-
29420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
30420641228 Flanged Torx Screw M6 X 85Flanged Torx Screw M6 X 85
-
31420641258 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
32420251690 Cable ClampCable Clamp
-
33420641188 Flanged Torx Screw M8 X 35Flanged Torx Screw M8 X 35
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
N293550030 Grease, Super LubeGrease, Super Lube
-
P293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
