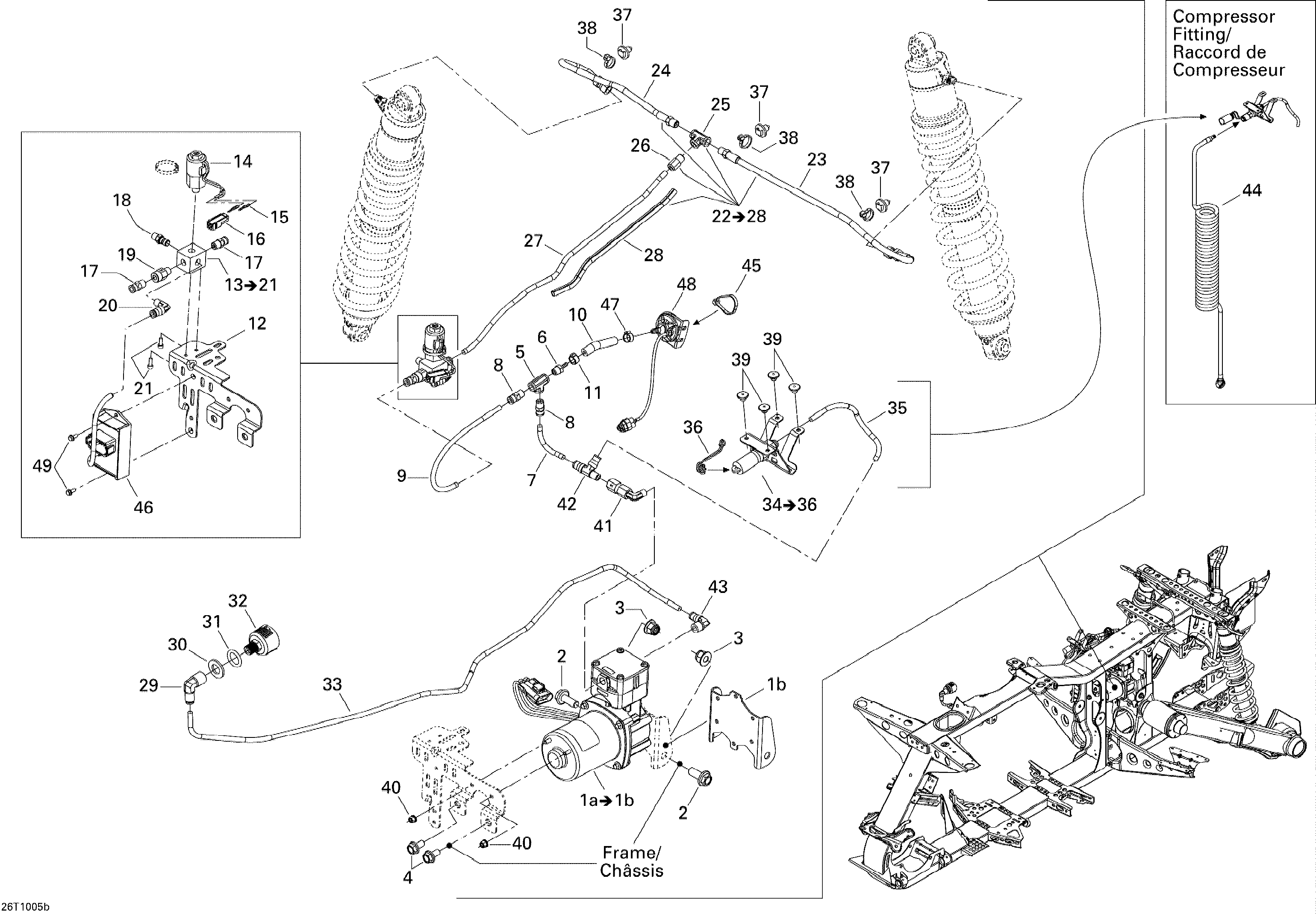

08- Rear Suspension 2 для BRP Outlander Max 800R EFI Ltd - 2010
-
№АртикулНазвание
-
1a706000745 Compressor. Includes 1a to 1bCompressor. Includes 1a to 1b
-
1b715900072 Compressor BracketCompressor Bracket
-
2207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
3233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
4207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
5706000806 T-FittingT-Fitting
-
6706000799 ConnectorConnector
-
7415129507 TubingTubing
-
8706000869 ConnectorConnector
-
9415129507 TubingTubing
-
10415129495 HoseHose
-
11293650207 Clamp OetikerClamp Oetiker
-
12706000778 Front Compressor SupportFront Compressor Support
-
13706000747 Air Manifold Ass'y. Includes 13 to 21Air Manifold Ass'y. Includes 13 to 21
-
14503189097 ValveValve
-
15515175232 Male TerminalMale Terminal
-
16515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
17706000869 ConnectorConnector
-
18706000678 Air ValveAir Valve
-
19706000860 Check ValveCheck Valve
-
20706000872 Elbow 90°Elbow 90°
-
21205041284 Socket Head Screw M4 X 12Socket Head Screw M4 X 12
-
22706000804 Pneumatic Hose Ass'y. Includes 22 to 28Pneumatic Hose Ass'y. Includes 22 to 28
-
25706000806 T-FittingT-Fitting
-
26706000869 ConnectorConnector
-
27415129507 TubingTubing
-
28409901700 Tubing 9 mmTubing 9 mm
-
29706000796 Elbow 90°Elbow 90°
-
30234071410 Flat Washer 14 mmFlat Washer 14 mm
-
32706000832 FilterFilter
-
33415129507 TubingTubing
-
34706000853 Bracket Ass'y. Includes 34 to 36Bracket Ass'y. Includes 34 to 36
-
35415129507 TubingTubing
-
36414811400 O-RingO-Ring
-
37293730018 Mount DartMount Dart
-
38293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
39390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
40233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
41706000852 FittingFitting
-
42706000795 T-FittingT-Fitting
-
43706000793 Elbow 90°Elbow 90°
-
44706000808 Auxiliary HoseAuxiliary Hose
-
45293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
46710001709 Air Suspension ModuleAir Suspension Module
-
47293650207 Clamp OetikerClamp Oetiker
-
48710001825 Air Suspension SensorAir Suspension Sensor
-
49210241080 Hex. Flanged Screw M4 X 10Hex. Flanged Screw M4 X 10
