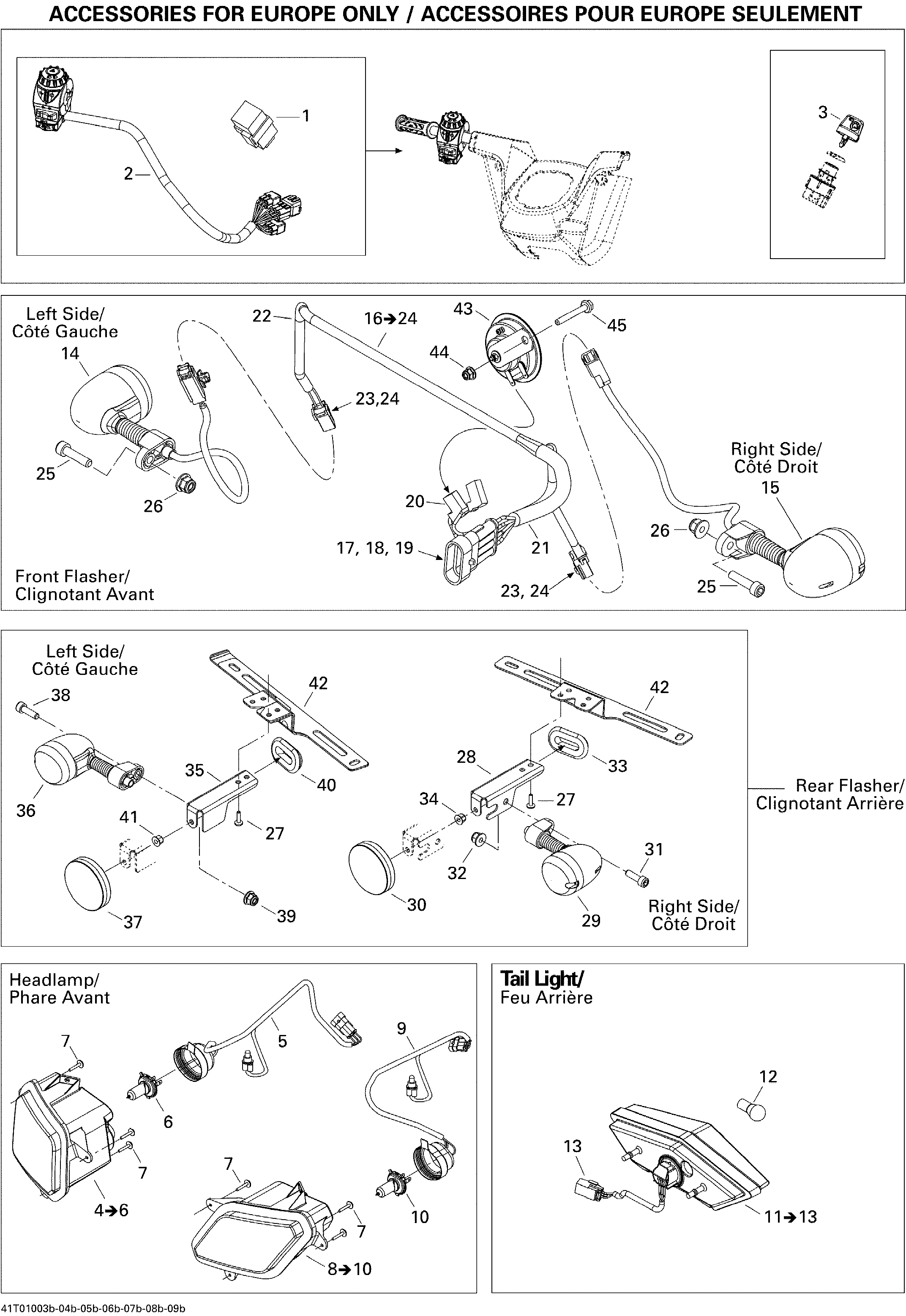

10- Electrical Accessories 2, Europe для BRP Outlander Max 800R EFI Ltd - 2010
-
№АртикулНазвание
-
1710001447 Flasher UnitFlasher Unit
-
2710001428 Multi function HandleMulti function Handle
-
3710000817 Black-Electronic KeyBlack-Electronic Key
-
4710000861 RH Headlamp. Includes 4 to 6RH Headlamp. Includes 4 to 6
-
5710000923 Headlamp HarnessHeadlamp Harness
-
6710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
7250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
8710000862 LH Headlamp. Includes 8 to 10LH Headlamp. Includes 8 to 10
-
9710000923 Headlamp HarnessHeadlamp Harness
-
10710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
11710001204 Tail Light Housing. Includes 11 to 13Tail Light Housing. Includes 11 to 13
-
12410504100 Tail Light BulbTail Light Bulb
-
13515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
14710001079 Flashing LightFlashing Light
-
15710001080 Flashing LightFlashing Light
-
16710001495 Front Harness Ass'y. Includes 16 to 24Front Harness Ass'y. Includes 16 to 24
-
17515175231 Female TerminalFemale Terminal
-
18409012900 Male TerminalMale Terminal
-
19710000576 Housing, 4circuitsHousing, 4circuits
-
20278001013 Wire SealWire Seal
-
21409010300 Female TerminalFemale Terminal
-
22515175442 Tubing 6 mmTubing 6 mm
-
23409901700 Tubing 9 mmTubing 9 mm
-
24515176296 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
25205062544 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
26233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
28710001329 BracketBracket
-
29710001079 Flashing LightFlashing Light
-
30705002408 Reflector, RedReflector, Red
-
31205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
32233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
33705003668 Oblong GrommetOblong Grommet
-
34233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
35710001330 BracketBracket
-
36710001080 Flashing LightFlashing Light
-
37705002408 Reflector, RedReflector, Red
-
38205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
39233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
40705003668 Oblong GrommetOblong Grommet
-
41233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
42710001241 BracketBracket
-
43710000983 HornHorn
-
44233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
45207664544 Flanged Hex. Screw M6 X 45Flanged Hex. Screw M6 X 45
