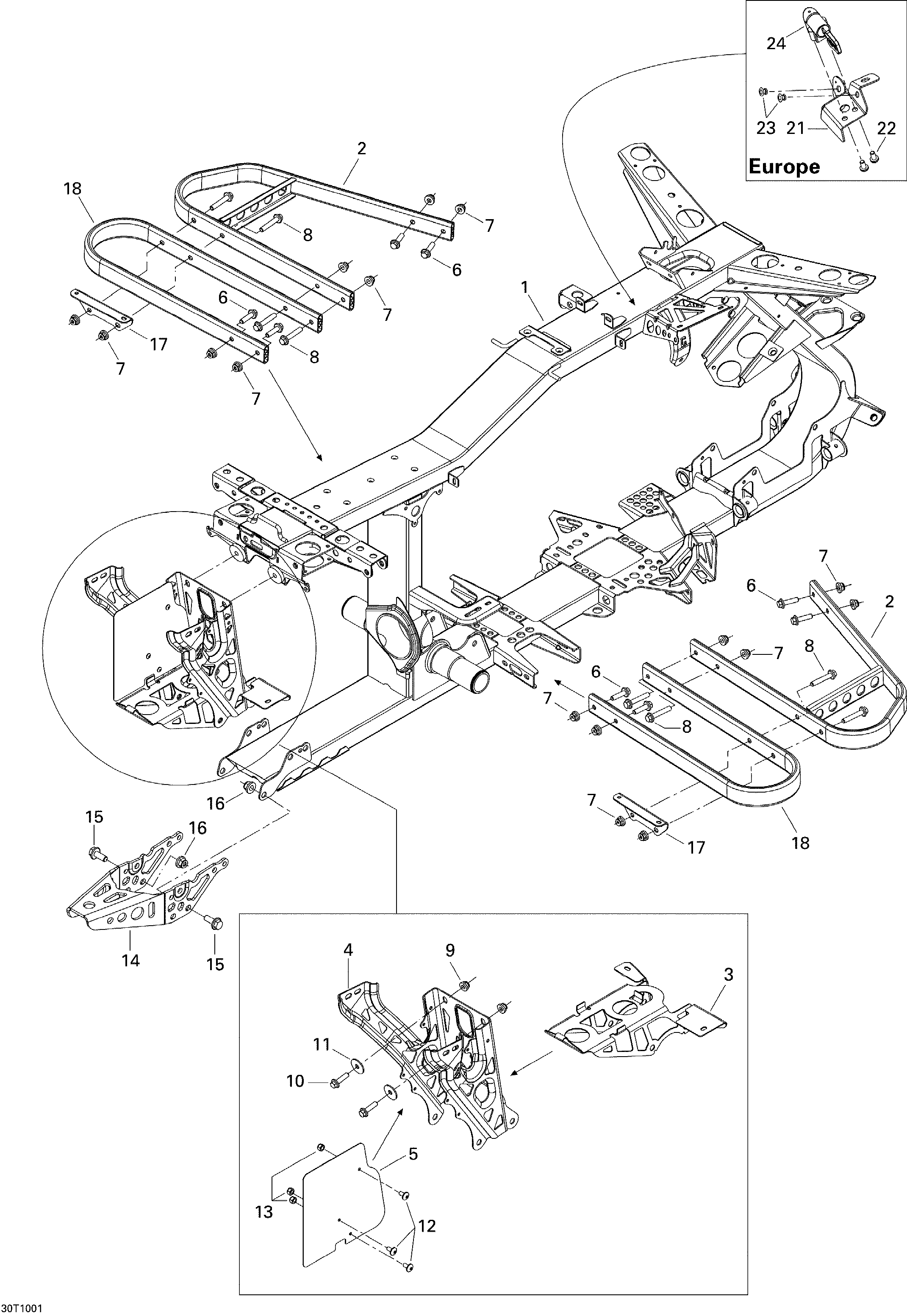

09- Frame для BRP Outlander 400 EFI - 2010

№

Артикул

Название
1

705202052 Frame, Black

Frame, Black

0 ₽
2

705202081 Footboard Ass'y

Footboard Ass'y

29 510 ₽
3

705201942 Battery Support Base

Battery Support Base

3 520 ₽
4

705202142 Rear Battery Support, Black

Rear Battery Support, Black

4 930 ₽
5

705200936 Heat Shield

Heat Shield

0 ₽
6

207683044 Hex. Flanged Screw M8 X 30

Hex. Flanged Screw M8 X 30

600 ₽
7

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8

490 ₽
8

207684544 Hex. Flanged Screw M8 X 45

Hex. Flanged Screw M8 X 45

1 330 ₽
9

233281416 Elastic Flanged Nut M8

Elastic Flanged Nut M8

540 ₽
10

207683044 Hex. Flanged Screw M8 X 30

Hex. Flanged Screw M8 X 30

600 ₽
11

250200073 Flat Washer

Flat Washer

200 ₽
12

250000127 Torx Screw M4 X 8

Torx Screw M4 X 8

110 ₽
13

232541484 Elastic Stop Nut M4

Elastic Stop Nut M4

70 ₽
14

715000286 Trailer Hook

Trailer Hook

3 980 ₽
15

207602544 Hex. Flanged Screw M10 X 25

Hex. Flanged Screw M10 X 25

610 ₽
16

233201416 Hex. Flanged Elastic Nut M10

Hex. Flanged Elastic Nut M10

820 ₽
17

705201535 Support

Support

0 ₽
18

705201993 Rear Footrest

Rear Footrest

16 770 ₽
21

705201707 Lock Support. Europe

Lock Support. Europe

2 820 ₽
22

205951046 Screw Socket Head, M5 X 10. Europe

Screw Socket Head, M5 X 10. Europe

1 290 ₽
23

390402400 Pop Rivet 3/16''. Europe

Pop Rivet 3/16''. Europe

120 ₽
24

707000666 Lock. Europe

Lock. Europe

7 700 ₽
