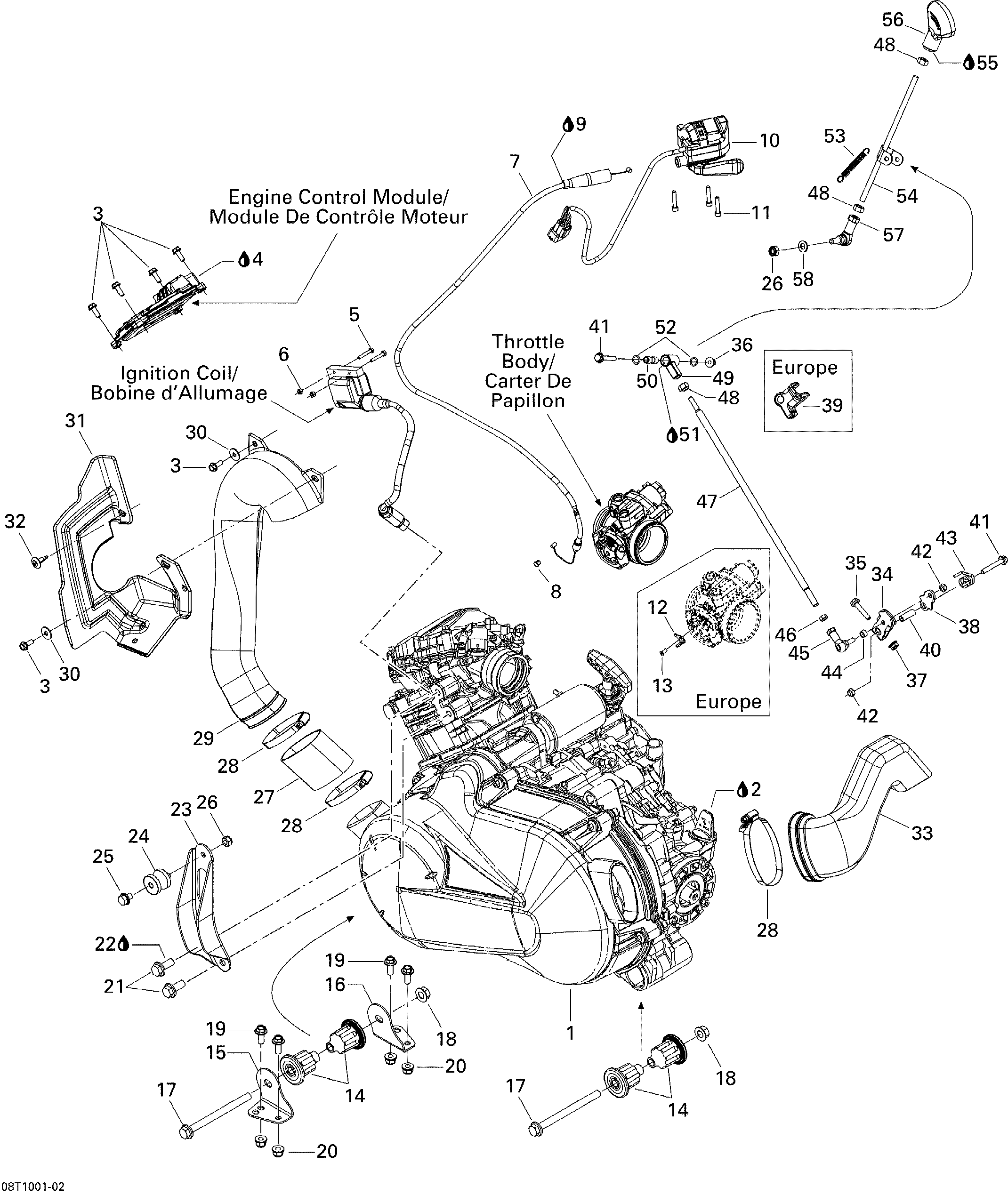

01- Engine And Engine Support для BRP Outlander 400 EFI - 2010

  • №
    Артикул
    Название
  • 1
    420040030 Engine Long Block, 400 EFI
    Engine Long Block, 400 EFI
  • 3
    210261680 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 4
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 5
    207142544 Hex. Screw M4 X 25
    Hex. Screw M4 X 25
  • 6
    232541414 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 7
    707000539 Throttle Cable
    Throttle Cable
  • 8
    707000434 Cable Guide
    Cable Guide
  • 9
    293600041 Cable Lubricant, 400 g
    Cable Lubricant, 400 g
  • 10
    707000595 Throttle Handle
    Throttle Handle
  • 11
    205052588 Socket Head Screw M5 X 25
    Socket Head Screw M5 X 25
  • 12
    707000658 Speed Limiter. Europe
    Speed Limiter. Europe
  • 13
    250000332 Screw M4 X 8. Europe
    Screw M4 X 8. Europe
  • 14
    707000655 Anti-vibration Pad
    Anti-vibration Pad
  • 15
    707000802 Engine Bracket
    Engine Bracket
  • 16
    707000803 Engine Bracket
    Engine Bracket
  • 17
    230602546 Hex. Flanged Screw M10 X 125
    Hex. Flanged Screw M10 X 125
  • 18
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 19
    207682044 Hex. Flanged Screw M8 X 20
    Hex. Flanged Screw M8 X 20
  • 20
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 21
    207602544 Hex. Flanged Screw M10 X 25
    Hex. Flanged Screw M10 X 25
  • 22
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 23
    707000224 Upper Engine Bracket
    Upper Engine Bracket
  • 24
    274000839 Rubber Isolator
    Rubber Isolator
  • 25
    207581046 Flanged Screw M8 x 10 (Scotch Grip)
    Flanged Screw M8 x 10 (Scotch Grip)
  • 26
    232581414 Hex. Elastic Nut M8
    Hex. Elastic Nut M8
  • 27
    707000719 Flexible Adaptor
    Flexible Adaptor
  • 28
    293650206 Clamp
    Clamp
  • 29
    707000540 Air Intake
    Air Intake
  • 30
    250200082 Flat Washer
    Flat Washer
  • 31
    707000697 CVT Water Deflector
    CVT Water Deflector
  • 32
    414745900 Tuflock Phillips Plastic Screw
    Tuflock Phillips Plastic Screw
  • 33
    707000718 Air Outlet
    Air Outlet
  • 34
    707000503 Lever
    Lever
  • 35
    207663044 Hex. Flanged Screw M6 X 30
    Hex. Flanged Screw M6 X 30
  • 36
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 37
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 38
    707000507 Pivot Plate
    Pivot Plate
  • 39
    707000676 Pivot. Europe
    Pivot. Europe
  • 40
    293900079 Bushing
    Bushing
  • 41
    207664044 Hex. Flanged Screw M6 X 40
    Hex. Flanged Screw M6 X 40
  • 42
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 43
    707000310 Spring
    Spring
  • 44
    293900029 Bushing
    Bushing
  • 45
    707000545 LH Ball Joint
    LH Ball Joint
  • 46
    232066414 LH Hex. Nut M6
    LH Hex. Nut M6
  • 47
    707000567 Threaded Rod
    Threaded Rod
  • 48
    232081414 Hex. Nut M8
    Hex. Nut M8
  • 49
    707000568 Pivot. All Except Europe
    Pivot. All Except Europe
  • 50
    293900075 Bushing
    Bushing
  • 51
    293550010 Synthetic Grease, 400 G
    Synthetic Grease, 400 G
  • 52
    414583300 O-Ring
    O-Ring
  • 53
    707000569 Spring
    Spring
  • 54
    707000786 Lever Arm
    Lever Arm
  • 55
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 56
    707000284 Lever Handle
    Lever Handle
  • 57
    707000546 RH Ball Joint
    RH Ball Joint
  • 58
    234081410 Flat Washer 8 mm
    Flat Washer 8 mm
