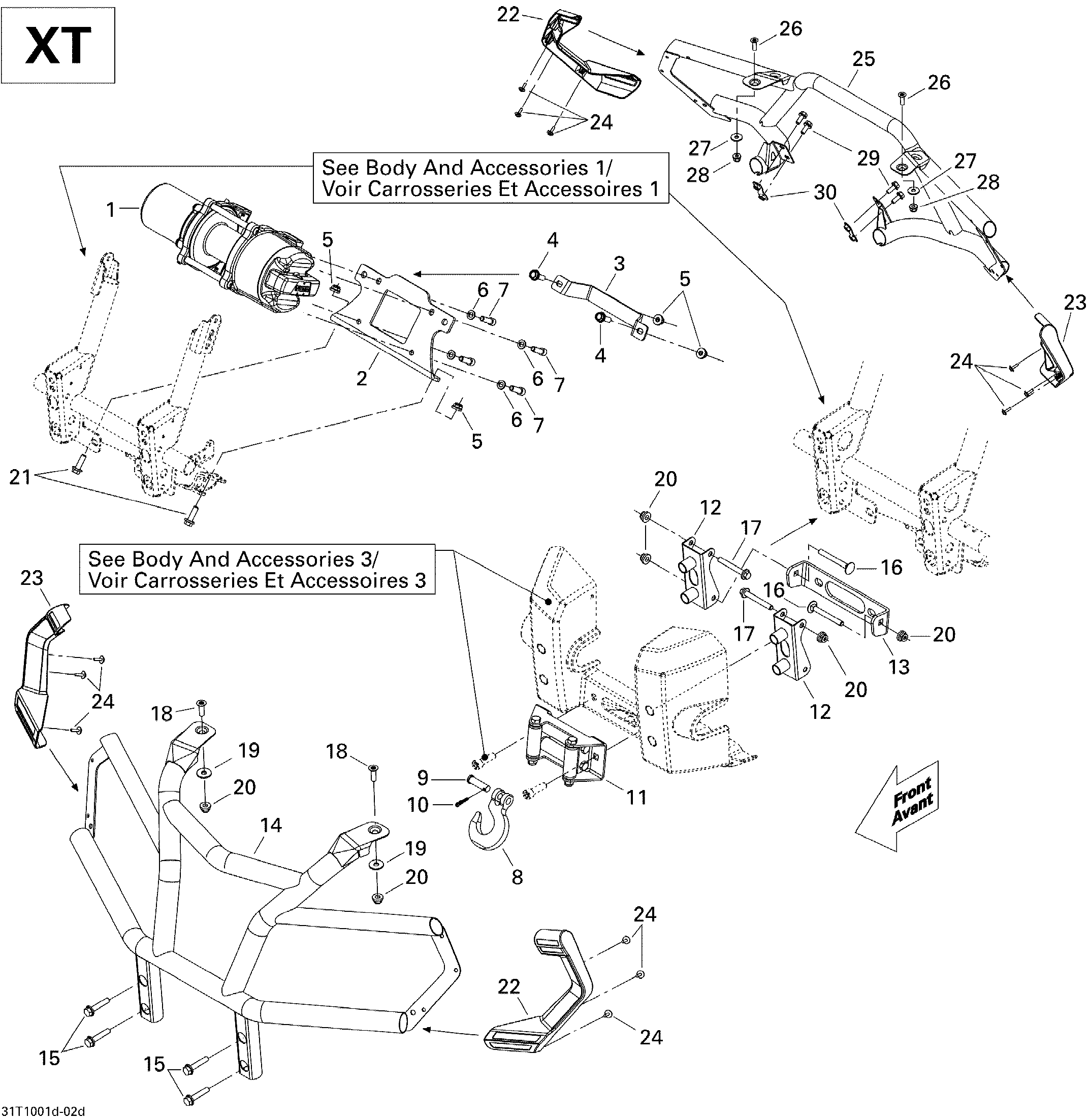

09- Body And Accessories XT для BRP Outlander 400 EFI - 2010
-
№АртикулНазвание
-
1705002505 WinchWinch
-
1705003296 Winch. EuropeWinch. Europe
-
2705002816 Mounting PlateMounting Plate
-
3705001460 Winch Bracket, BlackWinch Bracket, Black
-
4207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
5233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
6234181401 Lock Washer 8 mmLock Washer 8 mm
-
7205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
8705002329 HookHook
-
9250400021 Clevis PinClevis Pin
-
10250400022 Cotter PinCotter Pin
-
11715000011 Winch RollerWinch Roller
-
12705003828 Bumper BracketBumper Bracket
-
13705003649 Winch BracketWinch Bracket
-
14705002812 Front BumberFront Bumber
-
15207584044 Hex. Flanged Screw M8x40, Scotch GripHex. Flanged Screw M8x40, Scotch Grip
-
16207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
17207686044 Hex. Flanged Screw M8 x 60Hex. Flanged Screw M8 x 60
-
18235482584 Torx Screw M8 X 25Torx Screw M8 X 25
-
19234082410 Flat Washer 8 mmFlat Washer 8 mm
-
20233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
21207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
22705002802 LH Front CapLH Front Cap
-
23705002803 RH Front CapRH Front Cap
-
24250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
25705002806 Rear BumberRear Bumber
-
26235482584 Torx Screw M8 X 25Torx Screw M8 X 25
-
27234082410 Flat Washer 8 mmFlat Washer 8 mm
-
28233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
29207582084 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
30705003796 Link PlateLink Plate
