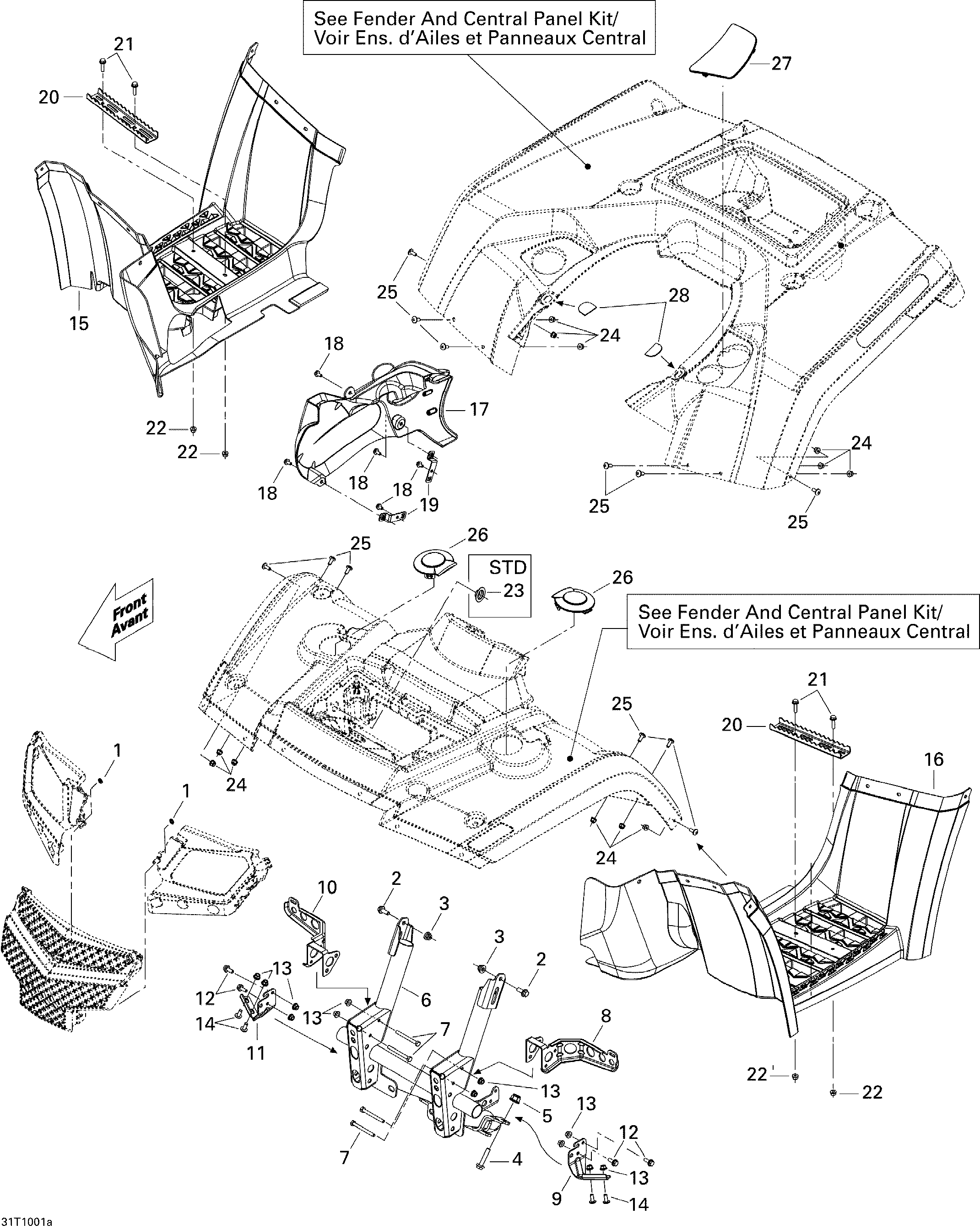

09- Body And Accessories 1 для BRP Outlander 400 EFI - 2010
-
№АртикулНазвание
-
1732610072 Push NutPush Nut
-
2207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
3233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
4207603044 Hex. Flanged Screw M10 X 30Hex. Flanged Screw M10 X 30
-
5233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
6705003654 Front BumperFront Bumper
-
7207066044 Hex. Screw M6 X 60Hex. Screw M6 X 60
-
8705002925 LH Facia SupportLH Facia Support
-
9705003037 LH Lower Facia SupportLH Lower Facia Support
-
10705002926 RH Facia SupportRH Facia Support
-
11705003039 RH Lower Facia SupportRH Lower Facia Support
-
12207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
13233261414 Hex. Flanged Elastic Nut M6. EuropeHex. Flanged Elastic Nut M6. Europe
-
14250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
15705002485 RH FootboardRH Footboard
-
16705003632 LH FootboardLH Footboard
-
17705003837 Engine CoverEngine Cover
-
18210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
19705002666 Engine Cover SupportEngine Cover Support
-
20705003648 FootrestFootrest
-
21250000435 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
22233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
23293000103 Plastic Cap. STDPlastic Cap. STD
-
24233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
25250000261 Torx Screw M6 X 16Torx Screw M6 X 16
-
26705001999 Front CapFront Cap
-
27705001910 LH Cap, BlackLH Cap, Black
-
28705002219 Rubber PadRubber Pad
