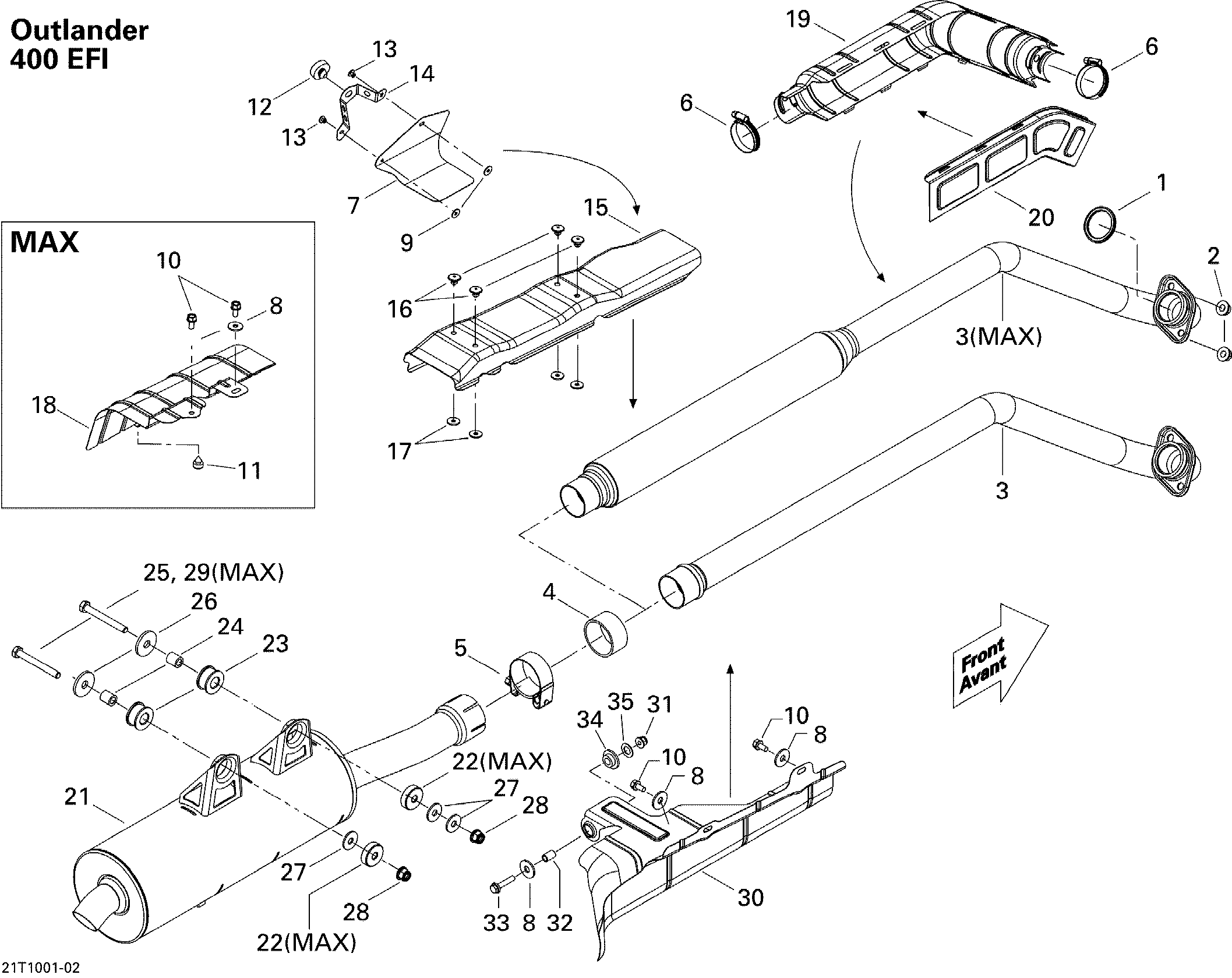

01- Exhaust System для BRP Outlander 400 EFI - 2010
-
№АртикулНазвание
-
1707600317 GasketGasket
-
2233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
3707600453 Tuned PipeTuned Pipe
-
4707600430 Pipe GasketPipe Gasket
-
5293650177 Norma Gear ClampNorma Gear Clamp
-
6293650098 Norma Gear ClampNorma Gear Clamp
-
7707600618 Heat ShieldHeat Shield
-
8391302000 Flat WasherFlat Washer
-
9391301000 WasherWasher
-
10210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
12708000506 Rubber StopperRubber Stopper
-
13293150122 Pop Rivet 1/8''Pop Rivet 1/8''
-
14707600581 Panel SupportPanel Support
-
15707600700 Heat ShieldHeat Shield
-
16390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
17517124300 WasherWasher
-
19707600462 Heat Base ShieldHeat Base Shield
-
20707600457 Heat Shield CoverHeat Shield Cover
-
21707600574 MufflerMuffler
-
21707600597 Muffler. EuropeMuffler. Europe
-
23707600701 RubberRubber
-
24293900082 BushingBushing
-
25207687044 Hex. Flanged Screw M8 X 70Hex. Flanged Screw M8 X 70
-
26503032900 WasherWasher
-
27234082410 Flat Washer 8 mmFlat Washer 8 mm
-
28233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
30707600621 ProtectorProtector
-
31233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
32293900078 SleeveSleeve
-
33207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
34709200115 BushingBushing
-
35503175800 WasherWasher
