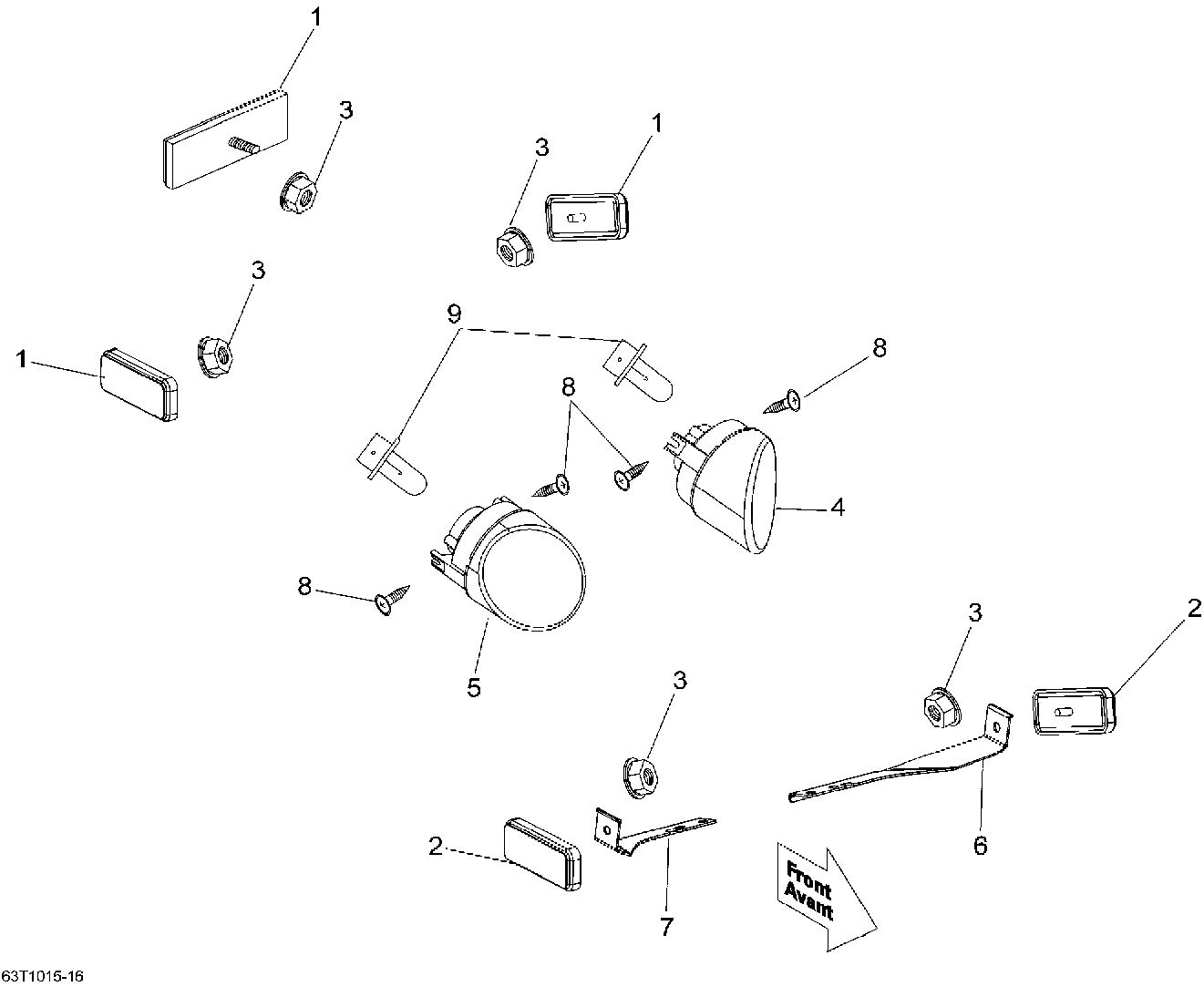

10- Headlights And Reflectors для BRP DS 70 - 2010
-
№АртикулНазвание
-
1V64501MAA000LL Reflector, RedReflector, Red
-
2V64502DGF030LL Reflector, YellowReflector, Yellow
-
3232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4V80112DGF050LL LH HeadlightLH Headlight
-
5V80212DGF050LL RH HeadlightRH Headlight
-
6V50292DGF020 LH Front Reflector BracketLH Front Reflector Bracket
-
7V50295DGF010 RH Front Reflector BracketRH Front Reflector Bracket
-
8V960000401201L Round Head BoltRound Head Bolt
-
9V33100DGF000 LightLight
