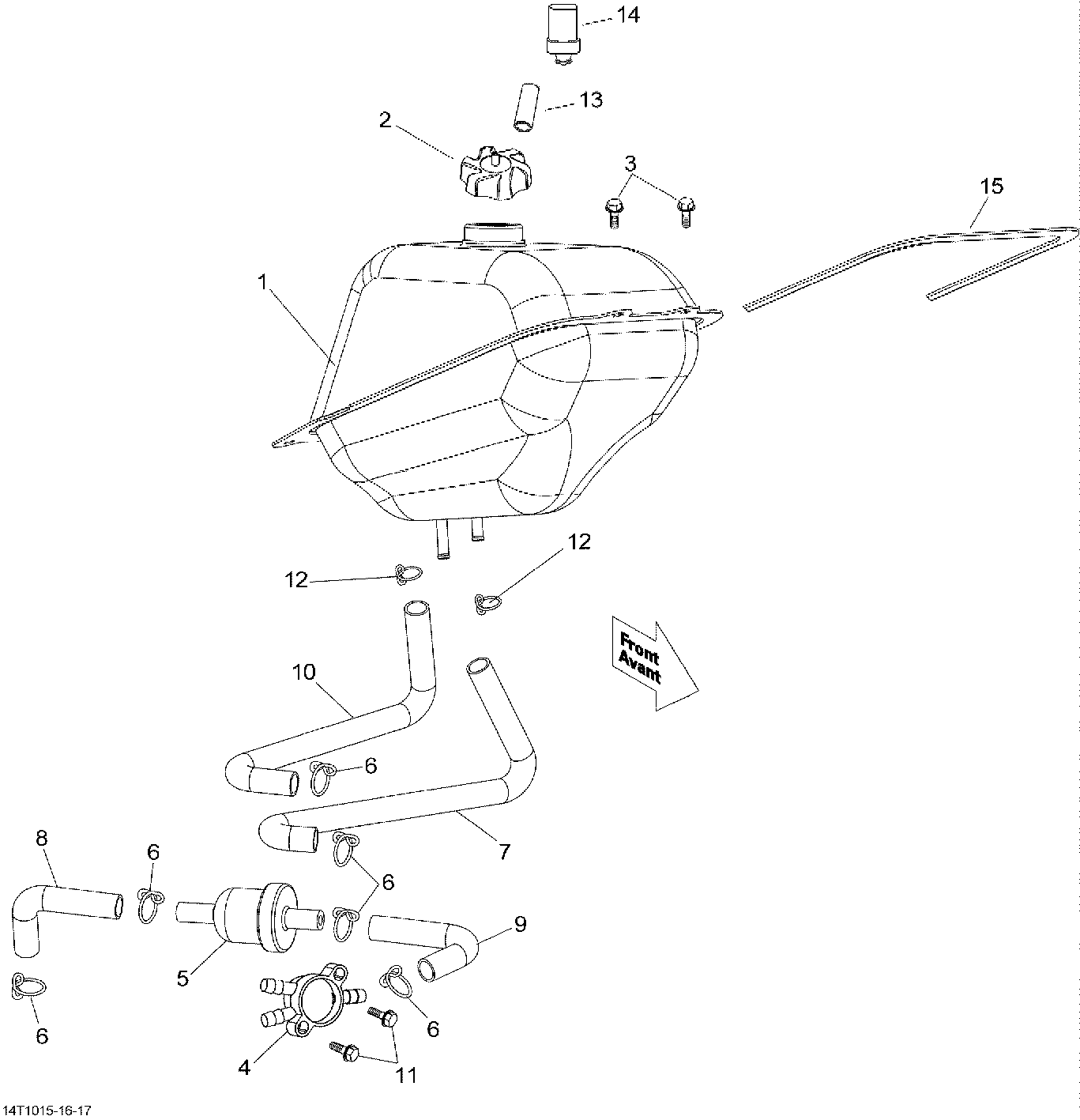

02- Fuel Tank для BRP DS 70 - 2010
-
№АртикулНазвание
-
1V17500DGF070 Fuel TankFuel Tank
-
2V17620DGF080 Fuel Tank CapFuel Tank Cap
-
3207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
4V16950DGF010 Fuel ValveFuel Valve
-
5V16910MAA000 Fuel FilterFuel Filter
-
6V17209DGF020 Hose ClampHose Clamp
-
7V17684DGF010 Fuel TubeFuel Tube
-
8V17682DGF020 Fuel TubeFuel Tube
-
9V17683DGF000 Fuel TubeFuel Tube
-
10V17685DGF010 Fuel TubeFuel Tube
-
11V935000502201 Hexagonal Flanged BoltHexagonal Flanged Bolt
-
12V17210DGF000 Hose ClampHose Clamp
-
13V17686DGF040 Fuel Vent TubeFuel Vent Tube
-
14V43351DGF010LL Vent PipeVent Pipe
-
15V81149MEM010 Waterproof StripWaterproof Strip
