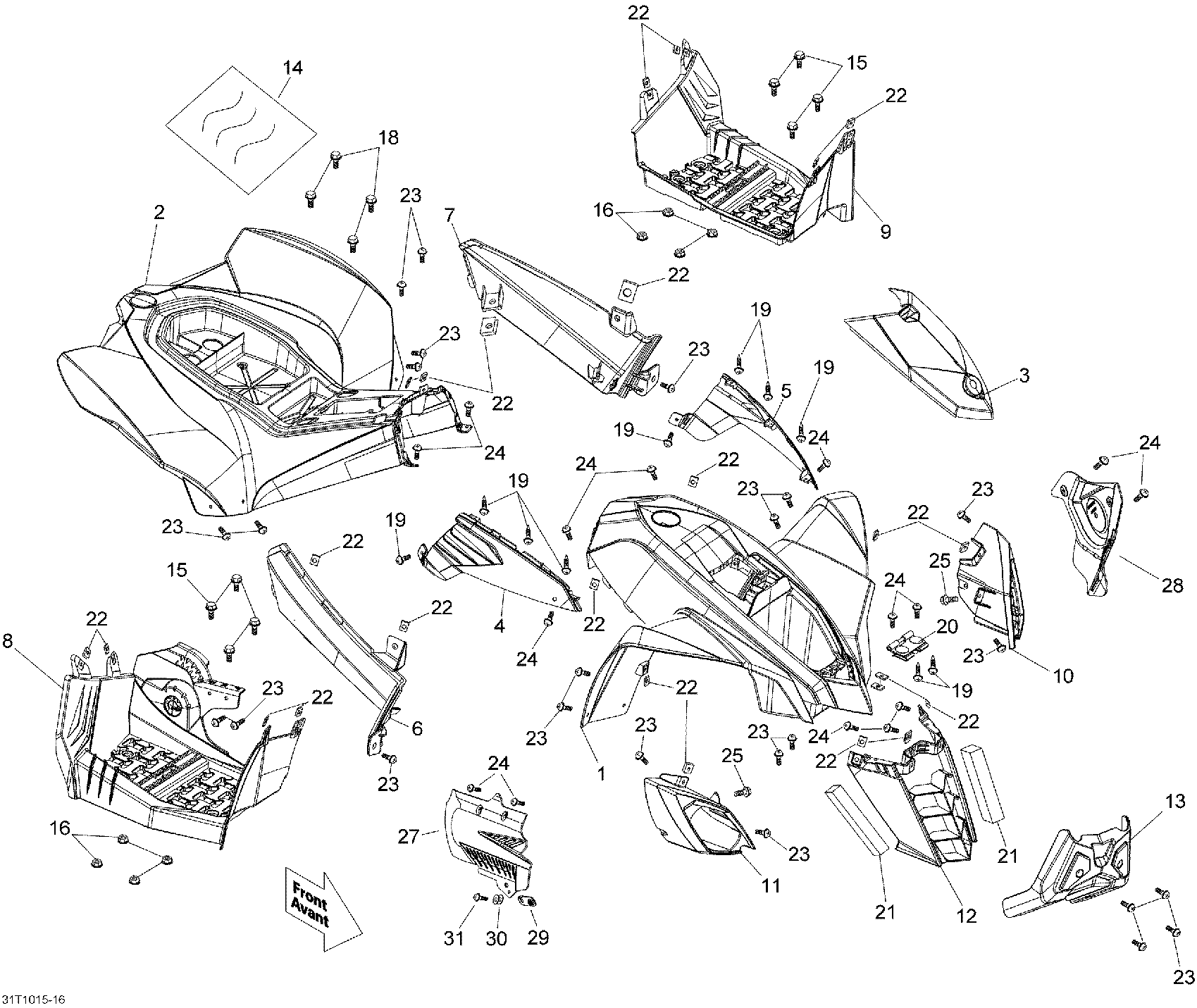

09- Body And Accessories для BRP DS 70 - 2010
-
№АртикулНазвание
-
1V82010DGE000LL Front Fender, Yellow. Yellow ModelFront Fender, Yellow. Yellow Model
-
1V84010DGE000 Front Fender, Black. Black ModelFront Fender, Black. Black Model
-
2V82013DGF000LL Rear Fender, Yellow. Yellow ModelRear Fender, Yellow. Yellow Model
-
2V85010DGF000 Rear Fender, Black. Black ModelRear Fender, Black. Black Model
-
3V82103DGE000LL Cargo CoverCargo Cover
-
4V80104DGF000B RH Front Side PanelRH Front Side Panel
-
5V80105DGF000B LH Front Side PanelLH Front Side Panel
-
6V80116DGF000BK RH Rear Side PanelRH Rear Side Panel
-
7V80117DGF000BK LH Rear Side PanelLH Rear Side Panel
-
8V80106DGF020BKLL RH FootrestRH Footrest
-
9V80107DGF020BKLL LH FootrestLH Footrest
-
10V80110DGF020BK LH Headlamp HousingLH Headlamp Housing
-
11V80111DGF020BK RH Headlamp HousingRH Headlamp Housing
-
12V80114DGF000BK Front GrillFront Grill
-
13V80113DGF010BKLL Skid PlateSkid Plate
-
14V18450DGF000LL Heat Insulation SheetHeat Insulation Sheet
-
15207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
16232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
18207661244 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
19V9309304012LL Tapping ScrewTapping Screw
-
20V50262DGF030 Cargo Cover HingeCargo Cover Hinge
-
21V81146DGF020 Waterproof StripWaterproof Strip
-
22V9034506000KLL Spring NutSpring Nut
-
23V930000601501 Round Head ScrewRound Head Screw
-
24V930000601201 Round Head ScrewRound Head Screw
-
25V9200006017 Round Head ScrewRound Head Screw
-
27V80118DGF00BK RH Cover. Black ModelRH Cover. Black Model
-
28V80119DGF00BK LH Cover. Black ModelLH Cover. Black Model
-
29V50302DGF000 Bracket. Black ModelBracket. Black Model
-
30V15235DGF030 Rubber Cushion. Black ModelRubber Cushion. Black Model
-
31V9300006020 Round Haed Bolt M6 X 20. Black ModelRound Haed Bolt M6 X 20. Black Model
