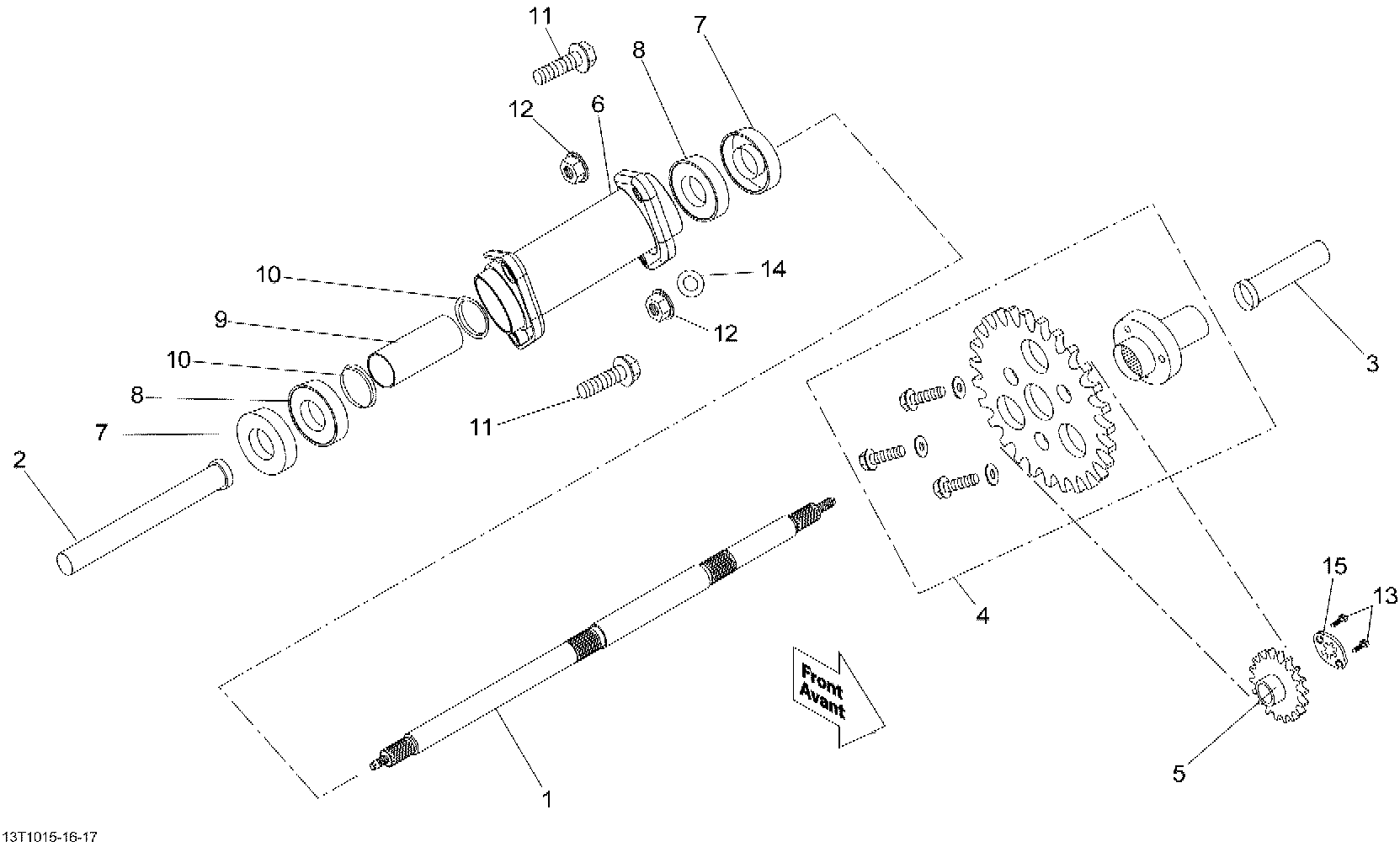

08- Drive System, Rear для BRP DS 70 - 2010
-
№АртикулНазвание
-
1V23511MAA000 Rear Wheel AxleRear Wheel Axle
-
2V44160MAA010BK LH Spacer CollarLH Spacer Collar
-
3V44150MAA000BK RH Spacer CollarRH Spacer Collar
-
4V15240DGE000LL Cam Chain Sprocket 50TCam Chain Sprocket 50T
-
5V15232MAA020 Cam Chain Sprocket 15TCam Chain Sprocket 15T
-
6V52350MAA100BK Rear Wheel Axle Seat Ass'yRear Wheel Axle Seat Ass'y
-
7V91203MAA000 Oil SealOil Seal
-
8A961006006ZZ Radial Ball Bearing, 6006ZZRadial Ball Bearing, 6006ZZ
-
9V44620MAA000 SpacerSpacer
-
10V51312MAA000 SpacerSpacer
-
11V960001202801 Hexagonal Flanged BoltHexagonal Flanged Bolt
-
12A9035012000 Hexagonal Nut M12Hexagonal Nut M12
-
13V9200006010 ScrewScrew
-
14V941011326020 WasherWasher
-
15V128114DM00 Fixing PlateFixing Plate
