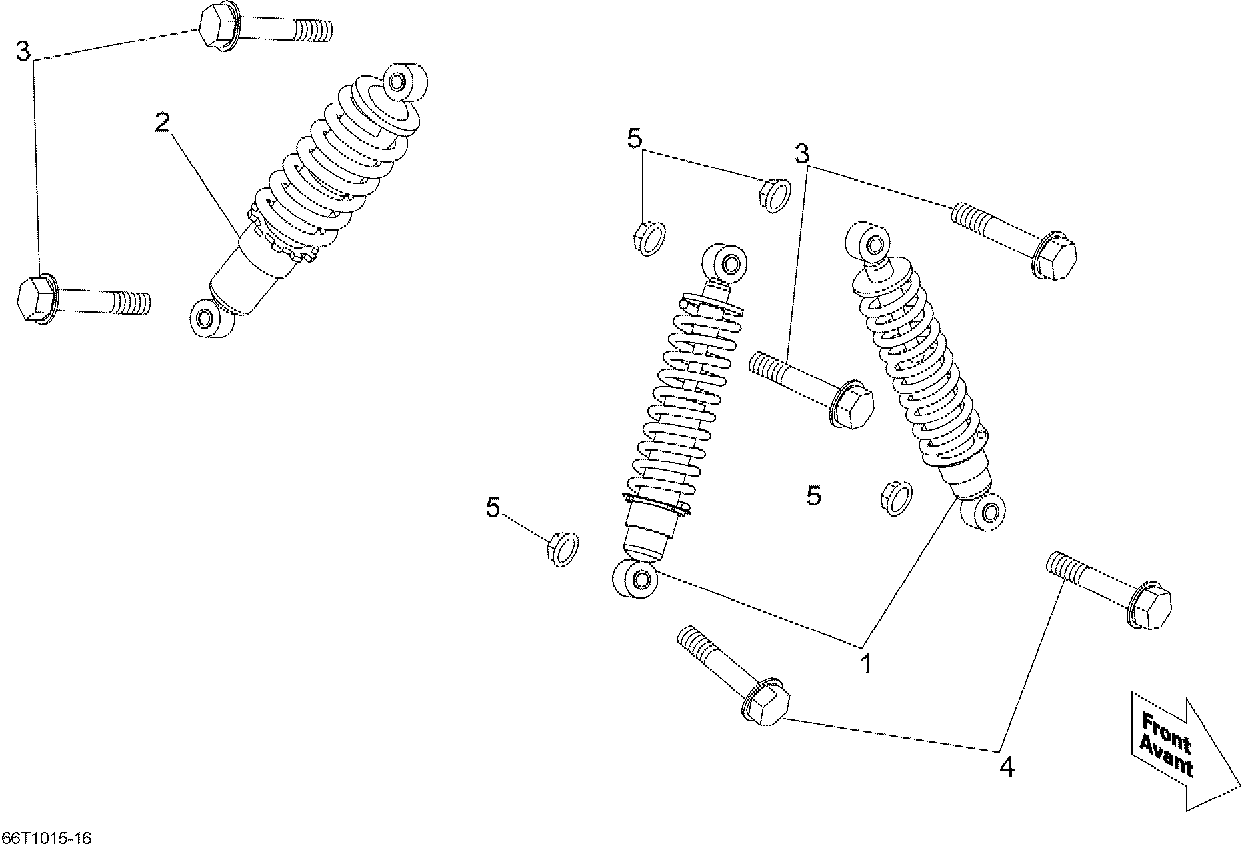

07- Shocks для BRP DS 70 - 2010
-
№АртикулНазвание
-
1V52500DGF040YELL Shock Absorber FrontShock Absorber Front
-
2V52400DGF030YELL Shock Absorber RearShock Absorber Rear
-
3V9600010040LL Hexagonal Flanged BoltHexagonal Flanged Bolt
-
4V920001004001L Hexagonal Bolt M10 X 40Hexagonal Bolt M10 X 40
-
5232501416 Elastic Flanged Nut M10Elastic Flanged Nut M10
