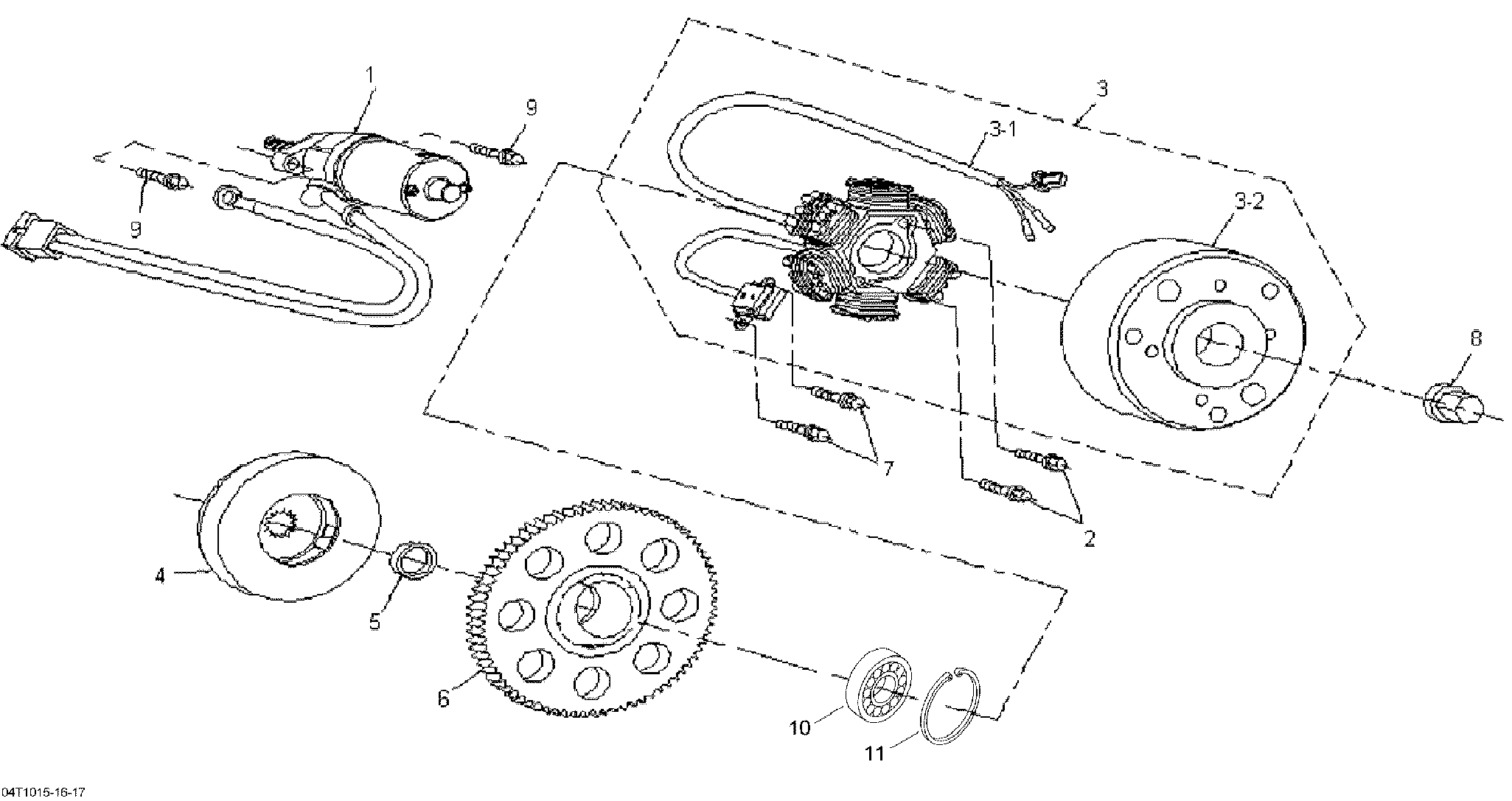

03- Magneto And Electric Starter для BRP DS 70 - 2010
-
№АртикулНазвание
-
1V31200DGF020 StarterStarter
-
2V9200005010 Hexagonal ScrewHexagonal Screw
-
3V31100CJF010 Generator Ass'yGenerator Ass'y
-
4V28410CJF000 Starting Clutch Assy.Starting Clutch Assy.
-
5V28251CJF020 CollarCollar
-
6V28220CJF000 Starting GearStarting Gear
-
7V9600106018 Hexagonal Flange ScrewHexagonal Flange Screw
-
8A9405012000 Hex. Flanged Nut With Serration M12Hex. Flanged Nut With Serration M12
-
9207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
10V961006003ZZ Ball BearingBall Bearing
-
11V9452035000 CirclipCirclip
