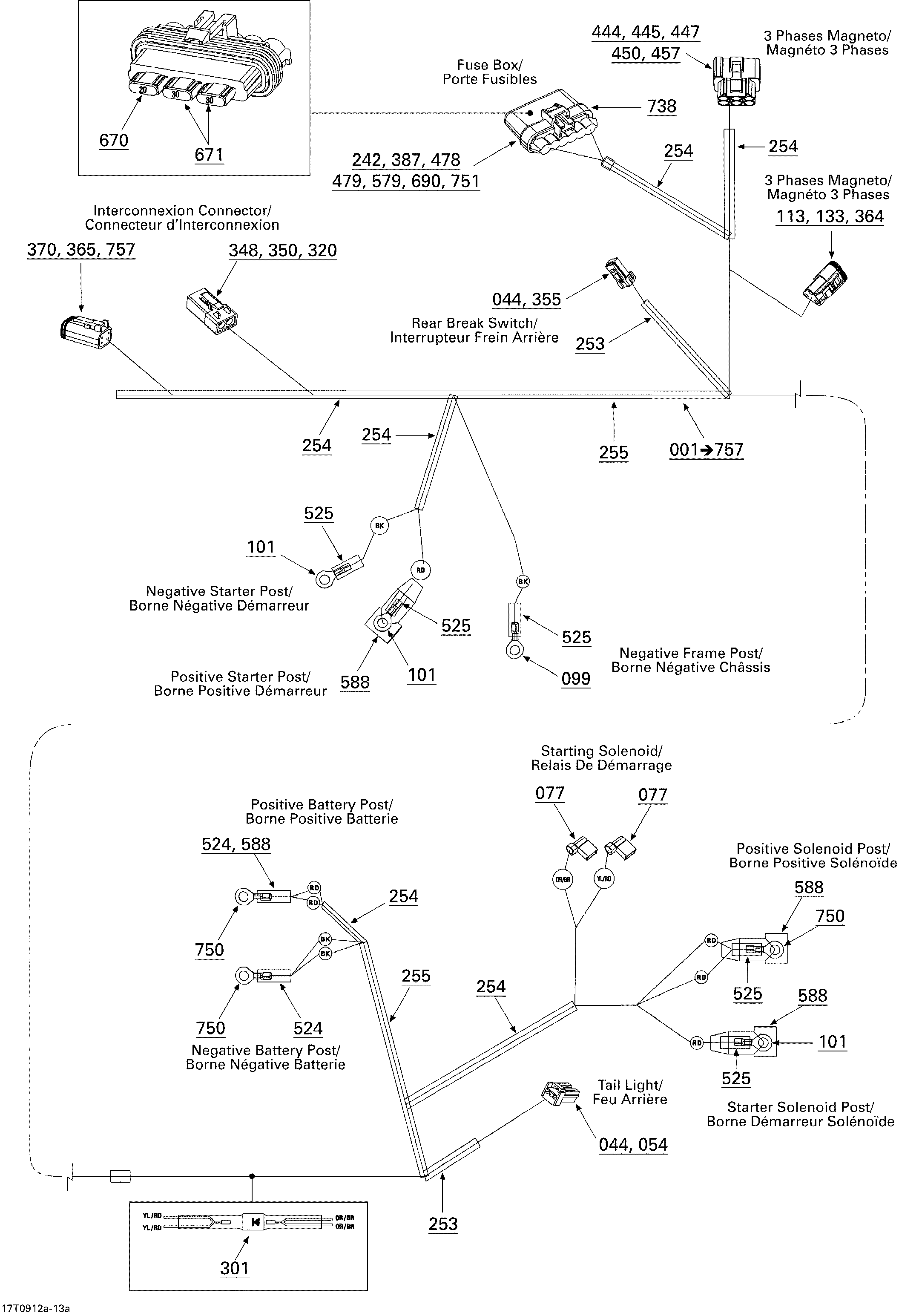

10- Electrical Harness, Rear Section для BRP DS 450 Xxc, Xmx EFI - 2009

‹-+›
  • №
    Артикул
    Название
  • 1
    710001551 Main Harness, Rear. Includes 1 to 757
    Main Harness, Rear. Includes 1 to 757
  • 44
    515175231 Female Terminal
    Female Terminal
  • 54
    515175495 Female Housing, 3 Circuits
    Female Housing, 3 Circuits
  • 77
    409010300 Female Terminal
    Female Terminal
  • 99
    278000992 Open Barrel
    Open Barrel
  • 101
    278001392 Open Barrel
    Open Barrel
  • 113
    278001661 Female Terminal
    Female Terminal
  • 133
    409207200 (Female) Secondary Lock (3 Circuits) (Deutsch)
    (Female) Secondary Lock (3 Circuits) (Deutsch)
  • 242
    278000218 Wire Seal
    Wire Seal
  • 253
    515175442 Tubing 6 mm
    Tubing 6 mm
  • 254
    409901700 Tubing 9 mm
    Tubing 9 mm
  • 255
    409901800 Tubing 13 mm
    Tubing 13 mm
  • 301
    409012700 Diode
    Diode
  • 320
    515175567 Female Terminal
    Female Terminal
  • 348
    278001673 Female Terminal Housing, 2 Circuits
    Female Terminal Housing, 2 Circuits
  • 350
    278001671 Female Lock, 2 Circuits
    Female Lock, 2 Circuits
  • 355
    515175658 Female Housing, 2 Circuits
    Female Housing, 2 Circuits
  • 364
    515175671 Female Terminal Housing, 3 Circuits
    Female Terminal Housing, 3 Circuits
  • 365
    515175672 Male Housing, 4 Circuits
    Male Housing, 4 Circuits
  • 370
    515175677 Male Wedge, 4 Circuits
    Male Wedge, 4 Circuits
  • 387
    293550004 Dielectric Grease, 150 g
    Dielectric Grease, 150 g
  • 444
    710000336 Male Terminal Housing, 6 Circuits
    Male Terminal Housing, 6 Circuits
  • 445
    710000337 Joint Seal
    Joint Seal
  • 447
    710000339 Secondary Lock
    Secondary Lock
  • 450
    710000343 Cap
    Cap
  • 457
    710000356 Female Terminal
    Female Terminal
  • 478
    710000888 Housing, 6 Circuits
    Housing, 6 Circuits
  • 479
    710000889 Lock
    Lock
  • 524
    512059668 Shrink Tubing
    Shrink Tubing
  • 525
    710000482 Shrink Tubing
    Shrink Tubing
  • 579
    710000504 Wire Seal
    Wire Seal
  • 588
    710000526 Protector Cap
    Protector Cap
  • 670
    710000746 Little Fuse, 20 Amperes
    Little Fuse, 20 Amperes
  • 671
    710000747 Little Fuse, 30 Amperes
    Little Fuse, 30 Amperes
  • 690
    710000890 Female Terminal
    Female Terminal
  • 738
    710000897 Cover
    Cover
  • 750
    710000913 Terminal
    Terminal
  • 751
    710000918 Female Terminal
    Female Terminal
  • 757
    278000632 Female Terminal
    Female Terminal
