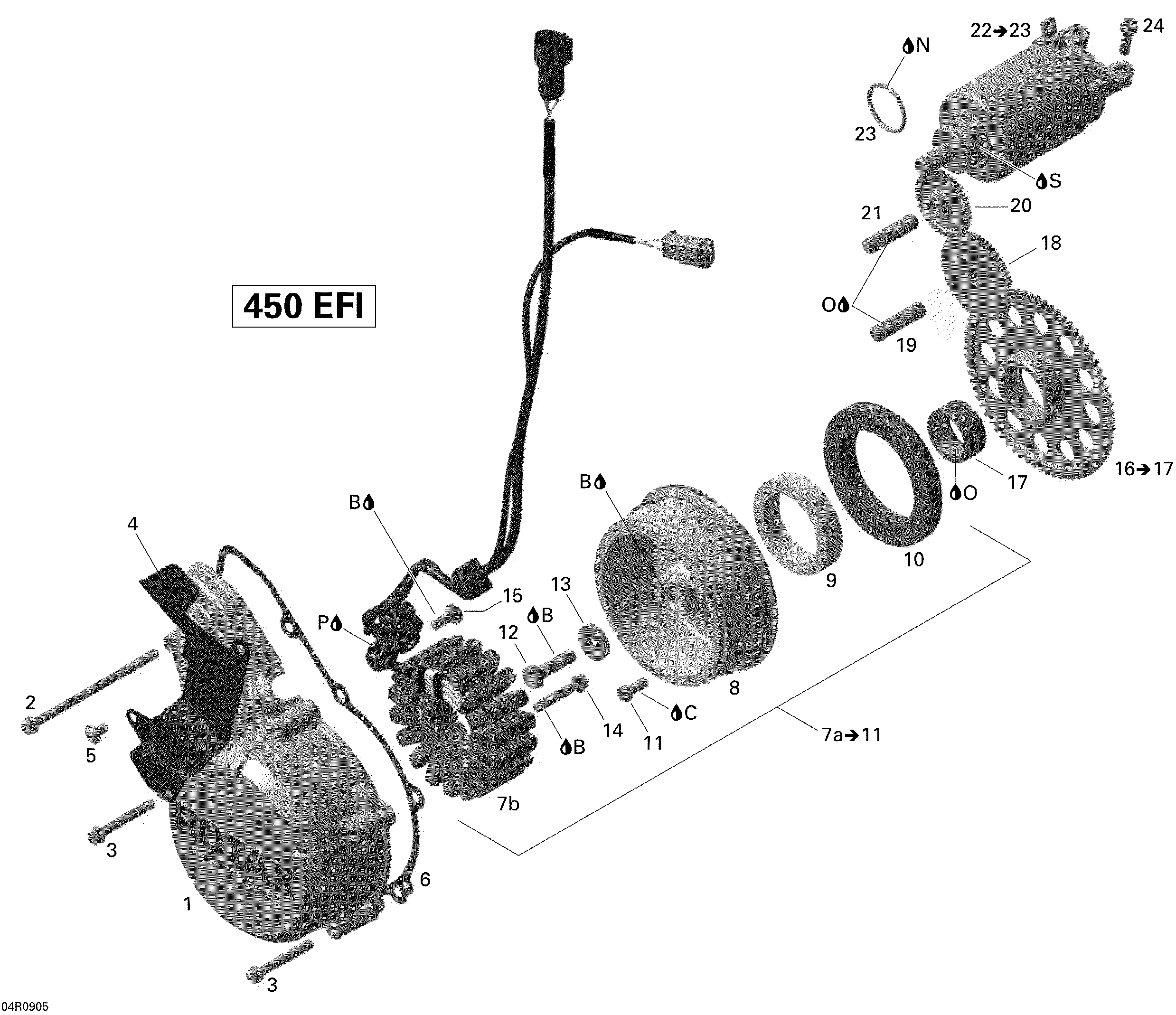

03- Magneto And Electric Starter для BRP DS 450 Xxc, Xmx EFI - 2009

№

Артикул

Название
1

420611700 Ignition Cover

Ignition Cover
2

420440612 Flanged Torx Screw M6 X 105

Flanged Torx Screw M6 X 105
3

420641198 Flanged Torx Screw M6 X 45

Flanged Torx Screw M6 X 45
4

420651020 Protection Shield

Protection Shield
5

420240602 Flanged Screw M6 X 10

Flanged Screw M6 X 10
6

420430980 Gasket

Gasket
7A

420685171 Magneto Ass'y. Includes 7a to 11

Magneto Ass'y. Includes 7a to 11
7b

420296323 Stator Plate

Stator Plate
9

420259070 Sprag Clutch

Sprag Clutch
10

420659860 Sprag Clutch Housing

Sprag Clutch Housing
11

420640980 Hex. Locking Screw M6 X 16

Hex. Locking Screw M6 X 16
12

420940485 Screw M8 x 30

Screw M8 x 30
13

420626460 Washer 23 mm

Washer 23 mm
14

420641258 Flanged Torx Screw M6 X 35

Flanged Torx Screw M6 X 35
15

420640321 Hex. Taptite Screw M6 X 16

Hex. Taptite Screw M6 X 16
16

420635155 Starting Gear Ass'y, 68 Teeth. Includes 16 to 17

Starting Gear Ass'y, 68 Teeth. Includes 16 to 17
18

420685300 Friction Clutch

Friction Clutch
19

420229301 Location Pin

Location Pin
20

420434790 Intermediate Gear, 41 Teeth

Intermediate Gear, 41 Teeth
21

420929935 Intermediate Gear Shaft

Intermediate Gear Shaft
22

420685100 Electric Starter Ass'y. Includes 22 to 23

Electric Starter Ass'y. Includes 22 to 23
23

420250140 O-Ring

O-Ring
24

420440202 Flanged Torx Screw M6 X 20

Flanged Torx Screw M6 X 20
B

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml
C

413711400 Loctite 648, 10 ml

Loctite 648, 10 ml
N

293550030 Grease, Super Lube

Grease, Super Lube
P

293800081 Loctite 5910, 300 ml

Loctite 5910, 300 ml
S

293800070 Loctite 767, Antiseize Lubricant, 8 oz

Loctite 767, Antiseize Lubricant, 8 oz
