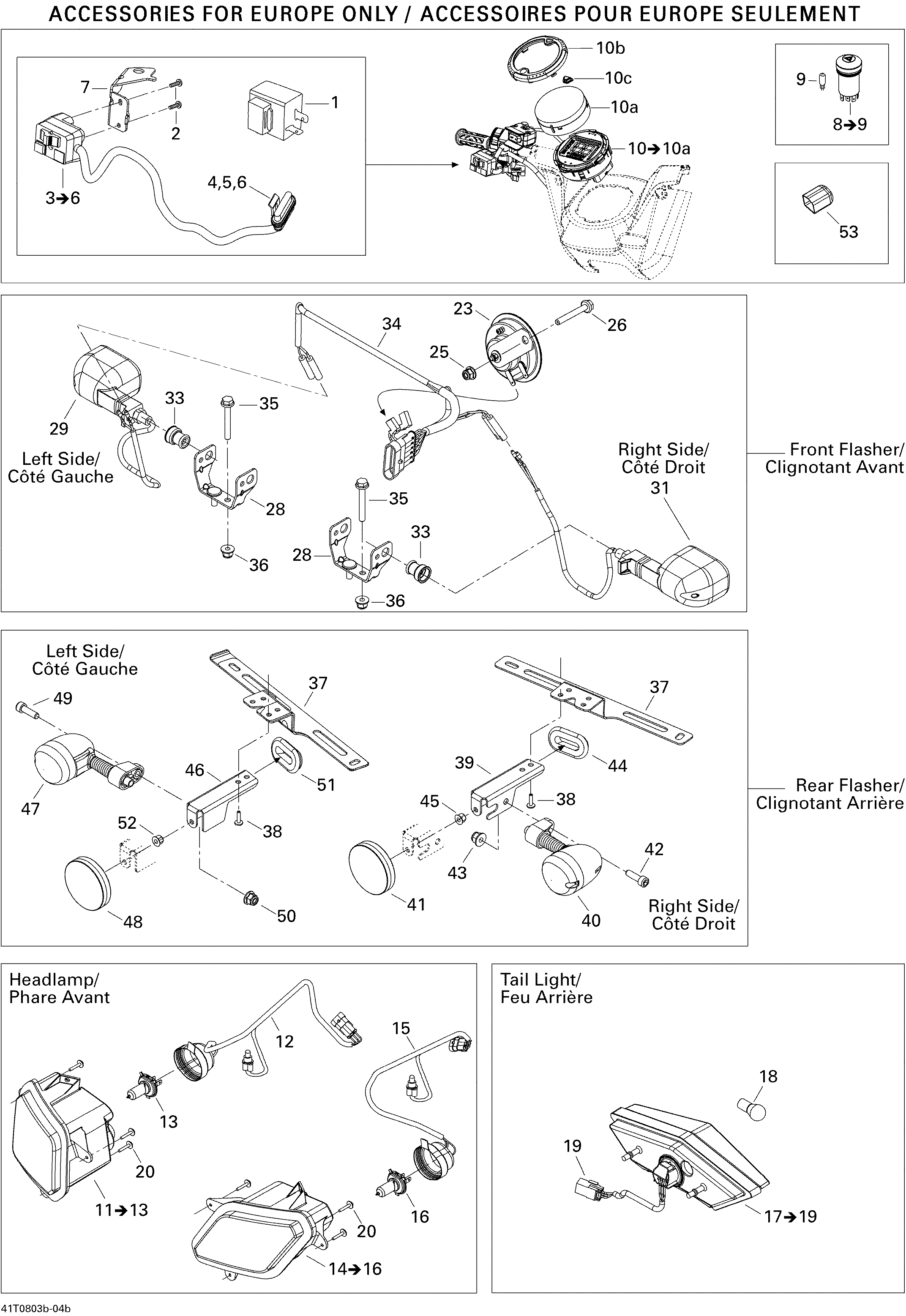

10- Electrical Accessories EURO для BRP Outlander 400 STD - 2008
-
№АртикулНазвание
-
1710000581 Flasher UnitFlasher Unit
-
2207141260 Screw Hex. M4 X 12Screw Hex. M4 X 12
-
3710000904 Flasher Switch. Includes 3 to 6Flasher Switch. Includes 3 to 6
-
4710000780 ConnectorConnector
-
5278001014 Female TerminalFemale Terminal
-
6278001013 Wire SealWire Seal
-
7710000905 Switch SupportSwitch Support
-
8710000367 Emergency Switch. Includes 8 to 9Emergency Switch. Includes 8 to 9
-
9710000661 Emergency Switch LightEmergency Switch Light
-
10710001068 Speedometer. Includes 10 to 10aSpeedometer. Includes 10 to 10a
-
10a415129319 LensLens
-
10b710001416 Trim RingTrim Ring
-
10c710001417 Set ButtonSet Button
-
11710000861 RH Headlamp. Includes 11 to 13RH Headlamp. Includes 11 to 13
-
12710000923 Headlamp HarnessHeadlamp Harness
-
13710000871 Bulb, 12 V / 35/35 WBulb, 12 V / 35/35 W
-
14710000862 LH Headlamp. Includes 14 to 16LH Headlamp. Includes 14 to 16
-
15710000923 Headlamp HarnessHeadlamp Harness
-
16710000871 Bulb, 12 V / 35/35 WBulb, 12 V / 35/35 W
-
17710001204 Tail Light Housing. Includes 17 to 19Tail Light Housing. Includes 17 to 19
-
18410504100 Tail Light BulbTail Light Bulb
-
19515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
20250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
23710001281 HornHorn
-
25233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
26207664544 Flanged Hex Screw M6 X 45Flanged Hex Screw M6 X 45
-
28710000978 BracketBracket
-
29710000546 FlasherFlasher
-
31710000547 FlasherFlasher
-
33710000765 Protection CapProtection Cap
-
34710000814 Front Fender HarnessFront Fender Harness
-
35207664544 Flanged Hex Screw M6 X 45Flanged Hex Screw M6 X 45
-
36233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
37710001241 BracketBracket
-
38390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
39710001329 BracketBracket
-
40710001079 Flashing LightFlashing Light
-
41705002408 Reflector, RedReflector, Red
-
42205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
43233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
44705002665 Oblong GrommetOblong Grommet
-
45233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
46710001330 BracketBracket
-
47710001080 Flashing LightFlashing Light
-
48705002408 Reflector, RedReflector, Red
-
49205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
50233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
51705002665 Oblong GrommetOblong Grommet
-
52233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
53710001370 CapCap
