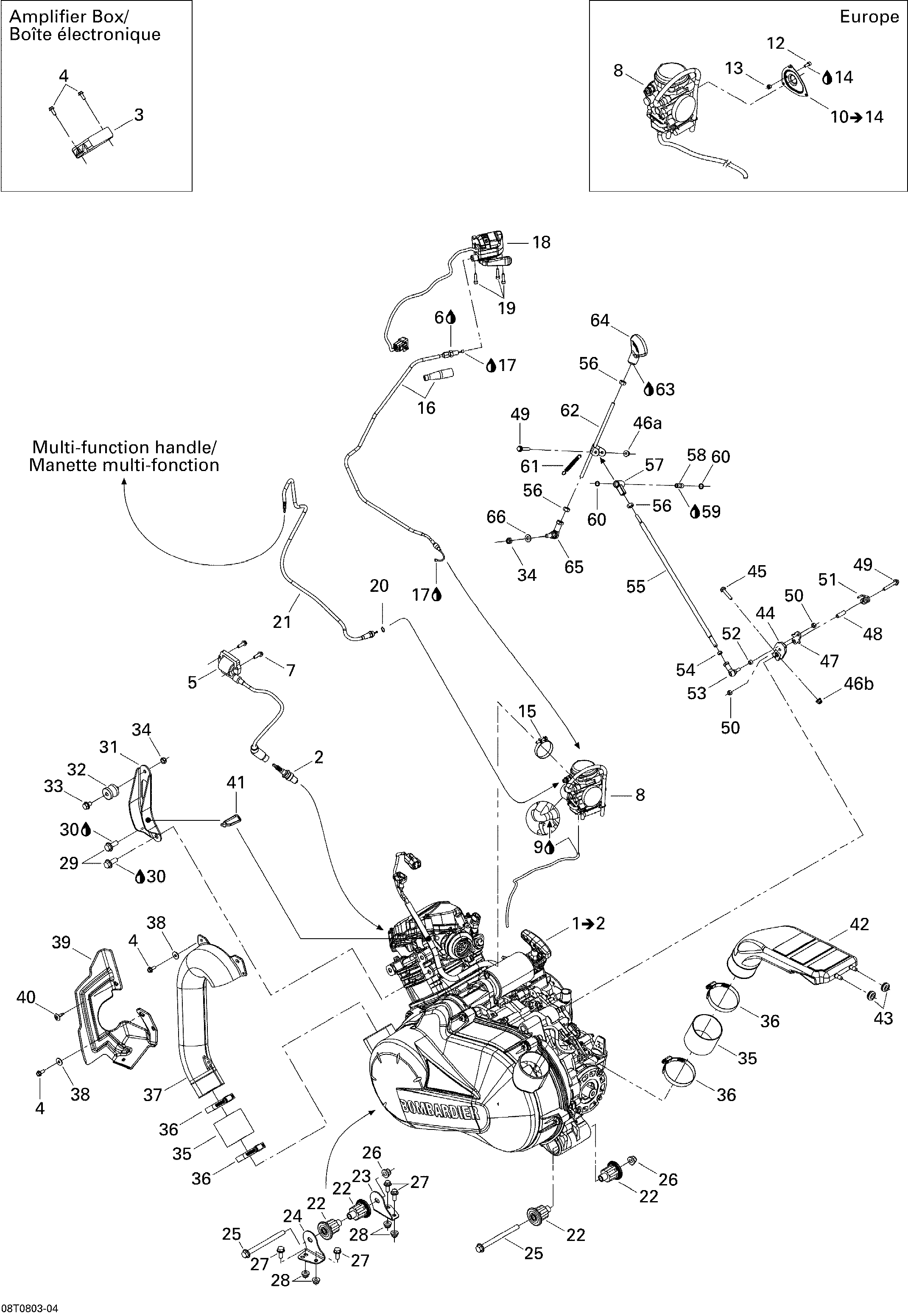

01- Engine And Engine Support для BRP Outlander 400 STD - 2008
-
№АртикулНазвание
-
1707000463 Engine Rotax 4 Stroke. Includes 1 to 2Engine Rotax 4 Stroke. Includes 1 to 2
-
2707000246 Spark Plug, NGK DCP-R8ESpark Plug, NGK DCP-R8E
-
3420664285 Amplifier BoxAmplifier Box
-
4210261680 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
5420265358 Ignition Coil Ass'yIgnition Coil Ass'y
-
6293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
7210252040 Hex Forming ScrewHex Forming Screw
-
8707000402 Carburator CE, Mikuni BSR33-67. EuropeCarburator CE, Mikuni BSR33-67. Europe
-
8707200190 Carburator, Mikuni BSR33-49Carburator, Mikuni BSR33-49
-
9413708300 Glue Tube, Loctite 454, 20 GGlue Tube, Loctite 454, 20 G
-
10707000406 Calibrated Cover Ass'y. Includes 10 to 14, EuropeCalibrated Cover Ass'y. Includes 10 to 14, Europe
-
12205041044 Socket Head Screw M4 X 10. EuropeSocket Head Screw M4 X 10. Europe
-
13232541414 Elastic Stop Nut M4. EuropeElastic Stop Nut M4. Europe
-
14413711400 Loctite 648, 10 ml. EuropeLoctite 648, 10 ml. Europe
-
15293650164 Gemi ClampGemi Clamp
-
16707000226 Throttle CableThrottle Cable
-
17293600041 Cable Lubricant, 400 GCable Lubricant, 400 G
-
18707000595 Throttle HandleThrottle Handle
-
19205052588 Socket Head Screw M5 X 25Socket Head Screw M5 X 25
-
20293300075 O-RingO-Ring
-
21707000228 Choke CableChoke Cable
-
22707000426 Anti-vibration MountAnti-vibration Mount
-
23707000364 Engine Bracket, BlackEngine Bracket, Black
-
24707000396 Engine Bracket, BlackEngine Bracket, Black
-
25230602546 Hex Flanged Screw M10 X 125Hex Flanged Screw M10 X 125
-
26233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
27207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
28233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
29207602544 Hex Flanged Screw M10 X 25Hex Flanged Screw M10 X 25
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
31707000224 Upper Engine BracketUpper Engine Bracket
-
32274000839 Rubber IsolatorRubber Isolator
-
33207581244 Hex Flanged Screw M8 X 12, Scotch GripHex Flanged Screw M8 X 12, Scotch Grip
-
34232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
35707000154 Flexible AdaptorFlexible Adaptor
-
36293650091 Norma ClampNorma Clamp
-
37707000436 Air IntakeAir Intake
-
38391302000 Flat WasherFlat Washer
-
39707000429 CVT Water DeflectorCVT Water Deflector
-
40414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
41414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
42707000437 Air OutletAir Outlet
-
43293720053 GrommetGrommet
-
44707000503 LeverLever
-
45207663044 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
46a233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
46b233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
47707000507 Pivot PlatePivot Plate
-
48293900079 BushingBushing
-
49207664044 Hex Flanged Screw M6 X 40Hex Flanged Screw M6 X 40
-
50232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
51707000310 SpringSpring
-
52293900029 BushingBushing
-
53707000545 LH Ball JointLH Ball Joint
-
54232066414 LH Hex Nut M6LH Hex Nut M6
-
55707000567 Threaded RodThreaded Rod
-
56232081414 Hex Nut M8Hex Nut M8
-
57707000568 PivotPivot
-
58293900075 BushingBushing
-
59293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
60414583300 O-RingO-Ring
-
61707000569 SpringSpring
-
62707000570 Arm LeverArm Lever
-
63293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
64707000284 Lever HandleLever Handle
-
65707000546 RH Ball JointRH Ball Joint
-
66234081410 Flat Washer 8 mmFlat Washer 8 mm
