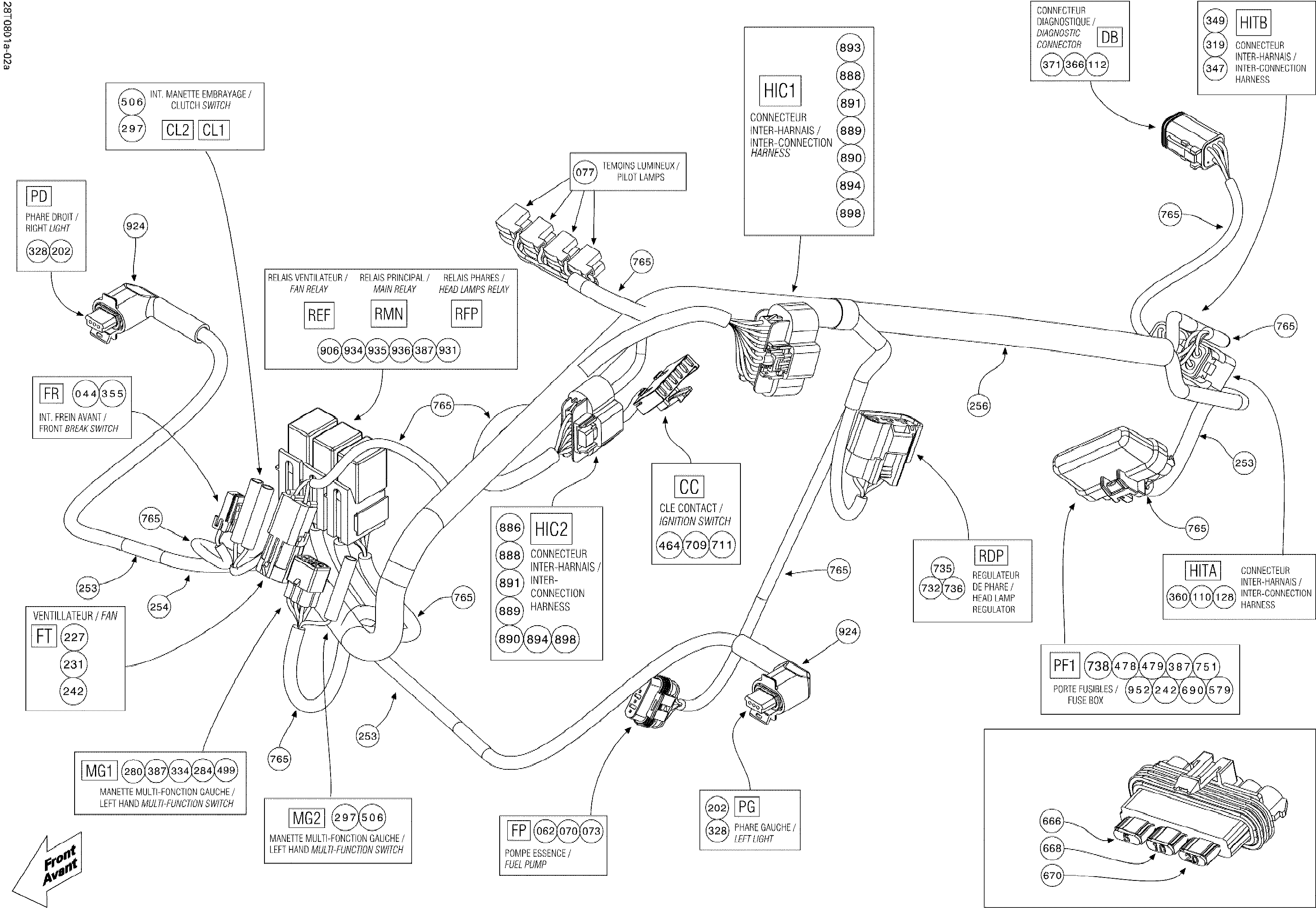

10- Main Harness Front для BRP DS 450 X - 2008
-
№АртикулНазвание
-
1710000800 Main Harness. Includes 1 to 952Main Harness. Includes 1 to 952
-
44515175231 Female TerminalFemale Terminal
-
62278001014 Female TerminalFemale Terminal
-
70409209700 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
73278001013 Wire SealWire Seal
-
77409010300 Female TerminalFemale Terminal
-
110278000631 Male TerminalMale Terminal
-
112278000632 Female TerminalFemale Terminal
-
128278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
202278001114 Female TerminalFemale Terminal
-
227409004300 Male TerminalMale Terminal
-
231278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
242278000218 Wire SealWire Seal
-
253515175442 Tubing 6 mmTubing 6 mm
-
254409901700 Tubing 9 mmTubing 9 mm
-
256415080000 Tubing 16 mmTubing 16 mm
-
280409012100 Female TerminalFemale Terminal
-
284409012300 SealSeal
-
297278001007 Insulated SheathInsulated Sheath
-
319515175568 Male TerminalMale Terminal
-
328278001467 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
334710000081 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
347278001674 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
349278001672 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
355515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
366515175673 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
371515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
387293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
464710000274 Female TerminalFemale Terminal
-
478710000888 Housing, 6 CircuitsHousing, 6 Circuits
-
479710000889 LockLock
-
499710000402 Wire SealWire Seal
-
506710000421 Female TerminalFemale Terminal
-
579710000504 Wire SealWire Seal
-
666710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
668710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
670710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
690710000890 Female TerminalFemale Terminal
-
709710000848 LockLock
-
711710000849 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
732710000877 TerminalTerminal
-
735710000880 Housing, 3 CircuitsHousing, 3 Circuits
-
736710000881 SealSeal
-
738710000897 CoverCover
-
751710000918 Female TerminalFemale Terminal
-
886710001232 HousingHousing
-
888710001230 SealSeal
-
889710001233 SealSeal
-
890710001229 TerminalTerminal
-
891710001228 TerminalTerminal
-
893710001226 HousingHousing
-
894710001225 CapCap
-
898710001221 LockLock
-
906710001234 TerminalTerminal
-
924710001314 Wire ProtectorWire Protector
-
931710001369 TerminalTerminal
-
934710001356 TerminalTerminal
-
935710001355 HousingHousing
-
936710001354 RelayRelay
-
952293650187 ClipClip
