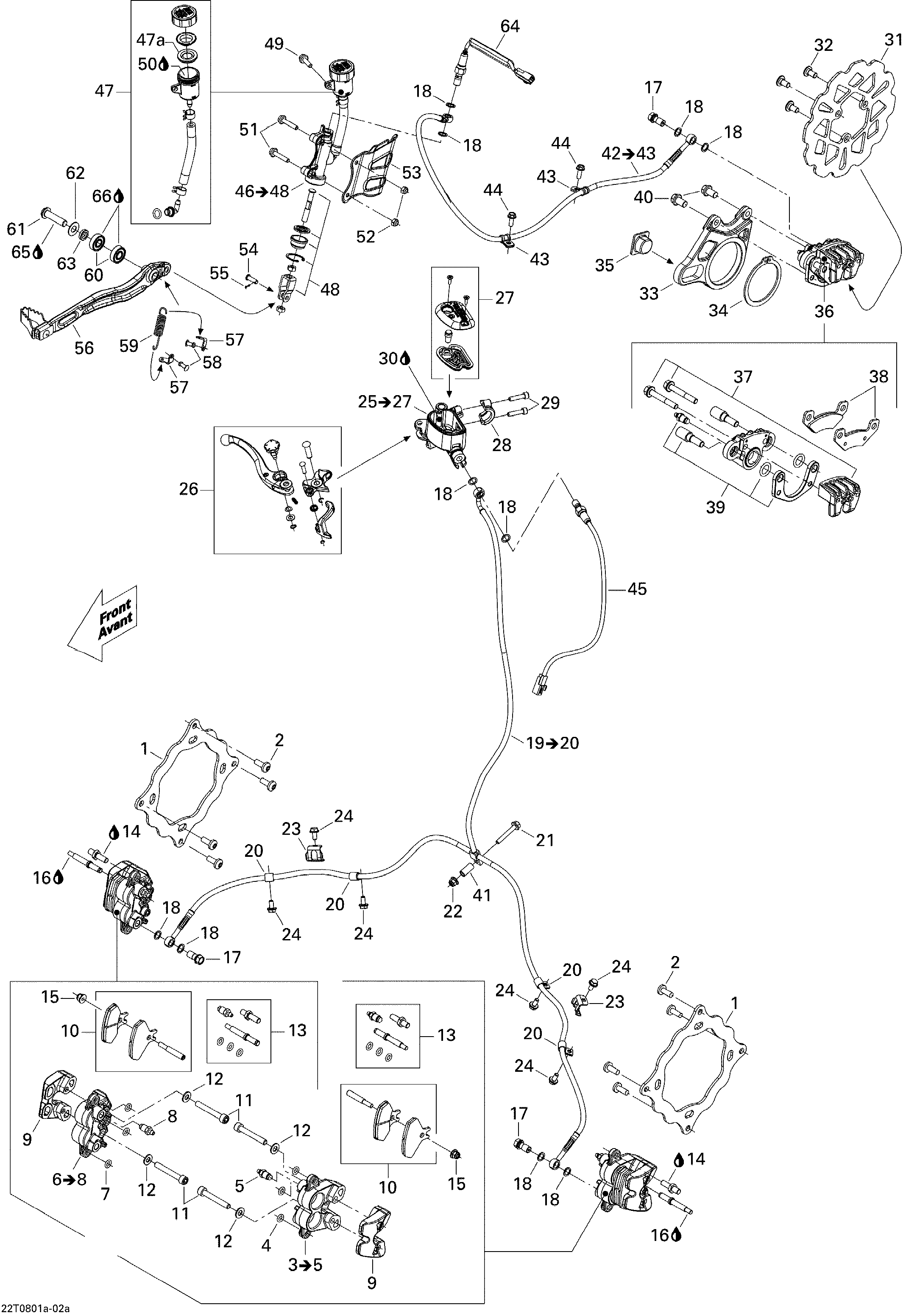

06- Hydraulic Brakes для BRP DS 450 X - 2008

№

Артикул

Название
1

705600400 Front Brake Disc

Front Brake Disc

13 300 ₽
2

250000117 Torx Screw M8 X 20, Scotch Grip

Torx Screw M8 X 20, Scotch Grip

290 ₽
3

705600401 LH Front Caliper Ass'y. Includes 3 to 5

LH Front Caliper Ass'y. Includes 3 to 5

23 230 ₽
6

705600404 RH Front Caliper Ass'y. Includes 6 to 8

RH Front Caliper Ass'y. Includes 6 to 8

23 230 ₽
9

705600560 Outer Caliper

Outer Caliper

2 360 ₽
10

705600402 Front Brake Pad Kit

Front Brake Pad Kit

4 830 ₽
11

205085534 Socket Head Screw M8 X 55

Socket Head Screw M8 X 55

190 ₽
12

234081430 Flat Washer M8

Flat Washer M8

740 ₽
13

705600425 Pin Slide Kit

Pin Slide Kit

3 190 ₽
14

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
15

233261434 Flanged Elastic Nut M6

Flanged Elastic Nut M6

2 310 ₽
16

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
17

705600628 Banjo Bolt

Banjo Bolt

3 990 ₽
18

705600310 Copper Washer

Copper Washer

2 660 ₽
19

705600408 Front Lever Brake Hose Ass'y. Includes 19 to 20

Front Lever Brake Hose Ass'y. Includes 19 to 20

11 770 ₽
20

705600459 Clamp

Clamp

420 ₽
21

207664034 Hex. Flanged Screw M6 X 40

Hex. Flanged Screw M6 X 40

200 ₽
22

233261434 Flanged Elastic Nut M6

Flanged Elastic Nut M6

2 310 ₽
23

705600553 Hose Holder

Hose Holder

660 ₽
24

207561234 Hex. Flanged Screw M6 X 12, Scotch Grip

Hex. Flanged Screw M6 X 12, Scotch Grip

200 ₽
25

705600409 Cylinder Master Ass'y. Includes 25 to 27

Cylinder Master Ass'y. Includes 25 to 27

19 420 ₽
26

705600491 Brake Lever Kit

Brake Lever Kit

8 840 ₽
27

705600493 Cap Set

Cap Set

5 650 ₽
28

705600619 Bracket Kit

Bracket Kit

2 010 ₽
29

205062534 Socket Head Screw M6 X 25

Socket Head Screw M6 X 25

200 ₽
30

293600062 Brake Fluid, GTLMA, DOT 4 12 X 354 ml

Brake Fluid, GTLMA, DOT 4 12 X 354 ml

0 ₽
31

705600410 Rear Brake Disc

Rear Brake Disc

13 300 ₽
32

250000330 Shoulder Screw M8

Shoulder Screw M8

850 ₽
33

705600411 Rear Caliper Support

Rear Caliper Support

7 110 ₽
34

293370045 Snap Ring

Snap Ring

660 ₽
35

705600412 Guide Rear Caliper

Guide Rear Caliper

850 ₽
36

705600413 Rear Caliper Ass'y

Rear Caliper Ass'y

0 ₽
37

705600490 Anvil Kit

Anvil Kit

14 990 ₽
38

705600485 Brake Pad Kit

Brake Pad Kit

0 ₽
39

705600483 Bracket Kit

Bracket Kit

5 460 ₽
40

250000313 Hex. Flanged Screw M8 X 20, Scotch Grip

Hex. Flanged Screw M8 X 20, Scotch Grip

410 ₽
41

512059812 Spacer

Spacer

990 ₽
42

705600414 Rear Brake Hose Ass'y. Includes 42 to 43

Rear Brake Hose Ass'y. Includes 42 to 43

0 ₽
43

705600459 Clamp

Clamp

420 ₽
44

210261680 Hex. Flanged Screw M6 X 16

Hex. Flanged Screw M6 X 16

280 ₽
45

710000853 Brake Switch

Brake Switch

3 270 ₽
46

705600415 Rear Cylinder Master Ass'y. Includes 46 to 48

Rear Cylinder Master Ass'y. Includes 46 to 48

0 ₽
47

705600497 Reservoir Set

Reservoir Set

5 460 ₽
47a

705600763 Diaphragm

Diaphragm

910 ₽
48

705600498 Rod Set

Rod Set

4 370 ₽
49

207662034 Hex. Flanged Screw

Hex. Flanged Screw

740 ₽
50

293600062 Brake Fluid, GTLMA, DOT 4 12 X 354 ml

Brake Fluid, GTLMA, DOT 4 12 X 354 ml

0 ₽
51

207563034 Hex. Flanged Screw M6 X 30, Scotch Grip

Hex. Flanged Screw M6 X 30, Scotch Grip

740 ₽
52

232561434 Elastic Stop Nut M6

Elastic Stop Nut M6

740 ₽
53

705600538 Hose Protector

Hose Protector

1 130 ₽
54

250400031 Clevis Pin

Clevis Pin

660 ₽
55

250400032 Cotter Pin

Cotter Pin

190 ₽
56

705600534 Brake Pedal

Brake Pedal

11 770 ₽
57

705600631 Fixation Plate

Fixation Plate

660 ₽
58

390407200 Pop Rivet 3/16''

Pop Rivet 3/16''

70 ₽
59

705600635 Brake Pedal Spring

Brake Pedal Spring

1 220 ₽
60

705600458 Bearing

Bearing

1 810 ₽
61

205404036 Socket Head Screw M10 X 40

Socket Head Screw M10 X 40

410 ₽
62

506152194 Washer

Washer

410 ₽
63

293900087 Bushing

Bushing

760 ₽
64

710001377 Brake Switch

Brake Switch

3 950 ₽
65

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
66

413703100 Loctite 609, 10 ml

Loctite 609, 10 ml

2 760 ₽
