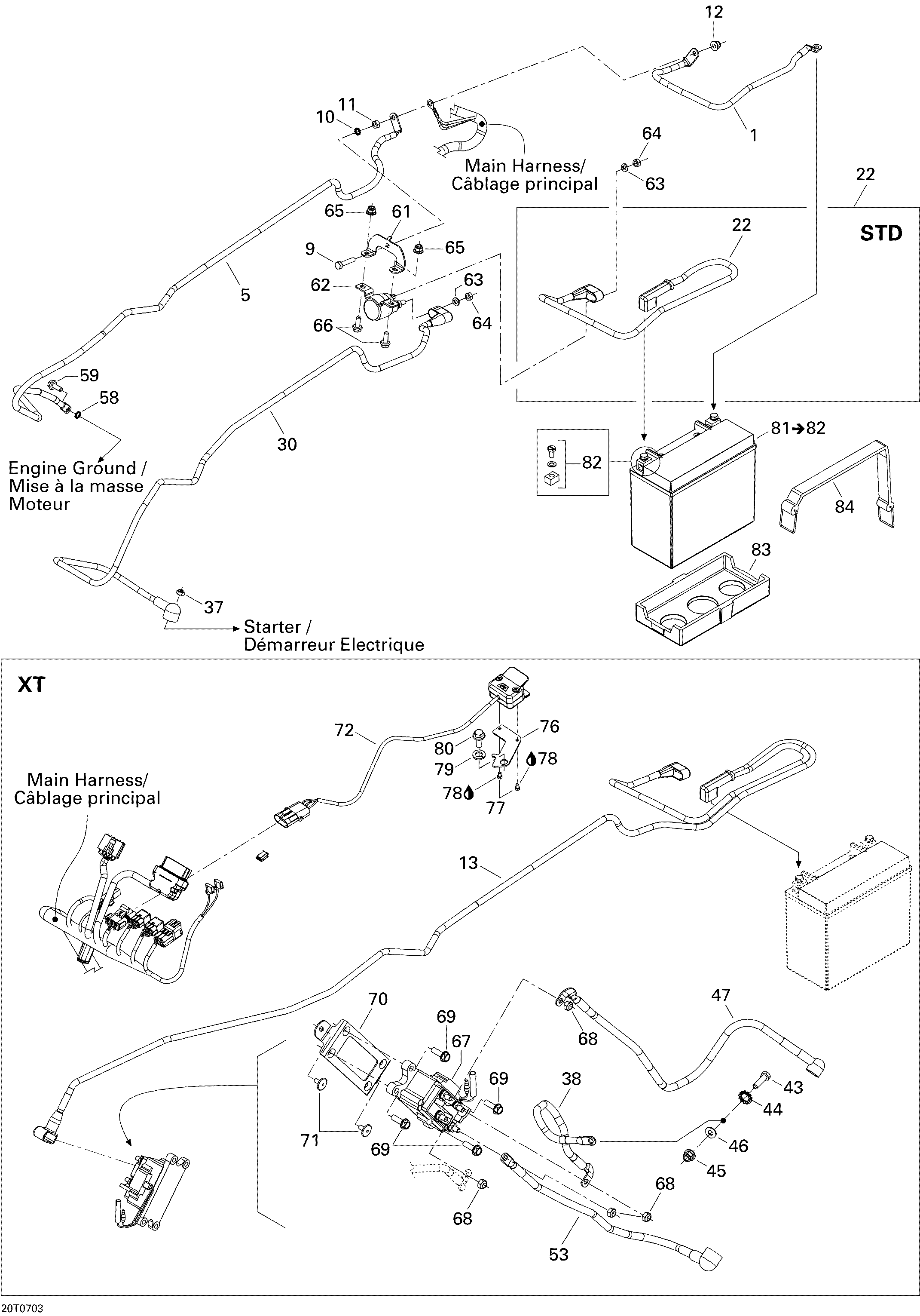

10- Electrical System STD для BRP Outlander MAX 400 STD 4 X 4 - 2007

  • №
    Артикул
    Название
  • 1
    710000830 Ground Cable, Battery/frame
    Ground Cable, Battery/frame
  • 5
    710000844 Ground Cable
    Ground Cable
  • 9
    207162544 Hex Screw M6 X 25
    Hex Screw M6 X 25
  • 10
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 11
    232061414 Hex Nut M6
    Hex Nut M6
  • 12
    233061414 Hex Flanged Nut M6
    Hex Flanged Nut M6
  • 22
    710000834 Positive Cable. STD
    Positive Cable. STD
  • 30
    710000903 Positive Cable, Starter Relay/starter
    Positive Cable, Starter Relay/starter
  • 37
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 58
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 59
    207561644 Hex Flanged Screw M6 X 16, Scotch Grip
    Hex Flanged Screw M6 X 16, Scotch Grip
  • 61
    705201325 Starter Relay Support
    Starter Relay Support
  • 62
    515176011 Starter Relay
    Starter Relay
  • 63
    234161601 Lock Washer Helical M6
    Lock Washer Helical M6
  • 64
    232061600 Hex Nut M6
    Hex Nut M6
  • 65
    233061414 Hex Flanged Nut M6
    Hex Flanged Nut M6
  • 66
    207661244 Hex Flanged Screw M6 X 12
    Hex Flanged Screw M6 X 12
  • 81
    410301203 Battery, 18 Amperes. Includes 81 to 82
    Battery, 18 Amperes. Includes 81 to 82
  • 82
    295500849 Battery Fastener Kit
    Battery Fastener Kit
  • 83
    710000279 Insulator Pad
    Insulator Pad
  • 84
    293850097 Rubber Strap
    Rubber Strap
