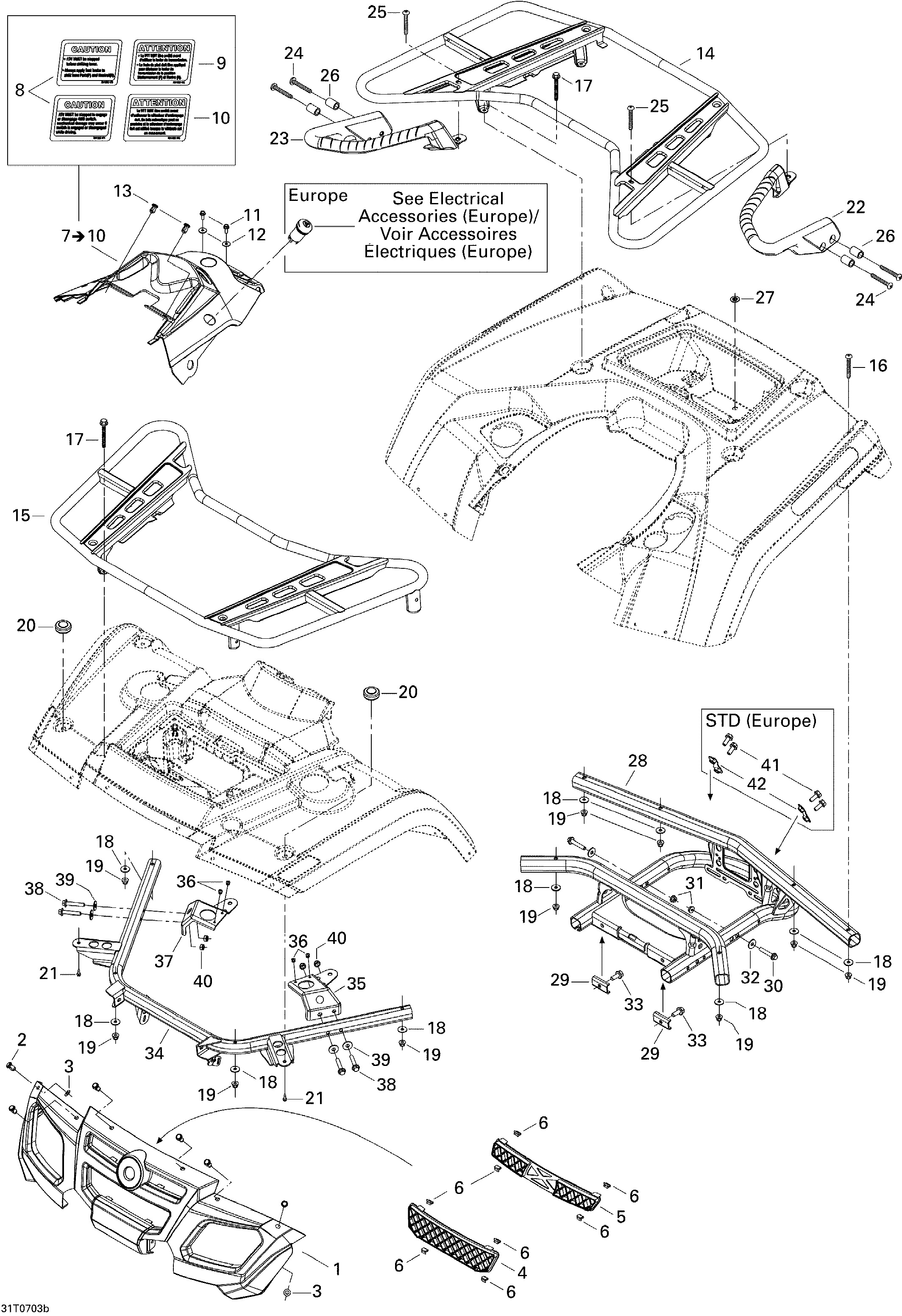

09- Body And Accessories 2, STD для BRP Outlander MAX 400 STD 4 X 4 - 2007

‹-+›
  • №
    Артикул
    Название
  • 1
    705001313 Front Fascia, Red. Viper Red
    Front Fascia, Red. Viper Red
  • 1
    705001991 Front Fascia, Yellow. Yellow
    Front Fascia, Yellow. Yellow
  • 1
    705001992 Front Fascia, Green. Laurentian Green
    Front Fascia, Green. Laurentian Green
  • 2
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 3
    506151252 Washer
    Washer
  • 4
    705001679 Lower Grill
    Lower Grill
  • 5
    705001901 Upper Grill
    Upper Grill
  • 6
    517302674 Clip
    Clip
  • 7
    703500668 Dash-board, Red. Includes 7 to 10, Viper Red
    Dash-board, Red. Includes 7 to 10, Viper Red
  • 7
    703500674 Dash-board, Green. Includes 7 to 10, Laurentian Green
    Dash-board, Green. Includes 7 to 10, Laurentian Green
  • 7
    703500670 Dash-board, Yellow. Includes 7 to 10, Yellow
    Dash-board, Yellow. Includes 7 to 10, Yellow
  • 7
    703500671 Dash-board, Red. Includes 7 to 10, Viper Red (Europe)
    Dash-board, Red. Includes 7 to 10, Viper Red (Europe)
  • 7
    703500672 Dash-board, Green. Includes 7 to 10, Laurentian Green (Europe)
    Dash-board, Green. Includes 7 to 10, Laurentian Green (Europe)
  • 7
    703500673 Dash-board, Yellow. Includes 7 to 10, Yellow (Europe)
    Dash-board, Yellow. Includes 7 to 10, Yellow (Europe)
  • 8
    704900434 Caution Label, Lever And 4wd Switch
    Caution Label, Lever And 4wd Switch
  • 9
    704900475 Caution Label, Shifting Lever
    Caution Label, Shifting Lever
  • 10
    704900476 Caution Label, 4wd Switch
    Caution Label, 4wd Switch
  • 11
    210261680 Hex Flanged Screw M6 X 16
    Hex Flanged Screw M6 X 16
  • 12
    391302000 Flat Washer
    Flat Washer
  • 13
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 14
    705001780 Rear Luggage Rack
    Rear Luggage Rack
  • 15
    705001769 Front Luggage Rack
    Front Luggage Rack
  • 16
    250000239 Torx Truss Screw M6 X 50
    Torx Truss Screw M6 X 50
  • 17
    207665044 Hex Flanged Screw M6 X 50
    Hex Flanged Screw M6 X 50
  • 18
    224061201 Flat Washer
    Flat Washer
  • 19
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 20
    705002042 Rubber Cap
    Rubber Cap
  • 21
    365901100 Hex Screw 12 X 3/4
    Hex Screw 12 X 3/4
  • 22
    705001944 LH Handle
    LH Handle
  • 23
    705001945 RH Handle
    RH Handle
  • 24
    250000197 Torx Truss Screw M8 X 30
    Torx Truss Screw M8 X 30
  • 25
    250000198 Torx Truss Screw M8 X 16
    Torx Truss Screw M8 X 16
  • 26
    705002153 Bushing
    Bushing
  • 27
    414859400 Cap
    Cap
  • 28
    705001459 Rear Support
    Rear Support
  • 29
    705001180 U Reinforcement
    U Reinforcement
  • 30
    207685044 Hex Flanged Screw M8 X 50
    Hex Flanged Screw M8 X 50
  • 31
    233281414 Hex Flanged Elastic Nut M8
    Hex Flanged Elastic Nut M8
  • 32
    234082410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 33
    207582044 Hex Flanged Screw M8 X 20, Scotch Grip
    Hex Flanged Screw M8 X 20, Scotch Grip
  • 34
    705001455 Front Support
    Front Support
  • 35
    705000692 LH Anchor Plate
    LH Anchor Plate
  • 36
    390402300 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 37
    705000693 RH Anchor Plate
    RH Anchor Plate
  • 38
    207684544 Hex Flanged Screw M8 X 45
    Hex Flanged Screw M8 X 45
  • 39
    234082410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 40
    232581414 Hex Elastic Nut M8
    Hex Elastic Nut M8
  • 41
    207582084 Hex Flanged Screw M8 X 20, Scotch Grip. STD (Europe)
    Hex Flanged Screw M8 X 20, Scotch Grip. STD (Europe)
  • 42
    705001075 Attachment Plate. STD (Europe)
    Attachment Plate. STD (Europe)
