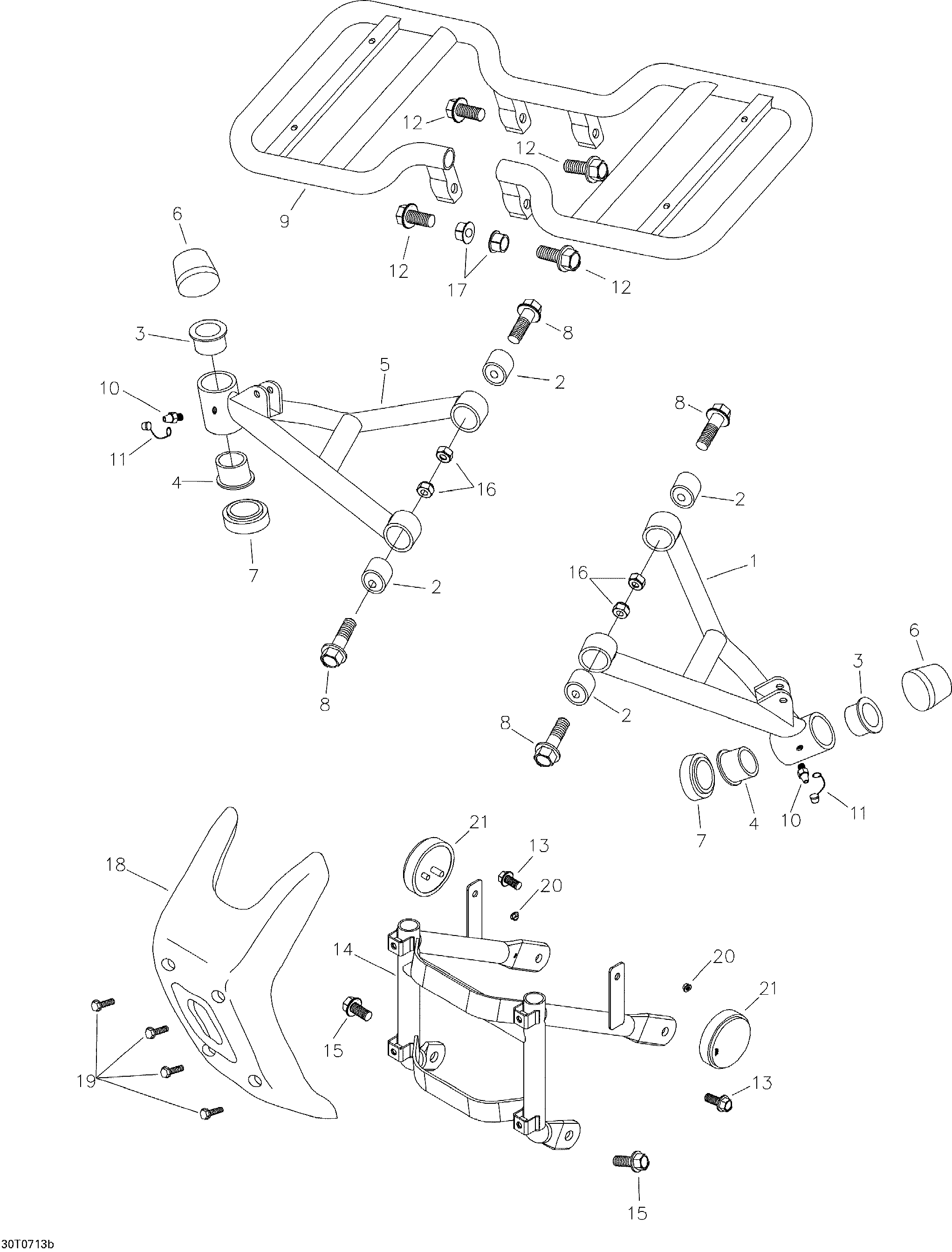

09- Frame And Luggage Racks для BRP Mini DS 90 4-strokes - 2007
-
№АртикулНазвание
-
1A51300145001 Left Suspension ArmLeft Suspension Arm
-
2A96400102829 Rubber Bushing (10 X 28 X 29)Rubber Bushing (10 X 28 X 29)
-
3A51201145000 BushBush
-
4A51202145000 BushBush
-
5A51200145001 Right Suspension ArmRight Suspension Arm
-
6A5120314500A Waterproof CoverWaterproof Cover
-
7A51204145001 Dustproof CoverDustproof Cover
-
8A960001004814G Hex Washer Face Bolt M10 X 48Hex Washer Face Bolt M10 X 48
-
9A64310238000 Porte Bagage Av*front RackPorte Bagage Av*front Rack
-
10A9650106000 Grease ValveGrease Valve
-
11A9650206000 Grease Valve CapGrease Valve Cap
-
12A960001002014G Hex Washer Face Bolt M10 X 20Hex Washer Face Bolt M10 X 20
-
13A960000601610G Hex Washer Face Bolt M6 X 16Hex Washer Face Bolt M6 X 16
-
14A50104238000 BumperBumper
-
15A960000801512G Hex Flange Bolt M8 X 15Hex Flange Bolt M8 X 15
-
16A9035010000G Nylon Nut (10 mm X 1.25)Nylon Nut (10 mm X 1.25)
-
17A64330145000 Floor Panel Rubber CapFloor Panel Rubber Cap
-
18A50107155000BK Bumper CoverBumper Cover
-
19A960000601210G Hex Washer Face Bolt M6 X 12Hex Washer Face Bolt M6 X 12
-
20233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
21A33741145000YL ReflectorReflector
