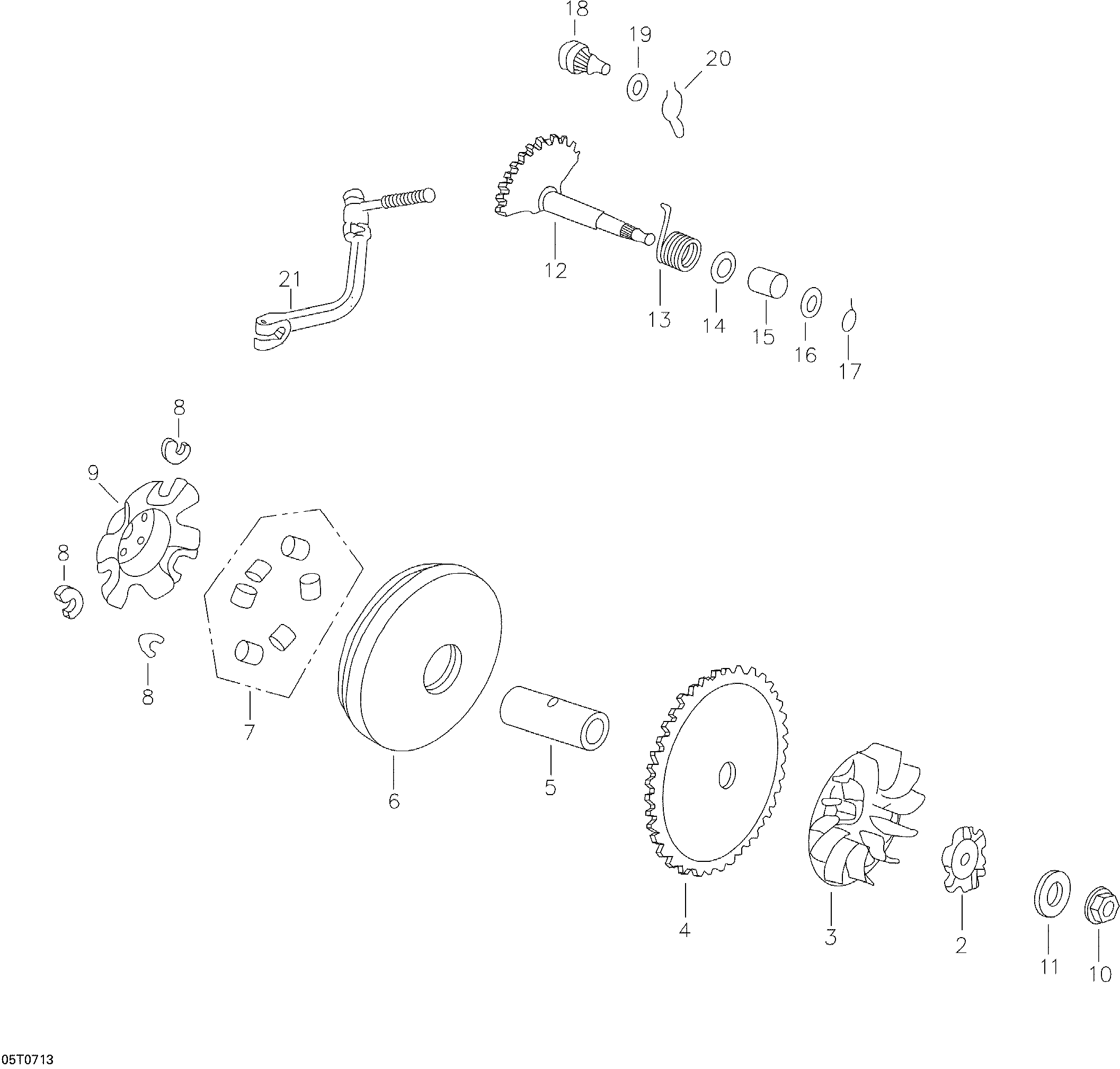

05- Drive Pulley, Kick Start для BRP Mini DS 90 4-strokes - 2007
-
№АртикулНазвание
-
2A22140133000 Kick Starter RatchetKick Starter Ratchet
-
3A22106133000 Cooling FanCooling Fan
-
4A22102133000 Drive FaceDrive Face
-
5A964011420385 BushingBushing
-
6A22110133000 Face Comp Movable DriveFace Comp Movable Drive
-
7A22121175000 Weight RollerWeight Roller
-
8A22132133000 Side PieceSide Piece
-
9A22131133000 Ramp PlateRamp Plate
-
10A9405012000 Hex Flanged Nut With Serration M12Hex Flanged Nut With Serration M12
-
11A941011222020 Washer FlateWasher Flate
-
12A28251133000 Starter SpindleStarter Spindle
-
13A28281133000 Starter SpringStarter Spring
-
14A28255133000 Kick Boss CollarKick Boss Collar
-
15A96401141821 BushingBushing
-
16A941011421015 Washer FlatWasher Flat
-
17A945111400S CirclipCirclip
-
18A28230133000 Kick Pignion AssyKick Pignion Assy
-
19A941011017010 Washer FlatWasher Flat
-
20A28223133000 Clip Pignion KickClip Pignion Kick
-
21A28300175000 Kick Starter Arm Assy.Kick Starter Arm Assy.
