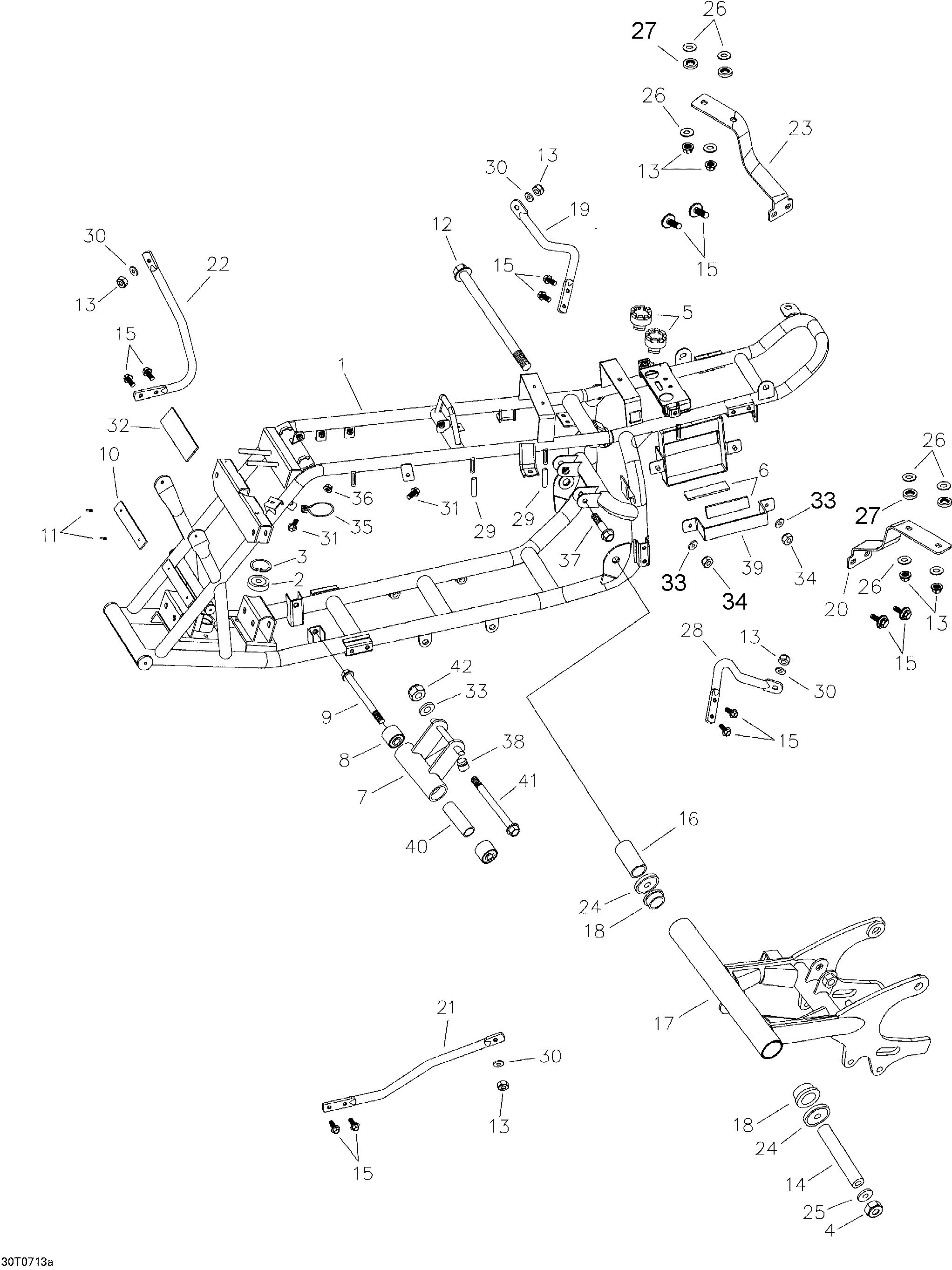

09- Frame для BRP Mini DS 90 4-strokes - 2007
-
№АртикулНазвание
-
1A50100238001 FrameFrame
-
2A961006002ZZ Radial Ball Bearing (6002zz)Radial Ball Bearing (6002zz)
-
3A945123200R Internal CirclipInternal Circlip
-
4A9035014000 Nylon Nut M14Nylon Nut M14
-
5A77211145000 RubberRubber
-
6A17505145000 Sponge PadSponge Pad
-
7A50350175000 Engine BracketEngine Bracket
-
8A96400102820 Rubber BushingRubber Bushing
-
9A960001011014G Hexagonal Washer Face BoltHexagonal Washer Face Bolt
-
10A50110145000 Frame No. PlateFrame No. Plate
-
11A90662105000 RivetRivet
-
12A960001429019 Hex Washer Face Bolt M14 X 290Hex Washer Face Bolt M14 X 290
-
13A9035006000 Nylon Nut M6Nylon Nut M6
-
14A52104145000 Swing Arm SpacerSwing Arm Spacer
-
15A920000601410 Hex Bolt M6 X 14Hex Bolt M6 X 14
-
16A52101145001 Rubber SleeveRubber Sleeve
-
17A52100145004 Swing Arm Sub Ass'ySwing Arm Sub Ass'y
-
18A52103145000 BushBush
-
19A83401155000 Rear Cover Lower Right Fixed PoleRear Cover Lower Right Fixed Pole
-
20A83402166000 Rear Cover Up Left Fixed PlateRear Cover Up Left Fixed Plate
-
21A64307155000 Front Cover Left Fixed PoleFront Cover Left Fixed Pole
-
22A64308155000 Front Cover Right Fixed PoleFront Cover Right Fixed Pole
-
23A83403166000 Rear Cover Up Right Fixed PlateRear Cover Up Right Fixed Plate
-
24A52144145000 Swing Arm Seal CoverSwing Arm Seal Cover
-
25A941011426030 Plain Washer (14 X 26 X 3)Plain Washer (14 X 26 X 3)
-
26A941010614020 Plain Washer (6 X 14 X 2)Plain Washer (6 X 14 X 2)
-
27A94102145000 Rubber WasherRubber Washer
-
28A83404155000 Rear Cover Lower Left Fixed PoleRear Cover Lower Left Fixed Pole
-
29A11357145000 Cable Clamp RubberCable Clamp Rubber
-
30A941010618020 Plain Washer (6 X 18 X 2)Plain Washer (6 X 18 X 2)
-
31A920000601610 Hex Bolt M6 X 16Hex Bolt M6 X 16
-
32ABO907559 Frame DecalFrame Decal
-
33A941051022025G Plain WasherPlain Washer
-
34A941010615010 Plain Washer (6 X 15 X 1)Plain Washer (6 X 15 X 1)
-
35A9451045000 ClipClip
-
36233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
37A960001004014G Hex Flange Bolt M10 X 40Hex Flange Bolt M10 X 40
-
38A95011101000 Rubber DamperRubber Damper
-
39A31504145000 Battery BracketBattery Bracket
-
40A50358175001 SpacerSpacer
-
41A960001017014 Hexagonal Washer Face BoltHexagonal Washer Face Bolt
-
42A9035010000G Nylon Nut (10 mm X 1.25)Nylon Nut (10 mm X 1.25)
