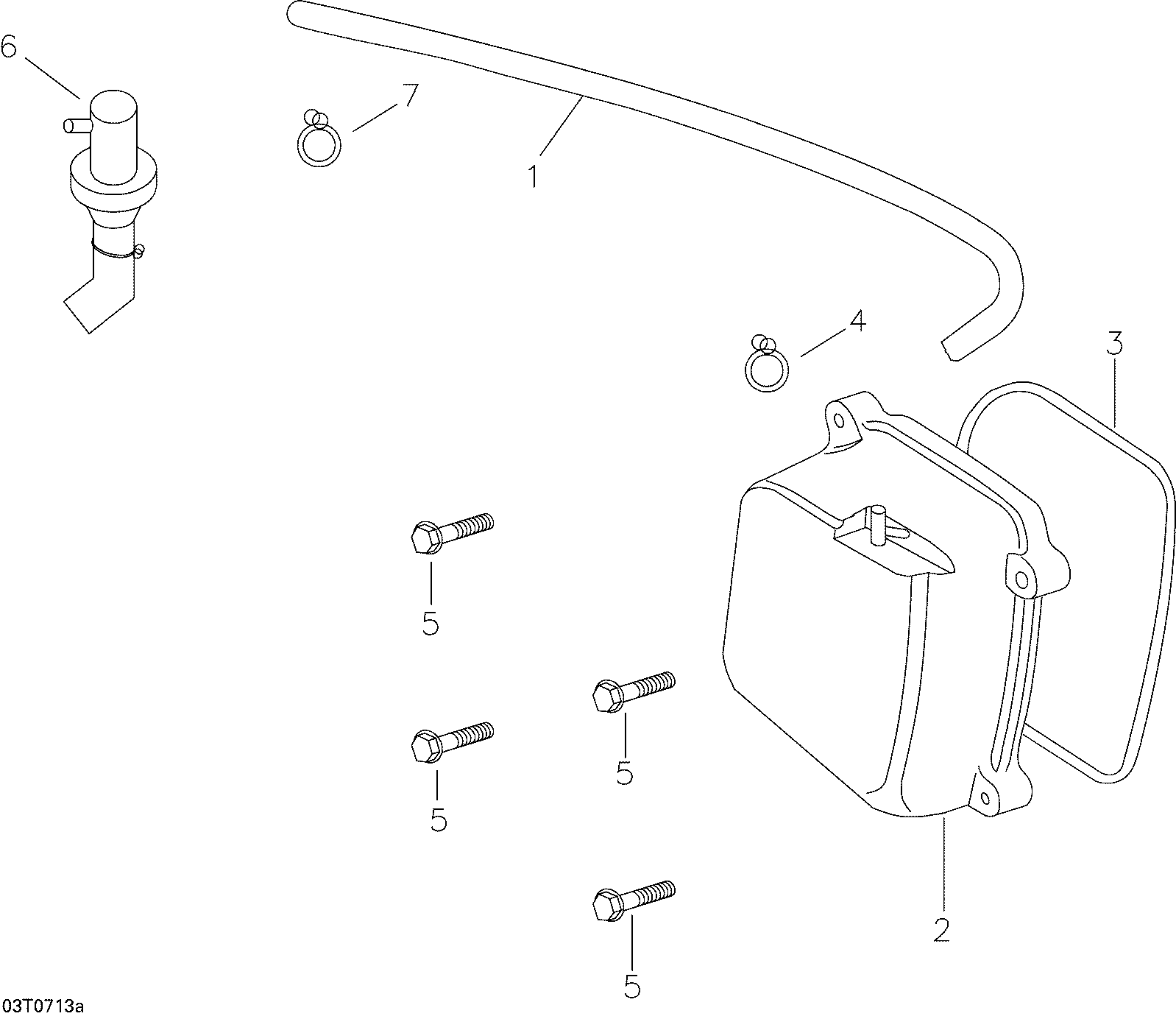

01- Cylinder Head Cover для BRP Mini DS 90 4-strokes - 2007
-
№АртикулНазвание
-
1A11210120000 Breather TubeBreather Tube
-
2A12310133000 Cylinder Head CoverCylinder Head Cover
-
3A12391133000 Cylinder Head Cover GasketCylinder Head Cover Gasket
-
4A9451008000 ClipClip
-
5A960000602508 Hexagonal Washer Face BoltHexagonal Washer Face Bolt
-
6A1736A175000 Catch Tank Compover GasketCatch Tank Compover Gasket
-
7A9451012000 ClipClip
