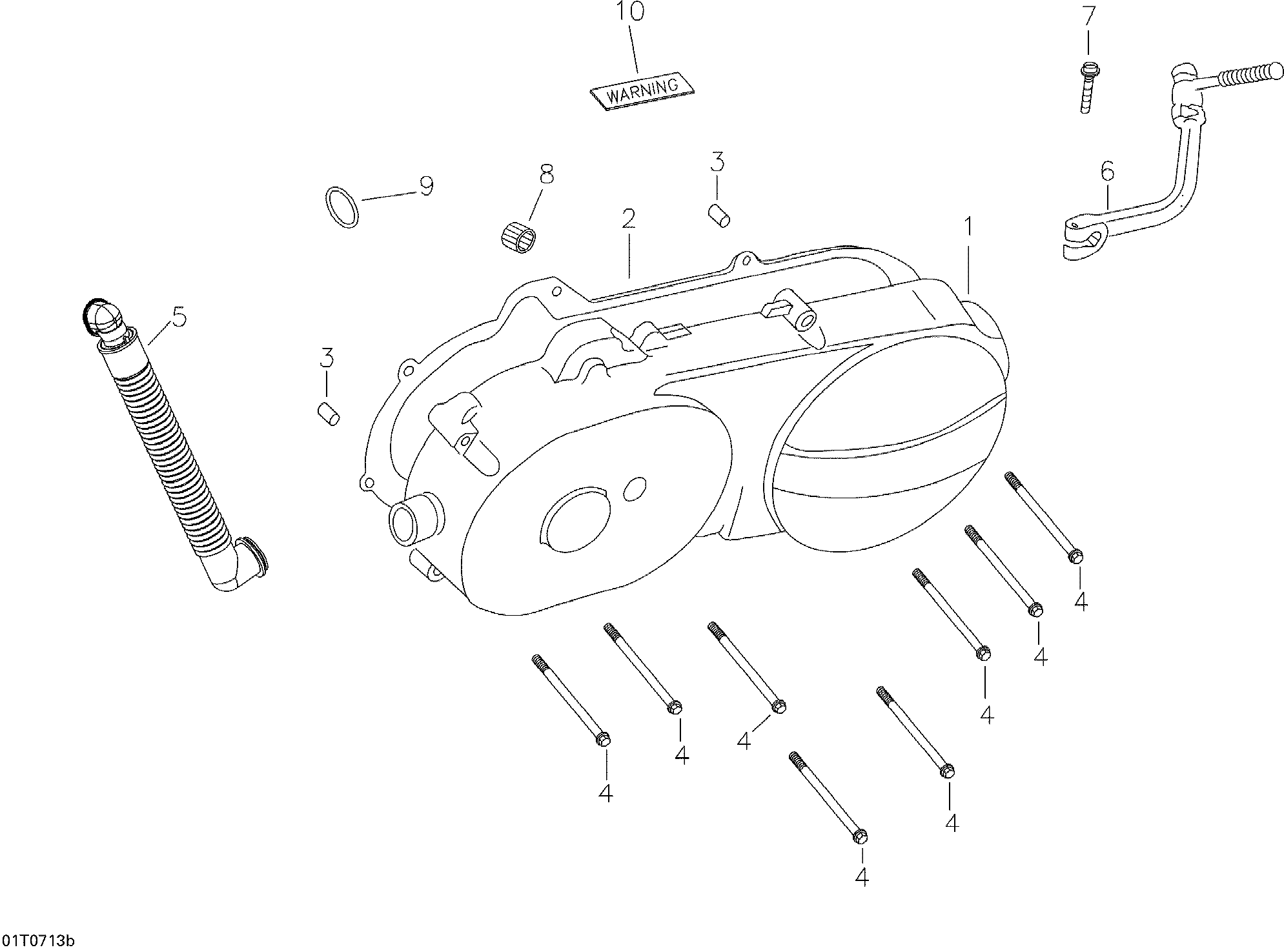

01- Crankcase Cover, Left для BRP Mini DS 90 4-strokes - 2007
-
№АртикулНазвание
-
1A11341175000 Cover LHCover LH
-
2A11359133000 Cover GasketCover Gasket
-
3A9430108140 Dowel Pin (8 X 14)Dowel Pin (8 X 14)
-
4A960000603508 Hexagonal Washer Face BoltHexagonal Washer Face Bolt
-
5A11345238000 Duct Cover LHDuct Cover LH
-
6A28300175000 Kick Starter Arm Assy.Kick Starter Arm Assy.
-
7A960000602510 Hex Washer Face Bolt M6 X 25Hex Washer Face Bolt M6 X 25
-
8A96200081210 Needle Bearing (hk8 X 12 X 10)Needle Bearing (hk8 X 12 X 10)
-
9A9451031000 ClipClip
-
10704900289 Bombardier LabelBombardier Label
