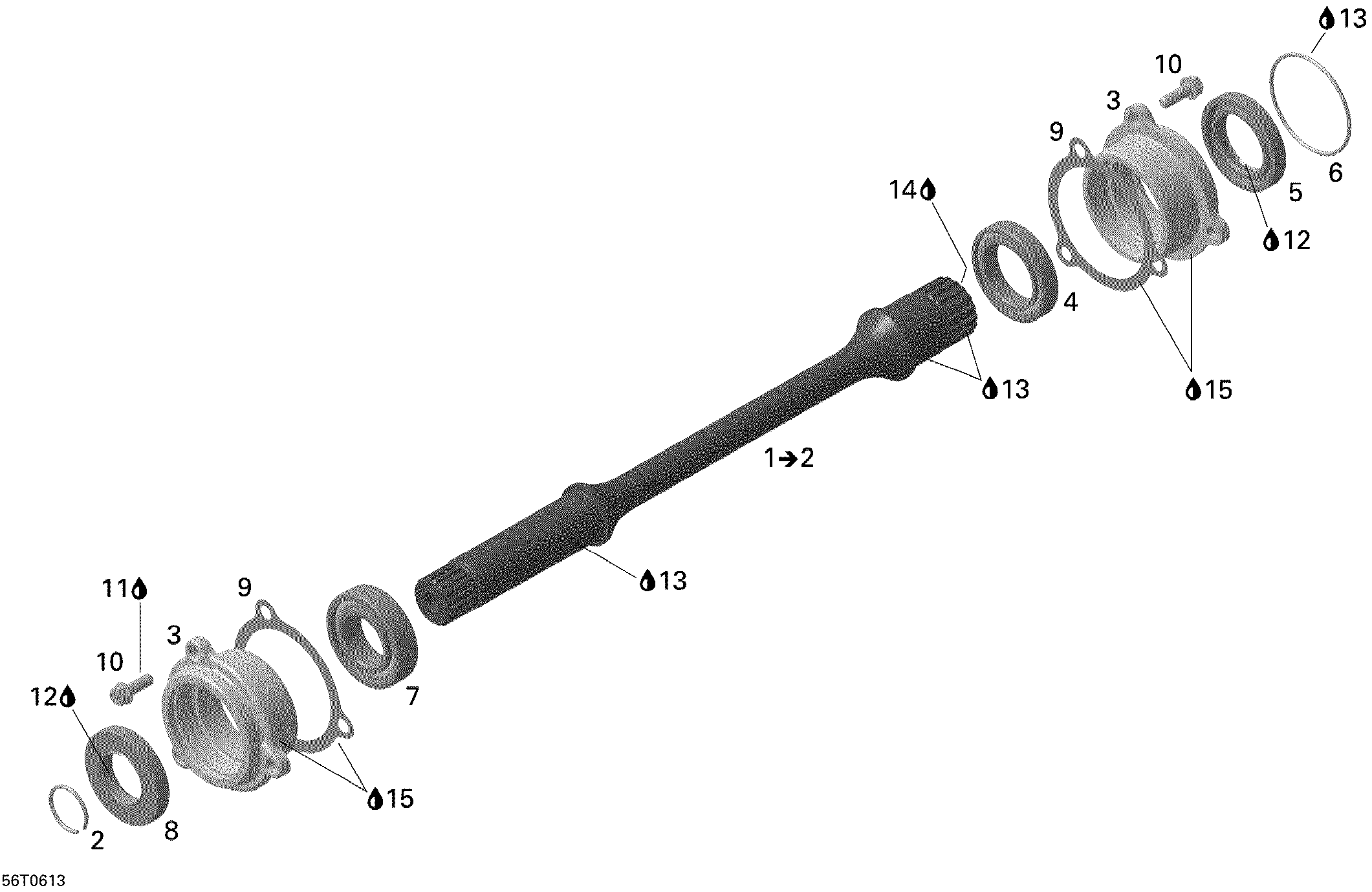

08- Drive Shaft (Up to engine number M6377191) для BRP Outlander MAX 650 STD 4 X 4 - 2006
-
№АртикулНазвание
-
1420620515 Drive Shaft Ass'y. Includes 1 to 2Drive Shaft Ass'y. Includes 1 to 2
-
2420245010 CirclipCirclip
-
3420611220 Bearing CoverBearing Cover
-
4420632275 Ball BearingBall Bearing
-
5420850055 Oil SealOil Seal
-
6420230305 O-ringO-ring
-
7420232340 Ball BearingBall Bearing
-
8420430589 Oil SealOil Seal
-
9420430160 GasketGasket
-
10420440167 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
11293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
12293550030 Grease, Super LubeGrease, Super Lube
-
13293600039 Engine Oil 4 Strokes, 5w40, 12 X 1 LiterEngine Oil 4 Strokes, 5w40, 12 X 1 Liter
-
14293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
15293800038 Loctite 518, 50 mlLoctite 518, 50 ml
