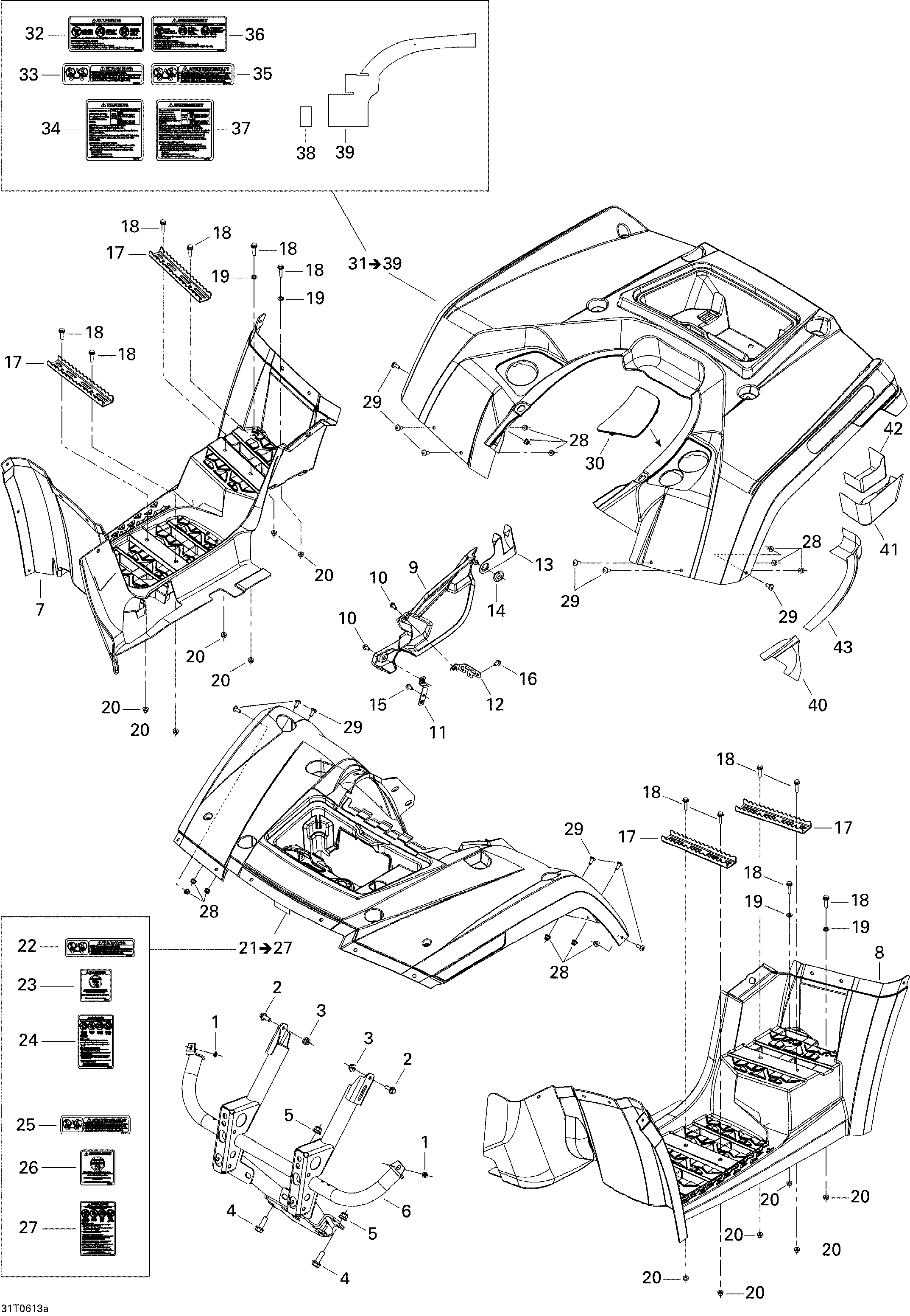

09- Body And Accessories 1, MAX STD для BRP Outlander MAX 650 STD 4 X 4 - 2006
‹-+›
-
№АртикулНазвание
-
1732610072 Push NutPush Nut
-
2207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
3233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
4207603044 Hex Flanged Screw M10 X 30Hex Flanged Screw M10 X 30
-
5233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
6705001827 Front BumperFront Bumper
-
7705001981 RH Footboard Ass'yRH Footboard Ass'y
-
8705001940 LH FootboardLH Footboard
-
9705001462 Engine CoverEngine Cover
-
10210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
11705000657 Engine Cover SupportEngine Cover Support
-
12705001826 Engine Cover SupportEngine Cover Support
-
13705002121 Engine Cover SupportEngine Cover Support
-
14705005156 Oblong WasherOblong Washer
-
15210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
16207561244 Hex Flanged Screw M6 X 12, Scotch GripHex Flanged Screw M6 X 12, Scotch Grip
-
17705000428 FootrestFootrest
-
18207662584 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
19234161471 Lock Washer M6, BlackLock Washer M6, Black
-
20233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
21703500588 Front Fender, Red. Includes 21 to 27, Viper RedFront Fender, Red. Includes 21 to 27, Viper Red
-
21703500589 Front Fender, Yellow. Includes 21 to 27, YellowFront Fender, Yellow. Includes 21 to 27, Yellow
-
21703500590 Front Fender, Green. Includes 21 to 27, Laurentian GreenFront Fender, Green. Includes 21 to 27, Laurentian Green
-
22704901089 Warning Label, LoadWarning Label, Load
-
23704900642 Warning Label, Under 16 Years OldWarning Label, Under 16 Years Old
-
24704900904 Warning Label, Death And InjuriesWarning Label, Death And Injuries
-
25704901090 Warning Label, LoadWarning Label, Load
-
26704900436 Warning Label, Under 16 Years OldWarning Label, Under 16 Years Old
-
27704900905 Warning Label, Death And InjuriesWarning Label, Death And Injuries
-
28233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
29250000129 Truss Torx Screw M6 X 16Truss Torx Screw M6 X 16
-
30705001910 LH Cap, BlackLH Cap, Black
-
31703500559 Rear Fender, Red. Includes 31 to 39, Viper RedRear Fender, Red. Includes 31 to 39, Viper Red
-
31703500560 Rear Fender, Yellow. Includes 31 to 39, YellowRear Fender, Yellow. Includes 31 to 39, Yellow
-
31703500561 Rear Fender, Green. Includes 31 to 39, Laurentian GreenRear Fender, Green. Includes 31 to 39, Laurentian Green
-
32704901113 Warning Label, Under 12 Years Old. English VersionWarning Label, Under 12 Years Old. English Version
-
33704901089 Warning Label, Load. English VersionWarning Label, Load. English Version
-
34704901120 Warning Label, Tire Pressure. English VersionWarning Label, Tire Pressure. English Version
-
35704901090 Warning Label, Load. French VersionWarning Label, Load. French Version
-
36704901122 Warning Label, Under 12 Years Old. French VersionWarning Label, Under 12 Years Old. French Version
-
37704901121 Warning Label, Tire Pressure. French VersionWarning Label, Tire Pressure. French Version
-
38705000809 Reflective SheetReflective Sheet
-
39705002043 Reflective SheetReflective Sheet
-
40705002014 Reflective SheetReflective Sheet
-
41705002191 Reflective SheetReflective Sheet
-
42705002189 Reflective SheetReflective Sheet
-
43705002085 Reflective SheetReflective Sheet
