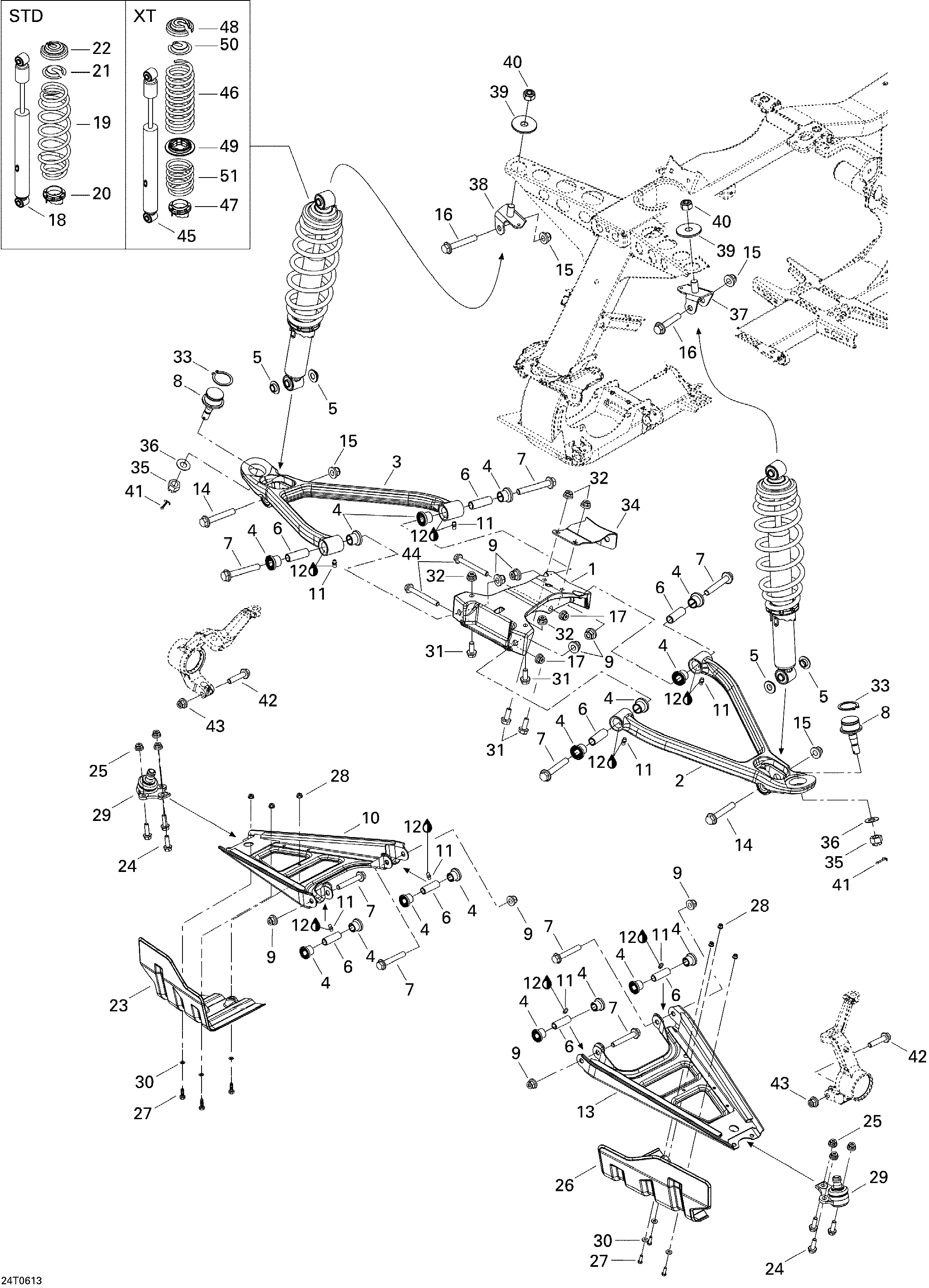

07- Front Suspension MAX STD для BRP Outlander MAX 650 STD 4 X 4 - 2006
-
№АртикулНазвание
-
1706200476 Upper Arm BracketUpper Arm Bracket
-
2706200554 LH Upper ArmLH Upper Arm
-
3706200555 RH Upper ArmRH Upper Arm
-
4706200181 CushionCushion
-
5706200423 Spacer BushingSpacer Bushing
-
6706200182 Inner BushingInner Bushing
-
7207607046 Hex Flanged Screw M10 X 70Hex Flanged Screw M10 X 70
-
8706200091 Ball JointBall Joint
-
9233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
10706200509 Suspension Arm, BlackSuspension Arm, Black
-
11408200700 Grease FittingGrease Fitting
-
12293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
13706200509 Suspension Arm, BlackSuspension Arm, Black
-
14207606546 Hex Flanged Screw M10 X 65Hex Flanged Screw M10 X 65
-
15233201416 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
16207605544 Hex Flanged Screw M10 X 55Hex Flanged Screw M10 X 55
-
17233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
18706200408 Front Shock. STDFront Shock. STD
-
19706200486 Front Spring. STDFront Spring. STD
-
20706000294 Adjuster Ring. STDAdjuster Ring. STD
-
21503140600 Spring Stopper. STDSpring Stopper. STD
-
22503141600 Cap. STDCap. STD
-
23706200214 RH ProtectorRH Protector
-
24207682544 Hex Flanged Screw M8 X 25Hex Flanged Screw M8 X 25
-
25233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
26706200213 LH ProtectorLH Protector
-
27207151644 Hex Screw M5 X 16Hex Screw M5 X 16
-
28233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
29706200444 Joint AttachmentJoint Attachment
-
30391301700 WasherWasher
-
31207682044 Hex Flanged Screw M8 X 20Hex Flanged Screw M8 X 20
-
32233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
33293370009 Circlip 32 mmCirclip 32 mm
-
34706200405 Upper Arm BracketUpper Arm Bracket
-
35250100045 Nut M12Nut M12
-
36706200281 Hardened WasherHardened Washer
-
37706200440 LH Upper BracketLH Upper Bracket
-
38706200441 RH Upper BracketRH Upper Bracket
-
39706200490 SpacerSpacer
-
40232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
41211400017 Cotter PinCotter Pin
-
42207604544 Hex Flanged Screw M10 X 45Hex Flanged Screw M10 X 45
-
43233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
44207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
