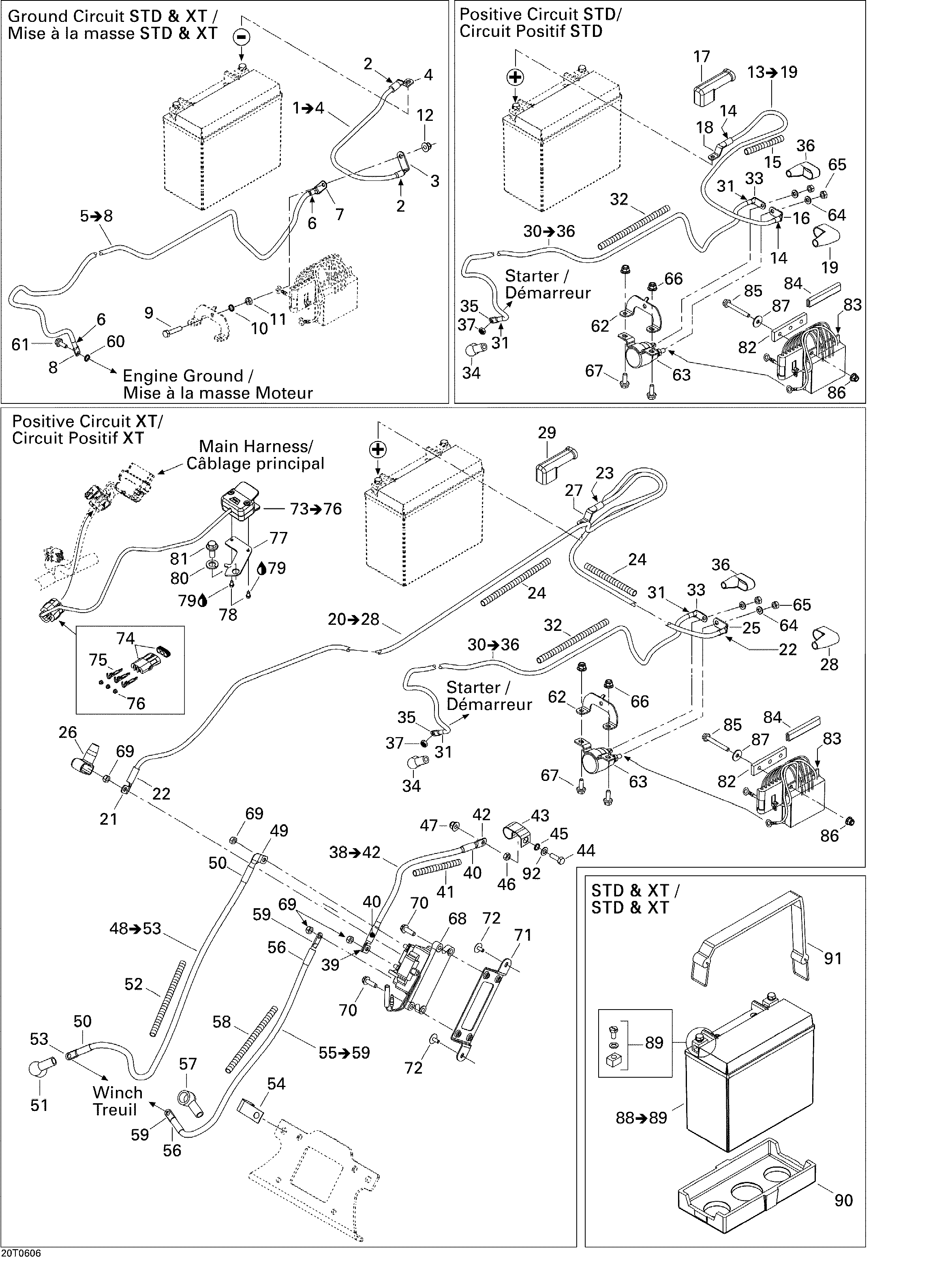

10- Electrical System, STD для BRP Outlander MAX 400 STD 4 X 4 - 2006

  • №
    Артикул
    Название
  • 1
    710000830 Ground Cable, Battery/frame. Includes 1 to 4
    Ground Cable, Battery/frame. Includes 1 to 4
  • 2
    710000483 Shrink Tubing
    Shrink Tubing
  • 3
    710000508 Open Barrel
    Open Barrel
  • 4
    710000518 Open Barrel
    Open Barrel
  • 5
    710000844 Ground Cable. Includes 5 to 8
    Ground Cable. Includes 5 to 8
  • 6
    710000483 Shrink Tubing
    Shrink Tubing
  • 7
    710000508 Open Barrel
    Open Barrel
  • 8
    710000530 Terminal
    Terminal
  • 9
    207162544 Hex Screw M6 X 25
    Hex Screw M6 X 25
  • 10
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 11
    232061414 Hex Nut M6
    Hex Nut M6
  • 12
    233061414 Hex Flanged Nut M6
    Hex Flanged Nut M6
  • 13
    710000834 Positive Cable. STD, Includes 13 to 19
    Positive Cable. STD, Includes 13 to 19
  • 14
    710000483 Shrink Tubing. STD
    Shrink Tubing. STD
  • 15
    710000497 Protector Tube, 9 mm. STD
    Protector Tube, 9 mm. STD
  • 16
    710000508 Open Barrel. STD
    Open Barrel. STD
  • 17
    710000516 Protector Cap. STD
    Protector Cap. STD
  • 18
    710000518 Open Barrel. STD
    Open Barrel. STD
  • 19
    710000902 Protector Cap. STD
    Protector Cap. STD
  • 30
    710000903 Positive Cable, Starter Relay/starter. Includes 30 to 36
    Positive Cable, Starter Relay/starter. Includes 30 to 36
  • 31
    710000483 Shrink Tubing
    Shrink Tubing
  • 32
    710000497 Protector Tube, 9 mm
    Protector Tube, 9 mm
  • 33
    710000508 Open Barrel
    Open Barrel
  • 34
    710000526 Protector Cap
    Protector Cap
  • 35
    710000530 Terminal
    Terminal
  • 36
    710000902 Protector Cap
    Protector Cap
  • 37
    232561600 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 60
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 61
    207561644 Hex Flanged Screw M6 X 16, Scotch Grip
    Hex Flanged Screw M6 X 16, Scotch Grip
  • 62
    705201325 Starter Relay Support
    Starter Relay Support
  • 63
    515176011 Starter Relay
    Starter Relay
  • 64
    234161601 Lock Washer Helical M6
    Lock Washer Helical M6
  • 65
    232061600 Hex Nut M6
    Hex Nut M6
  • 66
    233061414 Hex Flanged Nut M6
    Hex Flanged Nut M6
  • 67
    207661244 Hex Flanged Screw M6 X 12
    Hex Flanged Screw M6 X 12
  • 82
    710000912 Spacer
    Spacer
  • 83
    710000907 Voltage Regulator A'ssy
    Voltage Regulator A'ssy
  • 84
    271000110 Protection Trim
    Protection Trim
  • 85
    207665044 Hex Flanged Screw M6 X 50
    Hex Flanged Screw M6 X 50
  • 86
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 87
    224061201 Flat Washer
    Flat Washer
  • 88
    410922990 Battery, 18 Amperes. Includes 88 to 89
    Battery, 18 Amperes. Includes 88 to 89
  • 89
    295500849 Battery Fastener Kit
    Battery Fastener Kit
  • 90
    710000279 Insulator Pad
    Insulator Pad
  • 91
    293850097 Rubber Strap
    Rubber Strap
