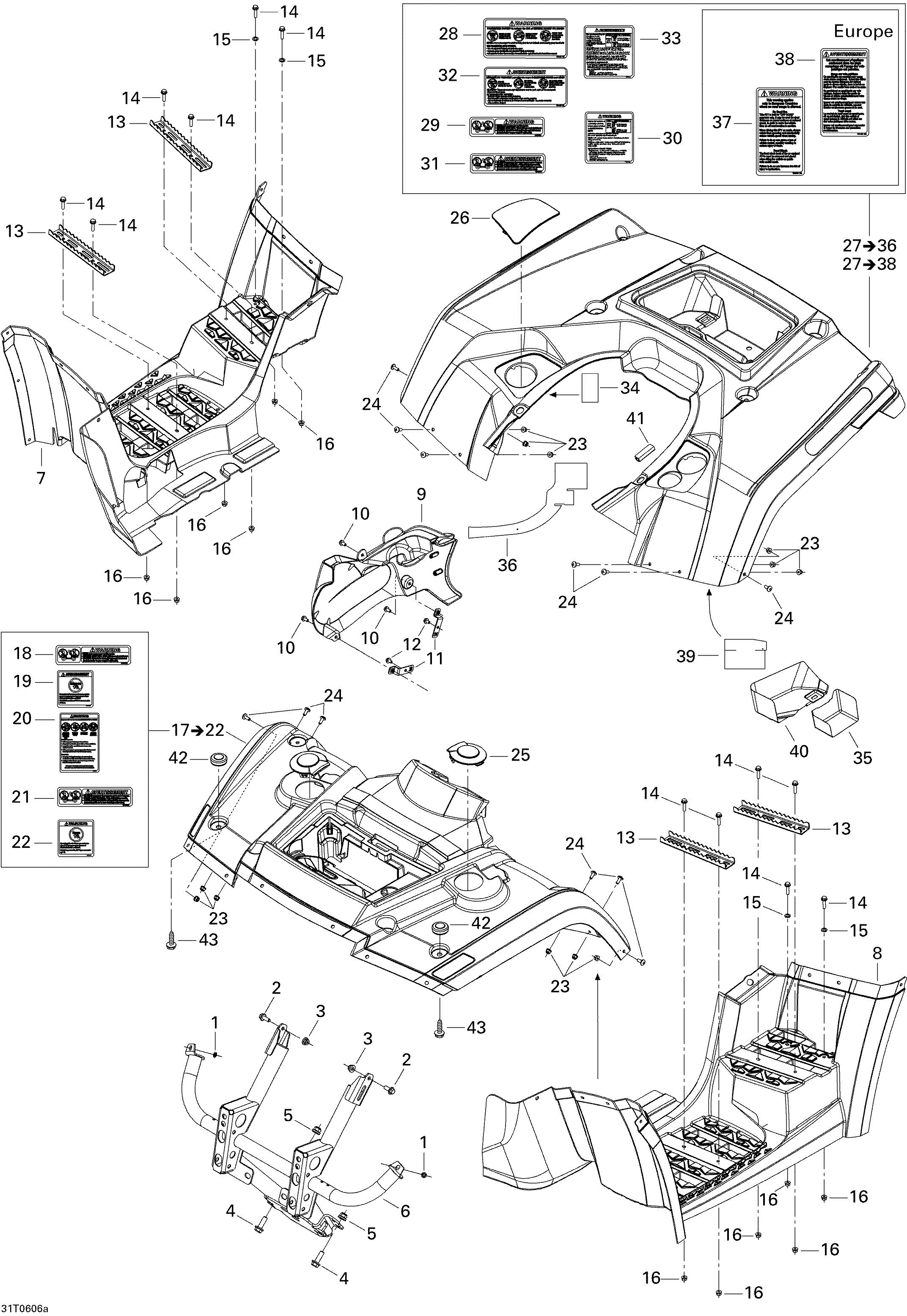

09- Body And Accessories для BRP Outlander MAX 400 STD 4 X 4 - 2006

  • №
    Артикул
    Название
  • 1
    732610072 Push Nut
    Push Nut
  • 2
    207682044 Hex Flanged Screw M8 X 20
    Hex Flanged Screw M8 X 20
  • 3
    233281414 Hex Flanged Elastic Nut M8
    Hex Flanged Elastic Nut M8
  • 4
    207603044 Hex Flanged Screw M10 X 30
    Hex Flanged Screw M10 X 30
  • 5
    233201414 Hex Flanged Elastic Nut M10
    Hex Flanged Elastic Nut M10
  • 6
    705001827 Front Bumper
    Front Bumper
  • 7
    705001981 RH Footboard Ass'y
    RH Footboard Ass'y
  • 8
    705001940 LH Footboard Ass'y
    LH Footboard Ass'y
  • 9
    705001518 Engine Cover
    Engine Cover
  • 10
    210261280 Hex Flanged Forming Screw M6 X 12
    Hex Flanged Forming Screw M6 X 12
  • 11
    705000657 Engine Cover Support
    Engine Cover Support
  • 12
    210261280 Hex Flanged Forming Screw M6 X 12
    Hex Flanged Forming Screw M6 X 12
  • 13
    705000428 Footrest
    Footrest
  • 14
    207662584 Hex Flanged Screw M6 X 25
    Hex Flanged Screw M6 X 25
  • 15
    234161471 Lock Washer M6, Black
    Lock Washer M6, Black
  • 16
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 17
    703500531 Front Fender, Red. Red, Includes 17 to 22
    Front Fender, Red. Red, Includes 17 to 22
  • 17
    703500528 Front Fender, Green. Green, Includes 17 to 22
    Front Fender, Green. Green, Includes 17 to 22
  • 17
    703500526 Front Fender, Yellow. Yellow, Includes 17 to 22
    Front Fender, Yellow. Yellow, Includes 17 to 22
  • 18
    704901089 Warning Label, Load
    Warning Label, Load
  • 18
    704900453 Warning Label, Front Load. Yellow
    Warning Label, Front Load. Yellow
  • 19
    704900642 Warning Label, Under 16 Years Old
    Warning Label, Under 16 Years Old
  • 20
    704900904 Warning Label, Death And Injuries
    Warning Label, Death And Injuries
  • 21
    704901090 Warning Label, Load
    Warning Label, Load
  • 22
    704900436 Warning Label, Under 16 Years Old
    Warning Label, Under 16 Years Old
  • 23
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 24
    250000261 Truss Torx Screw M6 X 16
    Truss Torx Screw M6 X 16
  • 25
    705001999 Front Cap
    Front Cap
  • 26
    705001900 RH Cap
    RH Cap
  • 27
    703500559 Rear Fender, Red. Red, Includes 27 to 36
    Rear Fender, Red. Red, Includes 27 to 36
  • 27
    703500560 Rear Fender, Yellow. Yellow, Includes 27 to 36
    Rear Fender, Yellow. Yellow, Includes 27 to 36
  • 27
    703500561 Rear Fender, Green. Green, Includes 27 to 36
    Rear Fender, Green. Green, Includes 27 to 36
  • 27
    703500565 Rear Fender Kit, Red. Red, Europe, Includes 27 to 38
    Rear Fender Kit, Red. Red, Europe, Includes 27 to 38
  • 27
    703500566 Rear Fender, Yellow. Yellow, Europe, Includes 27 to 38
    Rear Fender, Yellow. Yellow, Europe, Includes 27 to 38
  • 27
    703500567 Rear Fender, Green. Green, Europe, Includes 27 to 38
    Rear Fender, Green. Green, Europe, Includes 27 to 38
  • 28
    704901113 Warning Label, Under 12 Years Old
    Warning Label, Under 12 Years Old
  • 29
    704901089 Warning Label, Load
    Warning Label, Load
  • 30
    704901120 Warning Label, Tire Pressure
    Warning Label, Tire Pressure
  • 31
    704901090 Warning Label, Load
    Warning Label, Load
  • 32
    704901122 Warning Label, Under 12 Years Old
    Warning Label, Under 12 Years Old
  • 33
    704901121 Warning Label, Tire Pressure
    Warning Label, Tire Pressure
  • 34
    705000809 Reflective Sheet
    Reflective Sheet
  • 35
    705002015 Reflective Sheet
    Reflective Sheet
  • 36
    705002043 Reflective Sheet
    Reflective Sheet
  • 37
    704901112 Warning Label, Road Use. Europe
    Warning Label, Road Use. Europe
  • 38
    704901158 Warning Label, Road Use. Europe
    Warning Label, Road Use. Europe
  • 39
    705002190 Reflective Sheet
    Reflective Sheet
  • 40
    705002188 Reflective Sheet
    Reflective Sheet
  • 41
    293200093 Neoprene Seal
    Neoprene Seal
  • 42
    705002042 Rubber Cap
    Rubber Cap
  • 43
    365901100 Hex Screw 12 X 3/4
    Hex Screw 12 X 3/4
