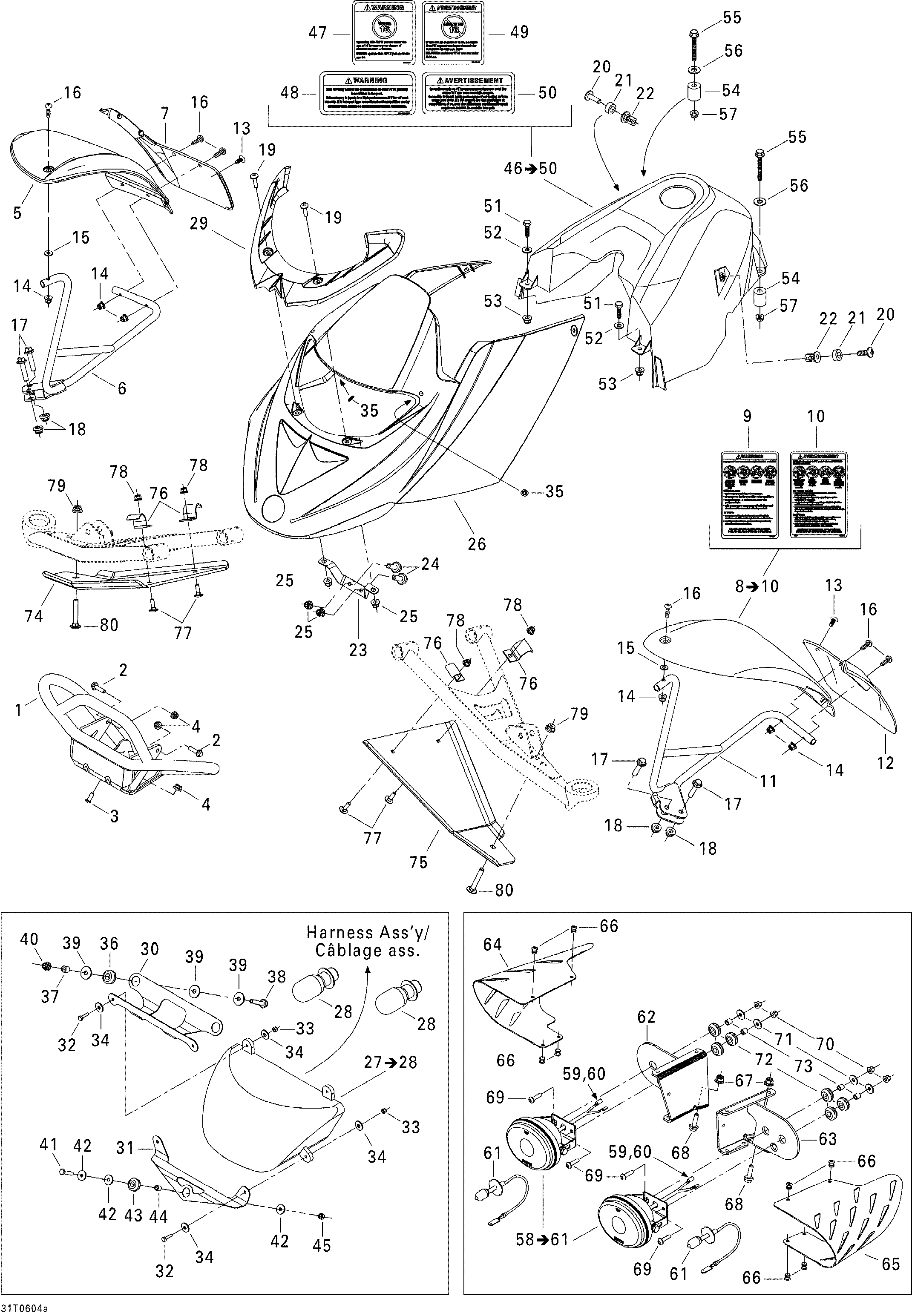

09- Body And Accessories, Front View для BRP DS 650 X - 2006

  • №
    Артикул
    Название
  • 1
    705000387 Front Bumper
    Front Bumper
  • 2
    207683044 Hex Flanged Screw M8 X 30
    Hex Flanged Screw M8 X 30
  • 3
    205482060 Socket Head Screw M8 X 20
    Socket Head Screw M8 X 20
  • 4
    233281414 Hex Flanged Elastic Nut M8
    Hex Flanged Elastic Nut M8
  • 5
    705000360 RH Front Fender, Black
    RH Front Fender, Black
  • 6
    705001090 RH Front Fender Support
    RH Front Fender Support
  • 7
    705000095 RH Front Mudguard
    RH Front Mudguard
  • 8
    703500127 LH Front Fender Kit, Black. Includes 8 to 10
    LH Front Fender Kit, Black. Includes 8 to 10
  • 9
    704900112 Warning Label, Death And Injuries. English Version
    Warning Label, Death And Injuries. English Version
  • 10
    704900002 Warning Label, Death And Injuries. French Version
    Warning Label, Death And Injuries. French Version
  • 11
    705001091 LH Front Fender Support
    LH Front Fender Support
  • 12
    705000096 LH Front Mudguard
    LH Front Mudguard
  • 13
    414939500 Dart
    Dart
  • 14
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 15
    224061201 Flat Washer
    Flat Washer
  • 16
    250000032 Phillips Screw M6 X 30
    Phillips Screw M6 X 30
  • 17
    207683544 Hex Flanged Screw M8 X 35
    Hex Flanged Screw M8 X 35
  • 18
    233281414 Hex Flanged Elastic Nut M8
    Hex Flanged Elastic Nut M8
  • 19
    250000147 Phillips Screw M6 X 25
    Phillips Screw M6 X 25
  • 20
    250000043 Phillips Screw M6 X 20, Scotch Grip
    Phillips Screw M6 X 20, Scotch Grip
  • 21
    506117300 Bushing
    Bushing
  • 22
    732610057 Jack Nut M6
    Jack Nut M6
  • 23
    705000146 Fascia Bracket, Black
    Fascia Bracket, Black
  • 24
    207661644 Hex Flanged Screw M6 X 16
    Hex Flanged Screw M6 X 16
  • 25
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 26
    705000888 Front Fascia, Black
    Front Fascia, Black
  • 27
    705000805 Headlamp. Includes 27 to 28
    Headlamp. Includes 27 to 28
  • 28
    710000685 Bulb
    Bulb
  • 29
    705000806 Headlamp Cover
    Headlamp Cover
  • 30
    705000905 Superior Lamp Braket
    Superior Lamp Braket
  • 31
    705000904 Lamp Support
    Lamp Support
  • 32
    207141644 Hex Screw M4 X 16
    Hex Screw M4 X 16
  • 33
    232541414 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 34
    234042600 Flat Washer 4 mm, Stailess
    Flat Washer 4 mm, Stailess
  • 35
    732610072 Push Nut
    Push Nut
  • 36
    293720053 Grommet
    Grommet
  • 37
    293900045 Bushing
    Bushing
  • 38
    207663044 Hex Flanged Screw M6 X 30
    Hex Flanged Screw M6 X 30
  • 39
    224061201 Flat Washer
    Flat Washer
  • 40
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 41
    207152544 Hex Screw M5 X 25
    Hex Screw M5 X 25
  • 42
    517124300 Washer
    Washer
  • 43
    414036300 Grommet
    Grommet
  • 44
    517245900 Bushing
    Bushing
  • 45
    232551414 Elastic Stop Nut M5
    Elastic Stop Nut M5
  • 46
    703500335 Tank Cover Kit. Includes 46 to 50
    Tank Cover Kit. Includes 46 to 50
  • 47
    704900113 Warning Label, Under 16 Years Old. English Version
    Warning Label, Under 16 Years Old. English Version
  • 48
    704900089 Warning Label, Performance. English Version
    Warning Label, Performance. English Version
  • 49
    704900012 Warning Label, Under 16 Years Old. French Version
    Warning Label, Under 16 Years Old. French Version
  • 50
    704900105 Warning Label, Performance. French Version
    Warning Label, Performance. French Version
  • 51
    207063044 Hex Screw M6 X 30
    Hex Screw M6 X 30
  • 52
    224061201 Flat Washer
    Flat Washer
  • 53
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 54
    705000114 Spacer
    Spacer
  • 55
    207686044 Hex Flanged Screw M8 X 60
    Hex Flanged Screw M8 X 60
  • 56
    224081201 Flat Washer
    Flat Washer
  • 57
    233281414 Hex Flanged Elastic Nut M8
    Hex Flanged Elastic Nut M8
  • 58
    710000268 Headlamp. Includes 58 to 61
    Headlamp. Includes 58 to 61
  • 59
    278001009 Female Terminal
    Female Terminal
  • 60
    278001007 Insulated Sheath
    Insulated Sheath
  • 61
    710000776 Bulb H3 35W
    Bulb H3 35W
  • 62
    705000397 RH Headlamp Support
    RH Headlamp Support
  • 63
    705000398 LH Headlamp Support
    LH Headlamp Support
  • 64
    705000399 RH Headlamp Protector
    RH Headlamp Protector
  • 65
    705000400 LH Headlamp Protector
    LH Headlamp Protector
  • 66
    390402000 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 67
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 68
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 69
    205452046 Socket Head Screw M5 X 20
    Socket Head Screw M5 X 20
  • 70
    233251414 Hex Flanged Elastic Nut M5
    Hex Flanged Elastic Nut M5
  • 71
    391301600 Washer
    Washer
  • 72
    414036300 Grommet
    Grommet
  • 73
    517245900 Bushing
    Bushing
  • 74
    705001055 LH Arm Protector
    LH Arm Protector
  • 75
    705001056 RH Arm Protector
    RH Arm Protector
  • 76
    705001057 Braket
    Braket
  • 77
    207762044 Carriage Bolt M6 X 20
    Carriage Bolt M6 X 20
  • 78
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 79
    233281414 Hex Flanged Elastic Nut M8
    Hex Flanged Elastic Nut M8
  • 80
    207785044 Carriage Bolt M8 X 50
    Carriage Bolt M8 X 50
