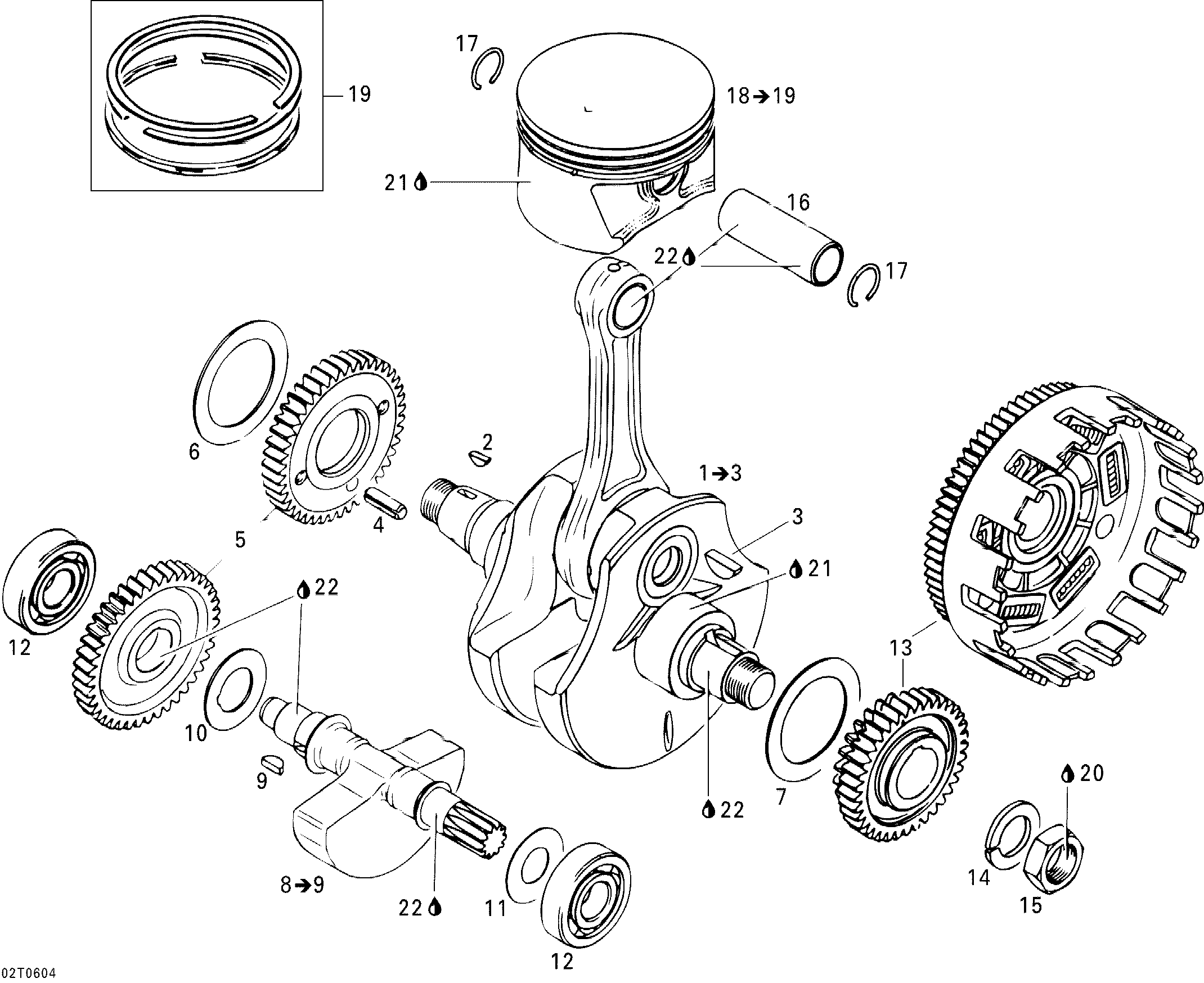

01- Crankshaft And Pistons для BRP DS 650 X - 2006

  • №
    Артикул
    Название
  • 1
    420295192 Crankshaft Ass'Y. Includes 1 to 3
    Crankshaft Ass'Y. Includes 1 to 3
  • 2
    420246570 Woodruff Key
    Woodruff Key
  • 3
    420946015 Woodruff Key 6 X 9
    Woodruff Key 6 X 9
  • 4
    732804009 Pin M8 X 24
    Pin M8 X 24
  • 5
    420294478 Balance Gear Ass'Y
    Balance Gear Ass'Y
  • 6
    420627030 Shim 48/67/1
    Shim 48/67/1
  • 7
    420627031 Shim 48/67/1,25''
    Shim 48/67/1,25''
  • 7
    420627032 Shim 48/67/1,5''
    Shim 48/67/1,5''
  • 7
    420627033 Shim 48/67/1,75''
    Shim 48/67/1,75''
  • 7
    420627035 Shim 48/67/1,4''
    Shim 48/67/1,4''
  • 8
    420220745 Balance Shaft Ass'Y. Includes 8 to 9
    Balance Shaft Ass'Y. Includes 8 to 9
  • 9
    420246570 Woodruff Key
    Woodruff Key
  • 10
    420227542 Thrust Washer 24,3/41/1
    Thrust Washer 24,3/41/1
  • 11
    420627070 Thrust Washer 20/41/0,8''
    Thrust Washer 20/41/0,8''
  • 11
    420627071 Thrust Washer 20/41/1
    Thrust Washer 20/41/1
  • 11
    420627072 Thrust Washer 20/41/1,2''
    Thrust Washer 20/41/1,2''
  • 11
    420627073 Thrust Washer 20/41/1,4''
    Thrust Washer 20/41/1,4''
  • 12
    420932090 Ball Bearing
    Ball Bearing
  • 13
    420296365 Primary Drive Ass'Y
    Primary Drive Ass'Y
  • 14
    420945759 Lock Washer
    Lock Washer
  • 15
    420842234 Hex Nut M22
    Hex Nut M22
  • 16
    420216201 Piston Pin
    Piston Pin
  • 17
    420245435 Circlip #22
    Circlip #22
  • 18
    420295185 Piston Ass'Y. Includes 18 to 19
    Piston Ass'Y. Includes 18 to 19
  • 19
    420295184 Piston Ring Set
    Piston Ring Set
  • 20
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 21
    293600039 Engine Oil 4 Strokes, 5w40, 12 X 1 Liter
    Engine Oil 4 Strokes, 5w40, 12 X 1 Liter
  • 22
    420899271 Petamo Grease, Ghy133n, 400 G
    Petamo Grease, Ghy133n, 400 G
