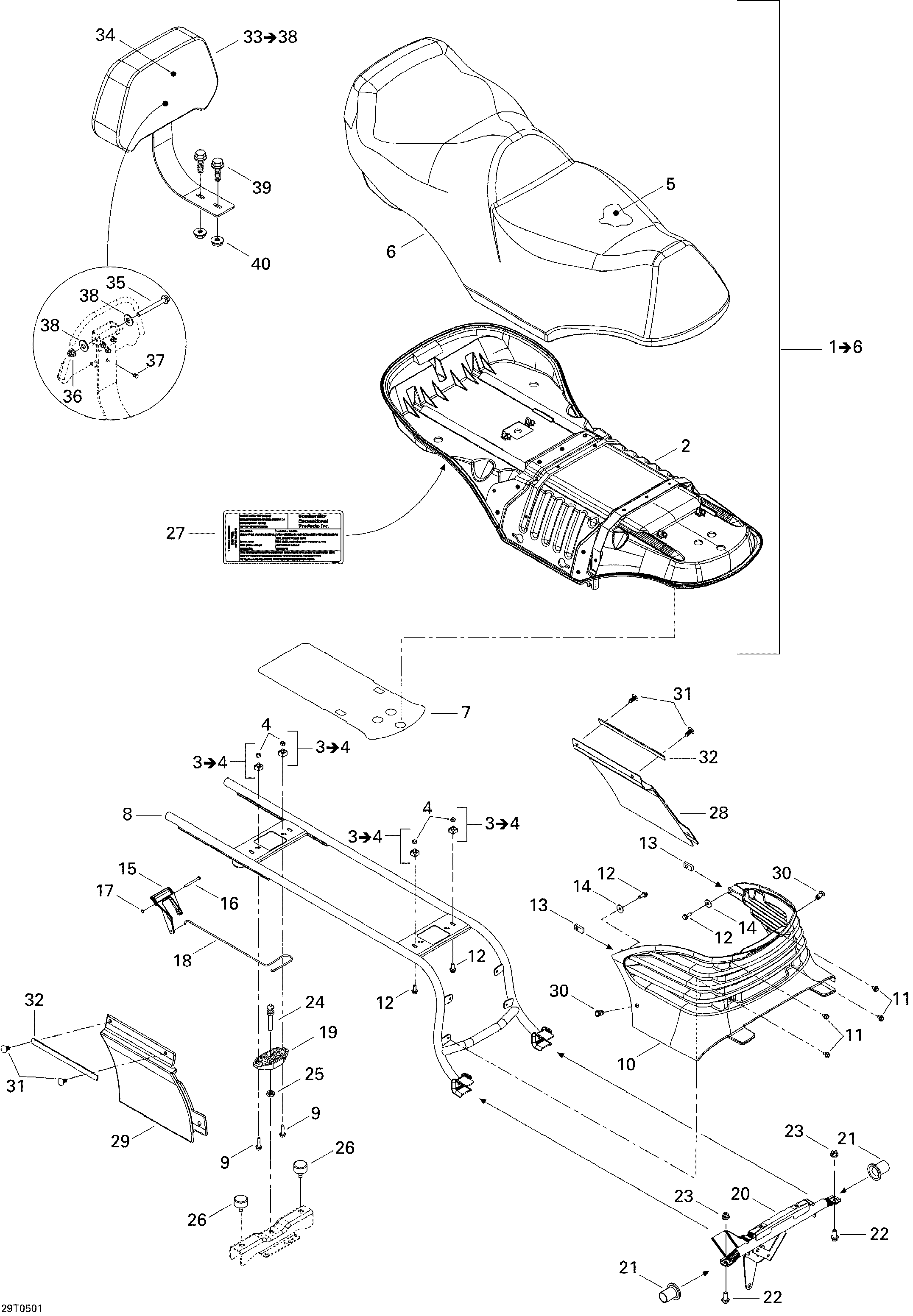

09- Seat для BRP Traxter Max Std & Max XT - 2005

  • №
    Артикул
    Название
  • 1
    708000392 Seat Ass'y. Includes 1 To 6, STD, Viper Red
    Seat Ass'y. Includes 1 To 6, STD, Viper Red
  • 1
    708000393 Seat Ass'y. Includes 1 To 6, XT, Yellow
    Seat Ass'y. Includes 1 To 6, XT, Yellow
  • 1
    708000394 Seat Ass'y. Includes 1 To 6, STD & XT, L. Green
    Seat Ass'y. Includes 1 To 6, STD & XT, L. Green
  • 3
    269500252 M6 Nut Housing Ass'y. Includes 3 To 4
    M6 Nut Housing Ass'y. Includes 3 To 4
  • 4
    232061600 Hexagonal Nut M6
    Hexagonal Nut M6
  • 6
    708000395 Seat Cover. STD, Viper Red
    Seat Cover. STD, Viper Red
  • 6
    708000396 Seat Cover. XT, Yellow
    Seat Cover. XT, Yellow
  • 6
    708000397 Seat Cover. STD & XT, L.Green
    Seat Cover. STD & XT, L.Green
  • 7
    708000434 Reflective Sheet
    Reflective Sheet
  • 8
    708000345 Seat Support
    Seat Support
  • 9
    207662544 Hex Flanged Screw M6 X 25
    Hex Flanged Screw M6 X 25
  • 10
    708000388 Engine Cover
    Engine Cover
  • 11
    210261080 Hex Flanged Forming Screw M6 X 10
    Hex Flanged Forming Screw M6 X 10
  • 12
    207561644 Hex Flanged Screw M6x16 (scotch Grip)
    Hex Flanged Screw M6x16 (scotch Grip)
  • 13
    708000042 Nut Housing M6
    Nut Housing M6
  • 14
    224061201 Flat Washer
    Flat Washer
  • 15
    708000010 Lever Latch
    Lever Latch
  • 16
    293150062 Solid Rivet 3/16 X 1-7/8
    Solid Rivet 3/16 X 1-7/8
  • 17
    389804300 Push Nut
    Push Nut
  • 18
    708000015 Spring
    Spring
  • 19
    708000034 Latch Base
    Latch Base
  • 20
    708000411 Seat Pivot
    Seat Pivot
  • 21
    708000019 Seat Bushing
    Seat Bushing
  • 22
    207682046 Hex Flanged Screw M8 X 20
    Hex Flanged Screw M8 X 20
  • 23
    233281416 Elastic Flange Nut M8
    Elastic Flange Nut M8
  • 24
    291000945 Seat Stud
    Seat Stud
  • 25
    232100600 Hex Jam Nut M10
    Hex Jam Nut M10
  • 26
    708000006 Rubber Stopper
    Rubber Stopper
  • 27
    704900876 Emission Label
    Emission Label
  • 28
    705000669 L.h. Panel. STD, Viper Red
    L.h. Panel. STD, Viper Red
  • 28
    705000694 L.h. Panel. XT, Yellow
    L.h. Panel. XT, Yellow
  • 28
    705000880 L.h. Panel. STD & XT, L.Green
    L.h. Panel. STD & XT, L.Green
  • 29
    705000670 R.h. Panel. STD, Viper Red
    R.h. Panel. STD, Viper Red
  • 29
    705000695 R.h. Panel. XT, Yellow
    R.h. Panel. XT, Yellow
  • 29
    705000881 R.h. Panel. STD & XT, L.Green
    R.h. Panel. STD & XT, L.Green
  • 30
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 31
    293730010 Dart (Black)
    Dart (Black)
  • 32
    293250087 Gasket
    Gasket
  • 33
    708000407 Backrest Ass'y. Includes 33 To 38
    Backrest Ass'y. Includes 33 To 38
  • 34
    708000408 Backrest Cover
    Backrest Cover
  • 35
    207089544 Hex Screw M8 X 95
    Hex Screw M8 X 95
  • 36
    233281414 Hex Flanged Elastic Nut M8
    Hex Flanged Elastic Nut M8
  • 37
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 38
    706200281 Hard Washer
    Hard Washer
  • 39
    207682544 Hex Flanged Screw M8 X 25
    Hex Flanged Screw M8 X 25
  • 40
    233281414 Hex Flanged Elastic Nut M8
    Hex Flanged Elastic Nut M8
