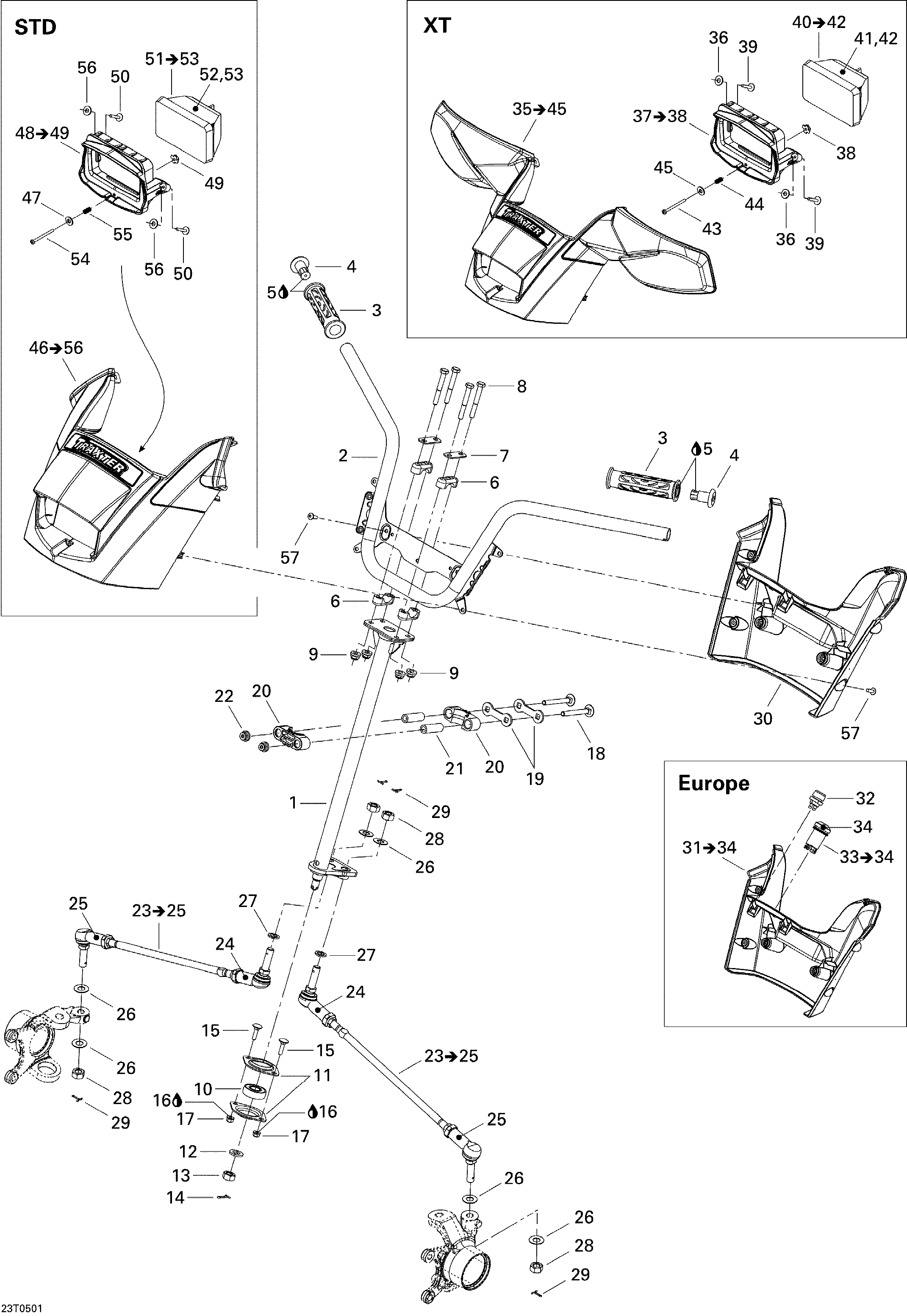

07- Steering System для BRP Traxter Max Std & Max XT - 2005

  • №
    Артикул
    Название
  • 1
    709400305 Main Tube, Black
    Main Tube, Black
  • 2
    709400300 Handle Bar
    Handle Bar
  • 3
    709400157 Grip, Black
    Grip, Black
  • 4
    709400189 End Piece
    End Piece
  • 5
    293800100 Loctite 406, 7 Oz
    Loctite 406, 7 Oz
  • 6
    506151622 Steering Support
    Steering Support
  • 7
    506151196 Reinforcement
    Reinforcement
  • 8
    207086046 Hex Screw M8 X 60
    Hex Screw M8 X 60
  • 9
    233281416 Elastic Flange Nut M8
    Elastic Flange Nut M8
  • 10
    709400224 Thrust Bearing
    Thrust Bearing
  • 11
    709400152 Thrust Washer
    Thrust Washer
  • 12
    234021410 Flat Washer 12 mm
    Flat Washer 12 mm
  • 13
    250100045 Nut M12
    Nut M12
  • 14
    211400017 Cotter Pin
    Cotter Pin
  • 15
    207762544 Carriage Bolt M6 X 25
    Carriage Bolt M6 X 25
  • 16
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 17
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 18
    207787044 Carriage Bolt M8 X 70
    Carriage Bolt M8 X 70
  • 19
    506150600 Stopper Plate
    Stopper Plate
  • 20
    709400034 Half-Housing
    Half-Housing
  • 21
    506150500 Housing Bushing
    Housing Bushing
  • 22
    233281414 Hex Flanged Elastic Nut M8
    Hex Flanged Elastic Nut M8
  • 23
    709400240 Tie Rod Ass'y. Includes 23 to 25
    Tie Rod Ass'y. Includes 23 to 25
  • 24
    709400241 RH Ball Joint
    RH Ball Joint
  • 25
    709400242 LH Ball Joint
    LH Ball Joint
  • 26
    706200281 Hard Washer
    Hard Washer
  • 27
    503189276 Washer
    Washer
  • 28
    250100045 Nut M12
    Nut M12
  • 29
    211400013 Cotter Pin
    Cotter Pin
  • 30
    709400273 Rear Steering Cover
    Rear Steering Cover
  • 31
    709400336 Rear Steering Cover Ass'y. Europe / Includes 31 to 34
    Rear Steering Cover Ass'y. Europe / Includes 31 to 34
  • 32
    415101200 Push Button. Europe
    Push Button. Europe
  • 33
    710000367 Emergency Switch. Europe / Includes 33 to 34
    Emergency Switch. Europe / Includes 33 to 34
  • 34
    710000661 Emergency Switch Light. Europe
    Emergency Switch Light. Europe
  • 35
    709400333 Front Steering Cover Ass'y. XT / Includes 35 to 45
    Front Steering Cover Ass'y. XT / Includes 35 to 45
  • 36
    250200025 Washer M5. XT
    Washer M5. XT
  • 37
    709400296 Light Stand Ass'y. XT / Includes 37 to 38
    Light Stand Ass'y. XT / Includes 37 to 38
  • 38
    250100030 T-nut, M4. XT
    T-nut, M4. XT
  • 39
    250000101 Plastite Screw Type K-40, M4 X 25. XT
    Plastite Screw Type K-40, M4 X 25. XT
  • 40
    710000712 Central Headlamp Ass'y. XT / Includes 40 to 42
    Central Headlamp Ass'y. XT / Includes 40 to 42
  • 41
    705000284 Lamp Housing. XT
    Lamp Housing. XT
  • 42
    710000762 Bulb. XT
    Bulb. XT
  • 44
    517168600 Spring. XT
    Spring. XT
  • 45
    250200025 Washer M5. XT
    Washer M5. XT
  • 46
    709400334 Front Steering Cover Ass'y. STD / Includes 46 to 56
    Front Steering Cover Ass'y. STD / Includes 46 to 56
  • 47
    250200025 Washer M5. STD
    Washer M5. STD
  • 48
    709400296 Light Stand Ass'y. STD / Includes 48 to 49
    Light Stand Ass'y. STD / Includes 48 to 49
  • 49
    250100030 T-nut, M4. STD
    T-nut, M4. STD
  • 50
    250000101 Plastite Screw Type K-40, M4 X 25. STD
    Plastite Screw Type K-40, M4 X 25. STD
  • 51
    710000712 Central Headlamp Ass'y. STD / Includes 51 to 53
    Central Headlamp Ass'y. STD / Includes 51 to 53
  • 52
    705000284 Lamp Housing. STD
    Lamp Housing. STD
  • 53
    710000762 Bulb. STD
    Bulb. STD
  • 55
    517168600 Spring. STD
    Spring. STD
  • 56
    250200025 Washer M5. STD
    Washer M5. STD
  • 57
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
