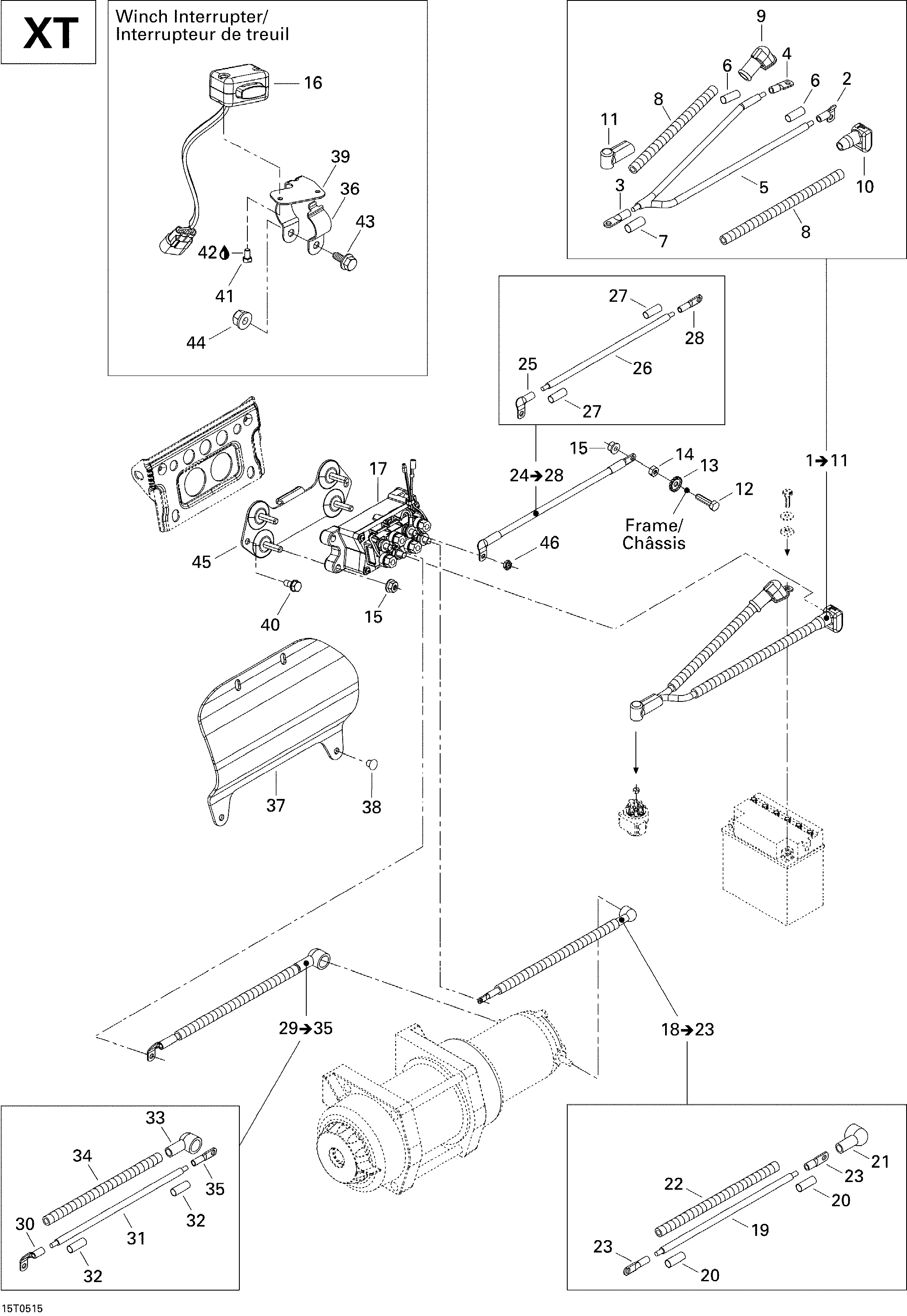

10- Winch, Electrical XT для BRP Traxter Max CVT 650 - 2005

  • №
    Артикул
    Название
  • 1
    710000434 Cable, Battery-solenoid. Includes 1 to 11
    Cable, Battery-solenoid. Includes 1 to 11
  • 2
    710000475 Open Barel 6.6 mm
    Open Barel 6.6 mm
  • 3
    710000478 Flat Open Barel 6.6 mm
    Flat Open Barel 6.6 mm
  • 4
    710000479 Flat Open Baril 6.6 mm
    Flat Open Baril 6.6 mm
  • 6
    710000483 Shrink Tubing
    Shrink Tubing
  • 7
    275500578 Shrink Tubing
    Shrink Tubing
  • 8
    710000497 Protector Tube 9 mm
    Protector Tube 9 mm
  • 9
    710000495 Protector Cap
    Protector Cap
  • 10
    710000523 Protector Cap
    Protector Cap
  • 11
    710000527 Protector Cap
    Protector Cap
  • 12
    207162044 Hex Cap Screw M6 X 20
    Hex Cap Screw M6 X 20
  • 13
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 14
    232061414 Hex Nut M6
    Hex Nut M6
  • 15
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 16
    710000827 Winch Interrupter
    Winch Interrupter
  • 17
    710000826 Winch Solenoid
    Winch Solenoid
  • 18
    710000438 Winch Solenoid Cable Ass'y. Includes 18 to 23
    Winch Solenoid Cable Ass'y. Includes 18 to 23
  • 20
    710000483 Shrink Tubing
    Shrink Tubing
  • 21
    710000494 Protector Cap
    Protector Cap
  • 22
    710000497 Protector Tube 9 mm
    Protector Tube 9 mm
  • 23
    710000530 Terminal
    Terminal
  • 24
    710000439 Frame Solenoid Cable Ass'y. Includes 24 to 28
    Frame Solenoid Cable Ass'y. Includes 24 to 28
  • 25
    710000475 Open Barel 6.6 mm
    Open Barel 6.6 mm
  • 27
    710000483 Shrink Tubing
    Shrink Tubing
  • 28
    710000530 Terminal
    Terminal
  • 29
    710000440 Winch Solenoid Cable Ass'y. Includes 29 to 35
    Winch Solenoid Cable Ass'y. Includes 29 to 35
  • 30
    710000476 Open Barel 6.6 mm
    Open Barel 6.6 mm
  • 32
    710000483 Shrink Tubing
    Shrink Tubing
  • 33
    710000494 Protector Cap
    Protector Cap
  • 34
    710000497 Protector Tube 9 mm
    Protector Tube 9 mm
  • 35
    710000530 Terminal
    Terminal
  • 36
    710000566 Collar
    Collar
  • 37
    710000511 Protector Pad
    Protector Pad
  • 38
    293730011 Dart, Black
    Dart, Black
  • 39
    710000564 Support, Black
    Support, Black
  • 40
    210261080 Hex Flanged Forming Screw M6 X 10
    Hex Flanged Forming Screw M6 X 10
  • 41
    250000153 Hex Cap Screw 6-32 X 1/4''
    Hex Cap Screw 6-32 X 1/4''
  • 42
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 43
    207661684 Hex Flanged Screw M6 X 16
    Hex Flanged Screw M6 X 16
  • 44
    233261494 Hex Elastic Flanged Nut M6
    Hex Elastic Flanged Nut M6
  • 45
    710000535 Solenoid Support, Black
    Solenoid Support, Black
  • 46
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
