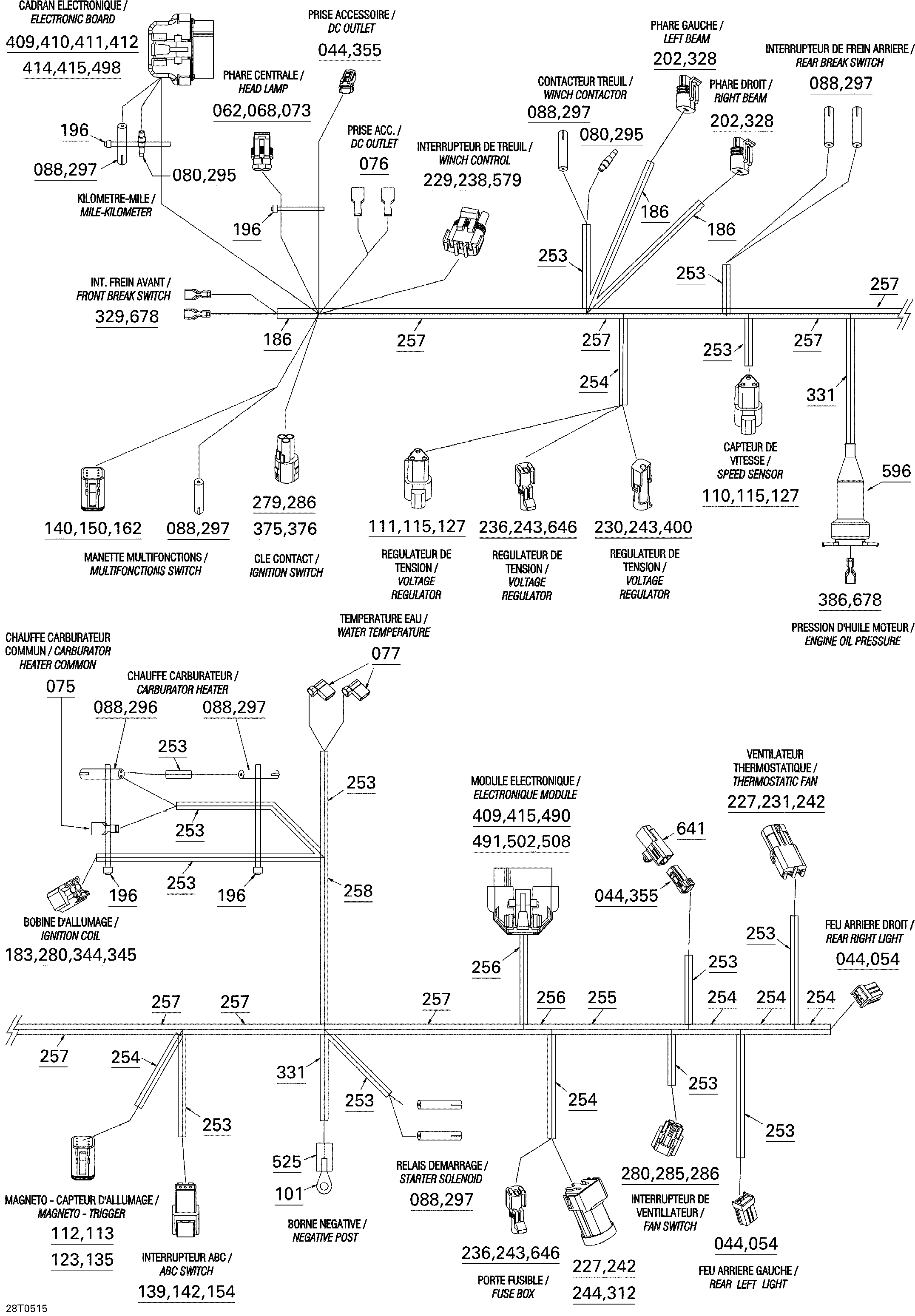

10- Electrical Harness, Frame для BRP Traxter Max CVT 650 - 2005

  • №
    Артикул
    Название
  • 1
    710000687 Harness Ass'y. Includes 001 to 678
    Harness Ass'y. Includes 001 to 678
  • 44
    515175231 Female Terminal 16-20 Awg
    Female Terminal 16-20 Awg
  • 54
    515175495 Female Housing, 3 Circuits
    Female Housing, 3 Circuits
  • 62
    278001014 Female Terminal
    Female Terminal
  • 68
    409209500 Female Housing, 2 Circuits
    Female Housing, 2 Circuits
  • 73
    278001013 Wire Seal
    Wire Seal
  • 75
    409010700 Female Terminal
    Female Terminal
  • 76
    409010800 Female Terminal
    Female Terminal
  • 77
    409010300 Female Terminal
    Female Terminal
  • 80
    278000230 Male Terminal
    Male Terminal
  • 88
    278001009 Female Terminal
    Female Terminal
  • 101
    278001392 Open Barrel
    Open Barrel
  • 110
    278000631 Male Terminal
    Male Terminal
  • 111
    515175823 Male Terminal
    Male Terminal
  • 112
    278000632 Female Terminal
    Female Terminal
  • 113
    278001661 Female Terminal
    Female Terminal
  • 115
    409207000 Male Housing, 3 Circuits
    Male Housing, 3 Circuits
  • 123
    278000736 Male Housing, 6 Circuits
    Male Housing, 6 Circuits
  • 127
    409207600 Male Lock, 3 Circuits
    Male Lock, 3 Circuits
  • 135
    278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)
    (Female) Secondary Lock (6 Circuits) (Deutsch)
  • 139
    409014800 Male Terminal
    Male Terminal
  • 140
    409015100 Female Terminal
    Female Terminal
  • 142
    710000044 Male Housing, 3 Circuits
    Male Housing, 3 Circuits
  • 150
    409015400 Female Housing, 6 Circuits
    Female Housing, 6 Circuits
  • 154
    710000043 (Male) Secondary Lock (3 Circuits) (Deutsch)
    (Male) Secondary Lock (3 Circuits) (Deutsch)
  • 162
    409014900 (Female) Secondary Lock (6 Circuits) (Deutsch)
    (Female) Secondary Lock (6 Circuits) (Deutsch)
  • 183
    710000189 Wire Seal
    Wire Seal
  • 186
    515175332 Vinyl Tubing, Low Temperature
    Vinyl Tubing, Low Temperature
  • 196
    293750002 Tie-Rap 130 mm
    Tie-Rap 130 mm
  • 202
    278001114 Female Terminal
    Female Terminal
  • 227
    409004300 Male Terminal
    Male Terminal
  • 229
    278000223 Female Terminal
    Female Terminal
  • 230
    278000161 Female Housing, 1 Circuit
    Female Housing, 1 Circuit
  • 231
    278000217 Female Housing, 2 Circuits
    Female Housing, 2 Circuits
  • 236
    278000219 Male Housing, 1 Circuit
    Male Housing, 1 Circuit
  • 238
    278000273 Male Housing, 3 Circuits
    Male Housing, 3 Circuits
  • 242
    278000218 Wire Seal
    Wire Seal
  • 243
    710000048 Wire Seal
    Wire Seal
  • 244
    278000216 Wire Seal
    Wire Seal
  • 253
    515175442 Tubing 6 mm
    Tubing 6 mm
  • 254
    409901700 Tubing 9 mm
    Tubing 9 mm
  • 255
    409901800 Tubing
    Tubing
  • 256
    415080000 Tubing 16 mm
    Tubing 16 mm
  • 257
    409901600 Tubing
    Tubing
  • 258
    415079900 Tubing 10 mm
    Tubing 10 mm
  • 267
    409901600 Tubing
    Tubing
  • 279
    409011300 Male Terminal
    Male Terminal
  • 280
    409012100 Female Terminal
    Female Terminal
  • 285
    710000078 Female Housing, 2 Circuits
    Female Housing, 2 Circuits
  • 286
    409012300 Seal
    Seal
  • 295
    278001008 Insulated Sheath
    Insulated Sheath
  • 296
    278000770 Insulated Sheet
    Insulated Sheet
  • 297
    278001007 Insulated Sheet
    Insulated Sheet
  • 312
    710000107 Male Housing, 5 Circuits
    Male Housing, 5 Circuits
  • 328
    278001467 Male Terminal Housing (3 Circuits)
    Male Terminal Housing (3 Circuits)
  • 329
    710000082 Female Terminal
    Female Terminal
  • 331
    710000244 Protector Tube 4 mm
    Protector Tube 4 mm
  • 344
    278001637 Femelle Housing, 2 Circuits
    Femelle Housing, 2 Circuits
  • 345
    278001640 Secondary Lock
    Secondary Lock
  • 355
    515175658 Female Housing, 2 Circuits
    Female Housing, 2 Circuits
  • 375
    710000218 Male Terminal
    Male Terminal
  • 376
    710000219 Femelle Housing, 3 Circuits
    Femelle Housing, 3 Circuits
  • 386
    710000255 Female Terminal
    Female Terminal
  • 400
    278001578 Lanyard Safety
    Lanyard Safety
  • 409
    515175812 Plug
    Plug
  • 410
    515175801 Female Housing, 24 Circuits
    Female Housing, 24 Circuits
  • 411
    515175802 Retainer Block
    Retainer Block
  • 412
    515175803 Wire Seal
    Wire Seal
  • 414
    515175805 Lock
    Lock
  • 415
    515175806 Female Terminal
    Female Terminal
  • 490
    710000394 Seal Wire
    Seal Wire
  • 491
    710000395 Female Housing
    Female Housing
  • 498
    710000399 Female Housing
    Female Housing
  • 502
    710000413 Housing
    Housing
  • 508
    710000424 Retainer Block
    Retainer Block
  • 525
    710000482 Shrink Tubing
    Shrink Tubing
  • 579
    710000504 Wire Seal
    Wire Seal
  • 596
    710000670 Cap
    Cap
  • 641
    710000667 Male Housing
    Male Housing
  • 646
    710000682 Female Terminal
    Female Terminal
  • 678
    710000750 Shrink Tubing
    Shrink Tubing
