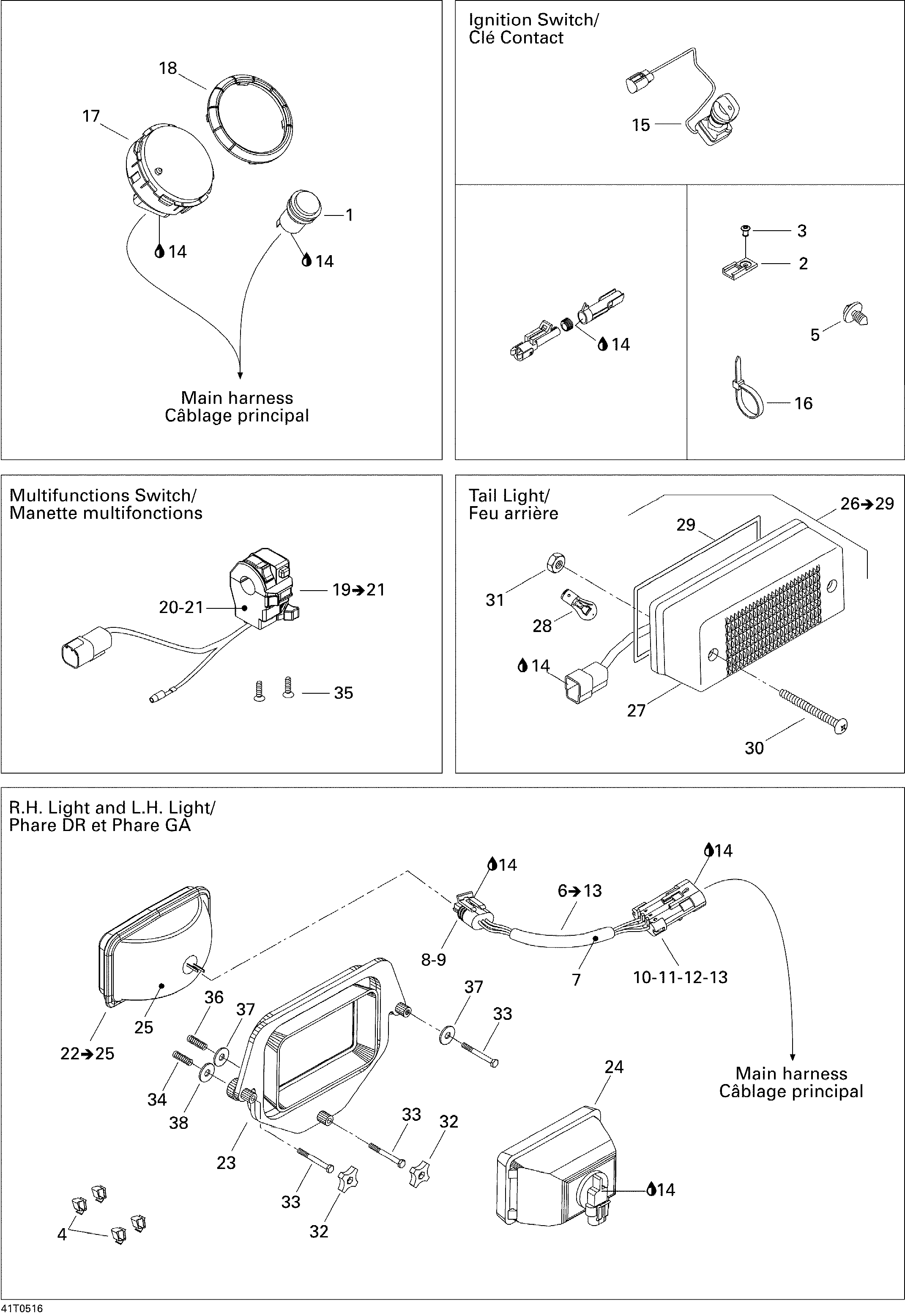

10- Electrical Accessories для BRP Traxter CVT (500, 650, 650 XT) - 2005
-
№АртикулНазвание
-
1861507200 Outlet (12 Volts)Outlet (12 Volts)
-
2270000141 ClipClip
-
3390402400 Pop-rivet 3/16''Pop-rivet 3/16''
-
4414227300 ClipClip
-
5293730018 Mount DartMount Dart
-
6710000720 Beam Adaptor Ass'y. Includes 6 to 13Beam Adaptor Ass'y. Includes 6 to 13
-
7515175332 Vinyl Tubing (low Temperature)Vinyl Tubing (low Temperature)
-
8278001114 Female TerminalFemale Terminal
-
9278001467 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
10710000643 SealSeal
-
11710000642 LockLock
-
14293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
15710000192 Ignition Switch Ass'yIgnition Switch Ass'y
-
15710000137 Blank Key (''A'' Type)Blank Key (''A'' Type)
-
15710000101 Blank Key (''B'' Type)Blank Key (''B'' Type)
-
16293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
16293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
16414115200 Tie-RapTie-Rap
-
17710000674 SpeedometerSpeedometer
-
18710000353 Trim RingTrim Ring
-
19710000404 Multi-Function Switch. Includes 19 to 21Multi-Function Switch. Includes 19 to 21
-
20710000631 ClipClip
-
21710000632 Choke LeverChoke Lever
-
22710000174 Headlamp Ass'y. Includes 22 to 25Headlamp Ass'y. Includes 22 to 25
-
23705000283 Lamp SupportLamp Support
-
24705000284 Lamp HousingLamp Housing
-
25710000176 BulbBulb
-
26710000711 Tail Light Housing Ass'y. Includes 26 to 29Tail Light Housing Ass'y. Includes 26 to 29
-
27710000055 Tail Light LensTail Light Lens
-
28410504100 Tail Light BulbTail Light Bulb
-
29710000129 GasketGasket
-
30208656091 Pan Head Phillips Screw M5 X 60Pan Head Phillips Screw M5 X 60
-
31233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
32572106600 HandleHandle
-
33250000008 Hex Screw K40 X 40Hex Screw K40 X 40
-
34710000285 SpringSpring
-
35205053588 Socket Screw M5 X 35Socket Screw M5 X 35
-
36517168600 SpringSpring
-
37234042600 Flat Washer 4 mmFlat Washer 4 mm
-
38234040600 Flat Washer 4 mmFlat Washer 4 mm
