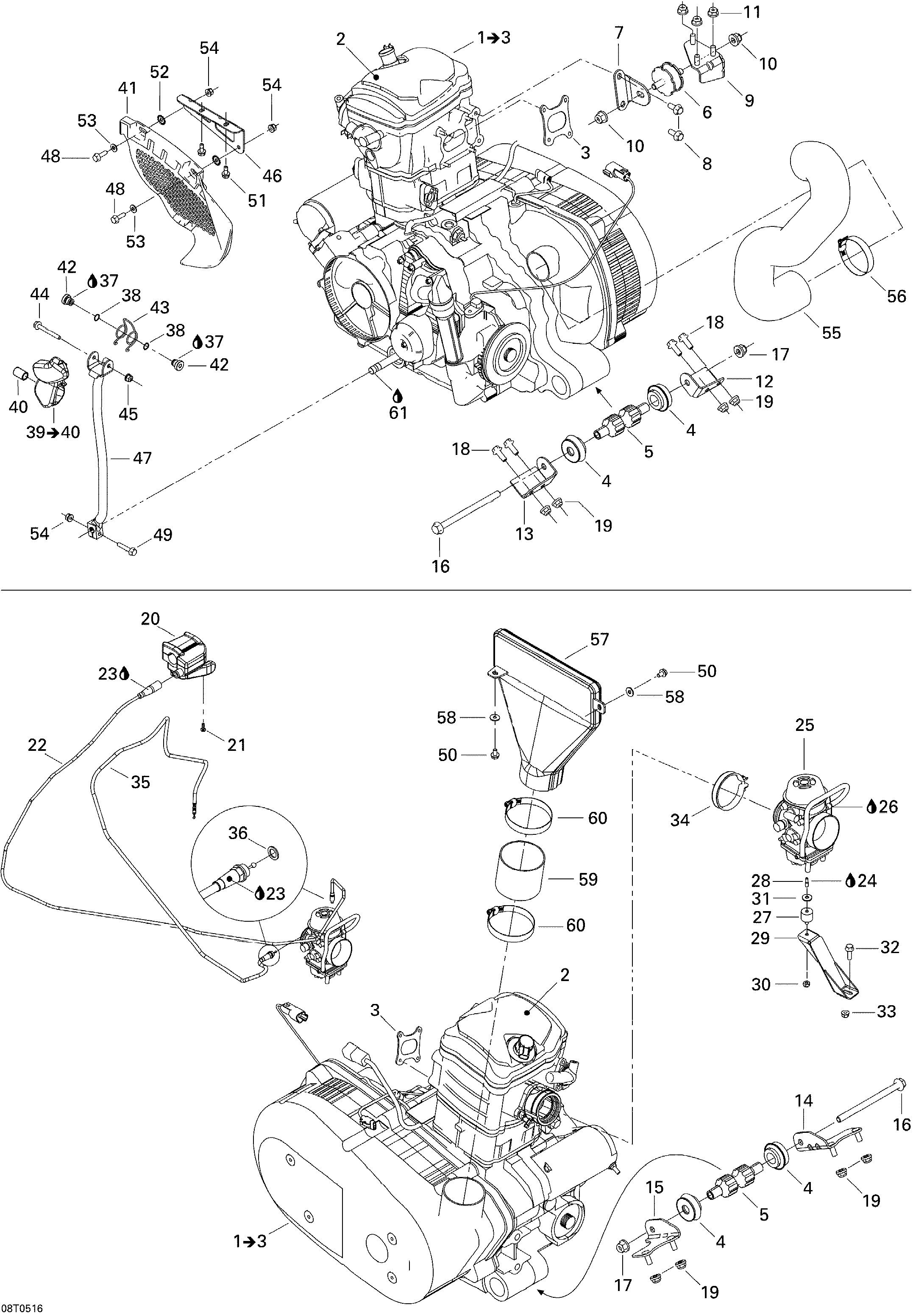

01- Engine And Engine Support для BRP Traxter CVT (500, 650, 650 XT) - 2005

  • №
    Артикул
    Название
  • 1
    707000358 Rotax 4 Stroke Engine''610''. Traxter 650 CVT, Includes 1 To 3
    Rotax 4 Stroke Engine''610''. Traxter 650 CVT, Includes 1 To 3
  • 1
    707000359 Rotax 4 Stroke Engine''514''. Traxter 500 CVT, Includes 1 To 3
    Rotax 4 Stroke Engine''514''. Traxter 500 CVT, Includes 1 To 3
  • 2
    420660201 Valve Cover
    Valve Cover
  • 3
    420950680 Gasket
    Gasket
  • 4
    707000094 Anti-Vibration Mount
    Anti-Vibration Mount
  • 5
    707000019 Engine Support Bushing
    Engine Support Bushing
  • 6
    707000174 Rubber Mount
    Rubber Mount
  • 7
    707000159 Engine Support (Black)
    Engine Support (Black)
  • 8
    207581646 Flanged Screw M8 X 16 (scotch Grip)
    Flanged Screw M8 X 16 (scotch Grip)
  • 9
    707000161 Engine Bracket
    Engine Bracket
  • 10
    233201414 Hex Flanged Elastic Nut M10
    Hex Flanged Elastic Nut M10
  • 11
    233281414 Hex Flanged Elastic Nut M8
    Hex Flanged Elastic Nut M8
  • 12
    707000132 LH. Front Engine Bracket (Black)
    LH. Front Engine Bracket (Black)
  • 13
    707000101 RH. Front Engine Bracket (Black)
    RH. Front Engine Bracket (Black)
  • 14
    707000207 RH. Rear Engine Bracket
    RH. Rear Engine Bracket
  • 15
    707000210 LH. Rear Engine Bracket
    LH. Rear Engine Bracket
  • 16
    230604044 Hex Flanged Screw M10 X 140
    Hex Flanged Screw M10 X 140
  • 17
    233201414 Hex Flanged Elastic Nut M10
    Hex Flanged Elastic Nut M10
  • 18
    207682044 Hex Flanged Screw M8 X 20
    Hex Flanged Screw M8 X 20
  • 19
    233281414 Hex Flanged Elastic Nut M8
    Hex Flanged Elastic Nut M8
  • 20
    707000370 Throttle Handle
    Throttle Handle
  • 21
    205052588 Socket Screw M5 X 25
    Socket Screw M5 X 25
  • 22
    707000313 Throttle Cable
    Throttle Cable
  • 23
    293600041 Cable Lubricant, 400 G
    Cable Lubricant, 400 G
  • 24
    293800060 Loctite 243, 10 ml
    Loctite 243, 10 ml
  • 25
    707200181 Carburetor Bsr42-7. Traxter 500 CVT
    Carburetor Bsr42-7. Traxter 500 CVT
  • 25
    707200186 Carburator Bsr42-8. Traxter 650 CVT
    Carburator Bsr42-8. Traxter 650 CVT
  • 26
    413708300 Glue Tube, Loctite 454, 20 G
    Glue Tube, Loctite 454, 20 G
  • 27
    707000248 A.Vibration Mount
    A.Vibration Mount
  • 28
    707000250 Threaded Insert
    Threaded Insert
  • 29
    707000252 Support
    Support
  • 30
    212000006 Elastic Stop Nut
    Elastic Stop Nut
  • 31
    391301600 Washer
    Washer
  • 32
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 33
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 34
    293650157 Gemi Clamp
    Gemi Clamp
  • 35
    707000314 Choke Cable
    Choke Cable
  • 36
    293300075 O-Ring
    O-Ring
  • 37
    293550010 Synthetic Grease, 400 G
    Synthetic Grease, 400 G
  • 38
    293300081 O-Ring
    O-Ring
  • 39
    705500282 Shifter Handle. Includes 39 To 40
    Shifter Handle. Includes 39 To 40
  • 40
    707000103 Bushing
    Bushing
  • 41
    707000139 Transmission Guide
    Transmission Guide
  • 42
    707000205 Pivot Sleeve
    Pivot Sleeve
  • 43
    705500283 Lever Spring
    Lever Spring
  • 44
    207665044 Hex Flanged Screw M6 X 50
    Hex Flanged Screw M6 X 50
  • 45
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 46
    707000297 Guide Support (Black)
    Guide Support (Black)
  • 47
    707000169 Lower Lever
    Lower Lever
  • 48
    207662544 Hex Flanged Screw M6 X25
    Hex Flanged Screw M6 X25
  • 49
    207663044 Hex Flanged Screw M6 X 30
    Hex Flanged Screw M6 X 30
  • 50
    210261080 Hex Flanged Forming Screw M6 X 10
    Hex Flanged Forming Screw M6 X 10
  • 51
    210261680 Hex Flanged Forming Screw M6 X 16
    Hex Flanged Forming Screw M6 X 16
  • 52
    250200041 Lock Washer Serrated M6
    Lock Washer Serrated M6
  • 53
    391302000 Flat Washer
    Flat Washer
  • 54
    233261414 Hex Flanged Elastic Nut M6
    Hex Flanged Elastic Nut M6
  • 55
    707000152 Air Intake
    Air Intake
  • 56
    293650023 Clamp Tridon
    Clamp Tridon
  • 57
    707000153 Exhaust
    Exhaust
  • 58
    224061201 Flat Washer
    Flat Washer
  • 59
    707000154 Flexible Adaptor
    Flexible Adaptor
  • 60
    293650064 Tridon Clamp
    Tridon Clamp
  • 61
    293800005 Loctite 271, 10 ml
    Loctite 271, 10 ml
