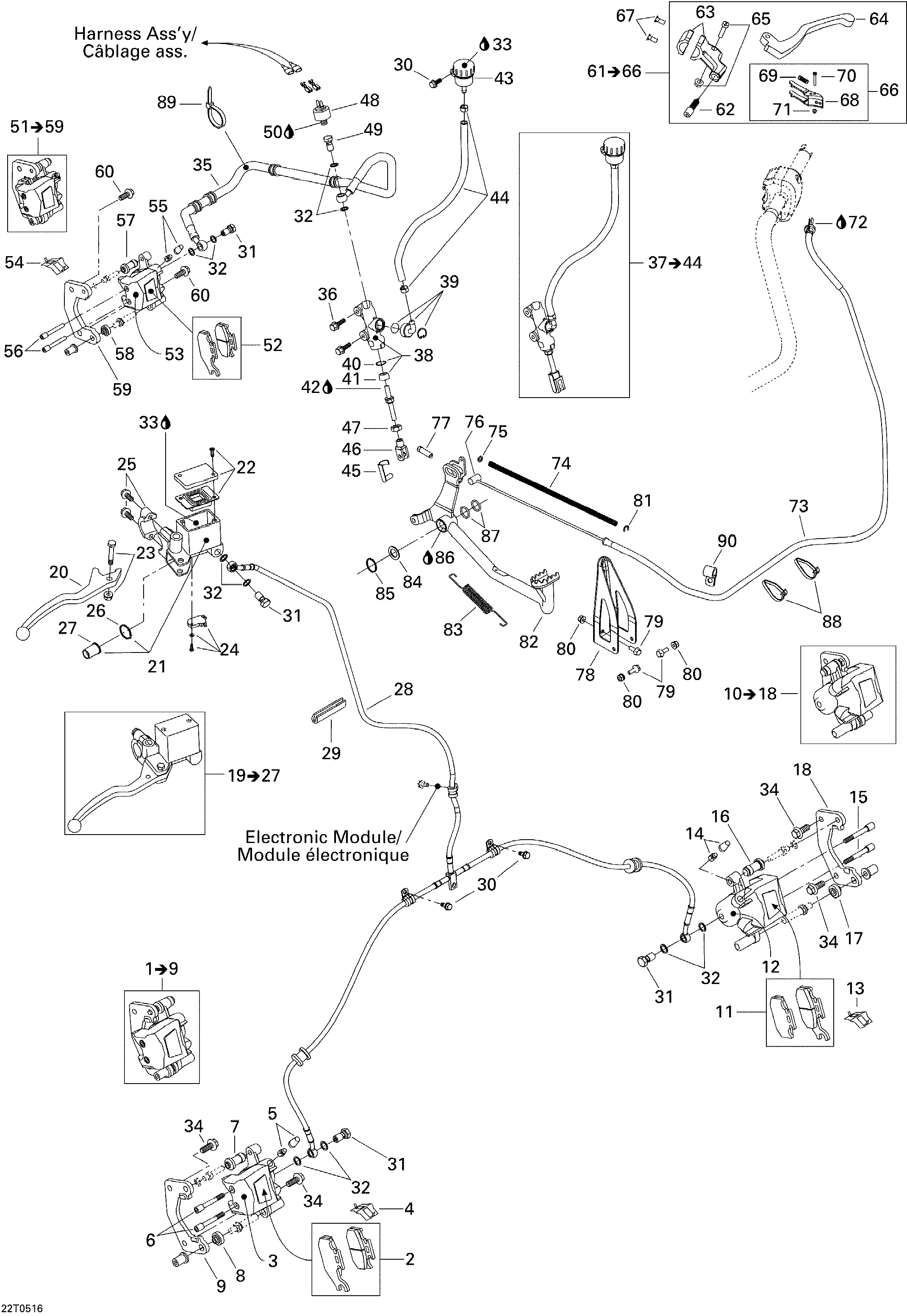

06- Hydraulic Brake для BRP Traxter CVT (500, 650, 650 XT) - 2005
-
№АртикулНазвание
-
1705600118 RH Caliper. Includes 1 to 9RH Caliper. Includes 1 to 9
-
2705600004 Brake Pad KitBrake Pad Kit
-
3705600078 Piston SetPiston Set
-
4705600079 SpringSpring
-
5705600080 Bleeder ScrewBleeder Screw
-
6705600081 Pin SetPin Set
-
7705600082 Compression BootCompression Boot
-
8705600083 Compression BootCompression Boot
-
10705600119 LH Caliper. Includes 10 to 18LH Caliper. Includes 10 to 18
-
11705600014 Brake Pad KitBrake Pad Kit
-
12705600078 Piston SetPiston Set
-
13705600079 SpringSpring
-
14705600080 Bleeder ScrewBleeder Screw
-
15705600081 Pin SetPin Set
-
16705600082 Compression BootCompression Boot
-
17705600083 Compression BootCompression Boot
-
19705600120 Front Master CylinderFront Master Cylinder
-
20705600164 Lever ArmLever Arm
-
21705600152 Piston KitPiston Kit
-
22705600084 Boot KitBoot Kit
-
23705600085 Bolt KitBolt Kit
-
24705600148 Switch KitSwitch Kit
-
25705600087 Bracket KitBracket Kit
-
26705600088 CirclipCirclip
-
27705600089 Compression BootCompression Boot
-
28705600290 Brake HoseBrake Hose
-
29414506600 TrimTrim
-
30210261680 Hex Flanged Forming Screw M6 X 16Hex Flanged Forming Screw M6 X 16
-
31705600396 Banjo BoltBanjo Bolt
-
32414920600 Washer For Hose ConnectionWasher For Hose Connection
-
33293600063 Brake Fluid, Srf (dot 4)Brake Fluid, Srf (dot 4)
-
33293600062 Brake Fluid, Gtlma (dot 4) 12 X 354 mlBrake Fluid, Gtlma (dot 4) 12 X 354 ml
-
34250000057 Hex Screw M10 X 20 (Scotch Grip)Hex Screw M10 X 20 (Scotch Grip)
-
35705600291 Flexeble HoseFlexeble Hose
-
36207581646 Flanged Screw M8 X 16, Scotch GripFlanged Screw M8 X 16, Scotch Grip
-
37705600154 Rear Master Cylinder Ass'Y. Includes 37 to 44Rear Master Cylinder Ass'Y. Includes 37 to 44
-
38705600063 Piston SetPiston Set
-
39705600064 Pusher BracketPusher Bracket
-
40705600068 CirclipCirclip
-
41705600090 Compression BootCompression Boot
-
43705600182 Oil TankOil Tank
-
44705600169 Oil Housing HoseOil Housing Hose
-
45250400007 PinPin
-
46705600100 YokeYoke
-
47232081414 Hex Nut M8Hex Nut M8
-
48710000734 Brake SwitchBrake Switch
-
49705600092 Banjo BoltBanjo Bolt
-
50293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
-
51705600122 Rear Caliper. Includes 51 to 59Rear Caliper. Includes 51 to 59
-
52705600150 Brake Pad KitBrake Pad Kit
-
53705600078 Piston SetPiston Set
-
54705600079 SpringSpring
-
55705600080 Bleeder ScrewBleeder Screw
-
56705600081 Pin SetPin Set
-
57705600082 Compression BootCompression Boot
-
58705600083 Compression BootCompression Boot
-
60250000163 Hex Screw M10 X 14 (Scotch Grip)Hex Screw M10 X 14 (Scotch Grip)
-
61705600269 Brake Handle. Includes 61 to 66Brake Handle. Includes 61 to 66
-
62250000030 Cable ScrewCable Screw
-
63705600270 Clamp KitClamp Kit
-
64705600186 LeverLever
-
65705600187 Pivot KitPivot Kit
-
66705600188 Lever Lock KitLever Lock Kit
-
67205351646 Socket Head Screw M5 X 16Socket Head Screw M5 X 16
-
68705600387 Lock LeverLock Lever
-
69705600225 SpringSpring
-
70208032291 Phillips Slotted Head Screw M3 X 22Phillips Slotted Head Screw M3 X 22
-
71232531423 Elastic Stop Nut M3Elastic Stop Nut M3
-
72293600041 Cable Lubricant, 400 GCable Lubricant, 400 G
-
73705600124 Rear Brake CableRear Brake Cable
-
74705600173 SpringSpring
-
75705600145 Flat WasherFlat Washer
-
76705600146 Cable BarrelCable Barrel
-
77705600388 NutNut
-
78705600191 Cable SupportCable Support
-
79207661644 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
80233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
81705600272 CirclipCirclip
-
82705600125 Brake Pedal (Black)Brake Pedal (Black)
-
83705600107 Brake Pedal SpringBrake Pedal Spring
-
84503107800 WasherWasher
-
85293370012 CirclipCirclip
-
86293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
87293300053 O-RingO-Ring
-
88414115200 Tie-RapTie-Rap
-
89293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
90414351600 ClipClip
