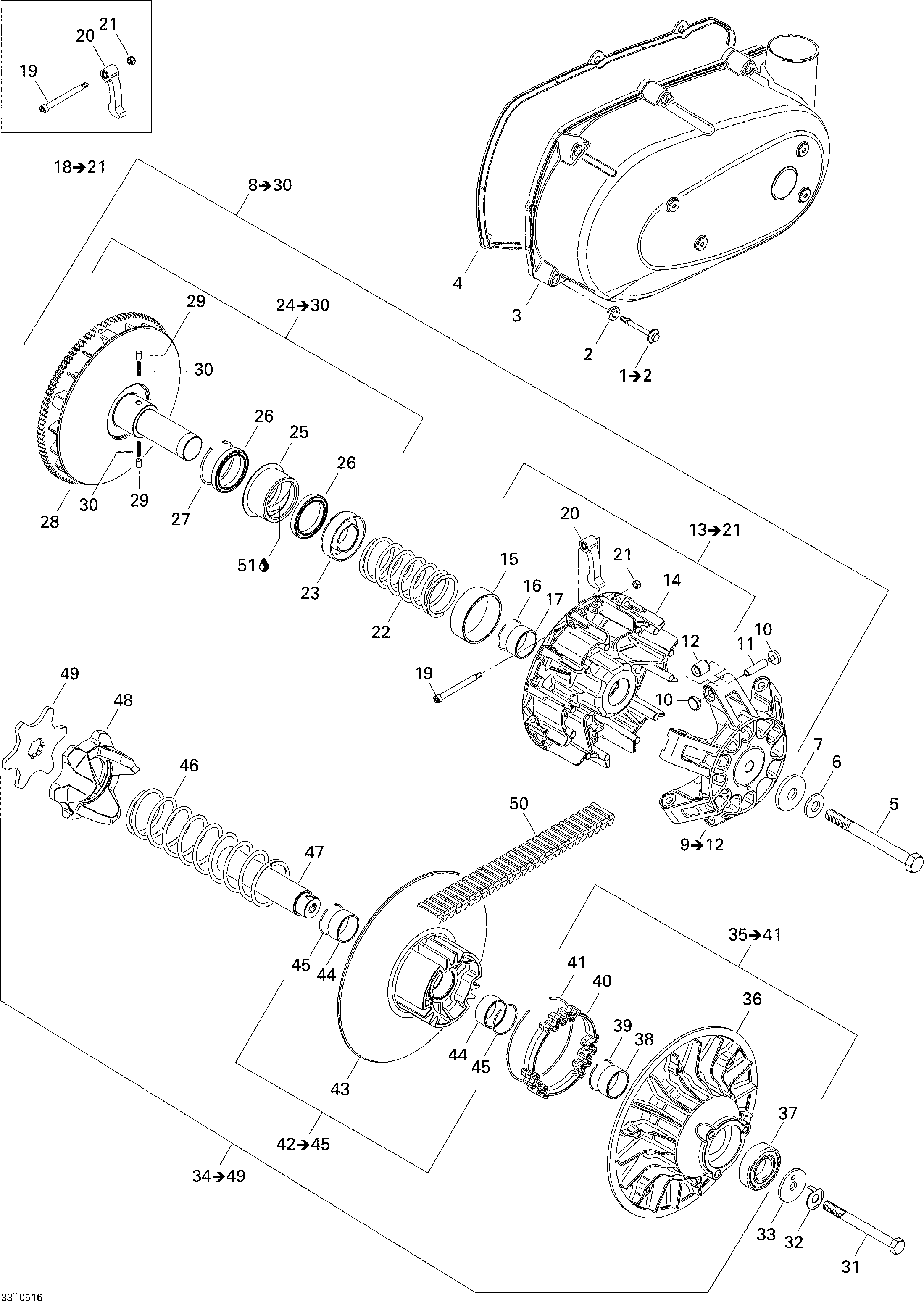

01- Belt and Engine Pulley System для BRP Traxter CVT (500, 650, 650 XT) - 2005

№

Артикул

Название
1

420240906 Hex Screw M6 X 47.9. Includes 1 To 2

Hex Screw M6 X 47.9. Includes 1 To 2

2 910 ₽
2

420260050 Rubber Bushing

Rubber Bushing

1 150 ₽
3

420610350 Transmission Cover

Transmission Cover

32 090 ₽
4

420630110 Gasket

Gasket

2 440 ₽
5

420641852 Hex. Screw M12x135

Hex. Screw M12x135

0 ₽
6

420627765 Spring Washer 12 mm

Spring Washer 12 mm

1 680 ₽
7

420627920 Thrust Washer

Thrust Washer

2 480 ₽
8

420684345 Cvt Drive Pulley Ass'y. Traxter 500 CVT, Includes 8 To 30

Cvt Drive Pulley Ass'y. Traxter 500 CVT, Includes 8 To 30

0 ₽
8

420684340 Cvt Drive Pulley Ass'y. Traxter 650 CVT, Includes 8 To 30

Cvt Drive Pulley Ass'y. Traxter 650 CVT, Includes 8 To 30

0 ₽
9

420280155 Governor Cup Ass'Y. Includes 9 To 12

Governor Cup Ass'Y. Includes 9 To 12

0 ₽
10

420281290 Shoe Slider Set

Shoe Slider Set

0 ₽
11

420233890 Roller Sleeve

Roller Sleeve

0 ₽
12

420229585 Roller

Roller

0 ₽
13

420280148 Outer Half Ass'y. Traxter 500 CVT, Includes 13 To 21

Outer Half Ass'y. Traxter 500 CVT, Includes 13 To 21

79 810 ₽
13

420280147 Outer Half Ass'y. Traxter 650 CVT, Includes 13 To 21

Outer Half Ass'y. Traxter 650 CVT, Includes 13 To 21

78 780 ₽
18

420248431 Centrifugal Lever Kit. Traxter 500 CVT, Includes 18 To 21

Centrifugal Lever Kit. Traxter 500 CVT, Includes 18 To 21

33 580 ₽
18

420248408 Centrifugal Lever Kit. Traxter 650 CVT, Includes 18 To 21

Centrifugal Lever Kit. Traxter 650 CVT, Includes 18 To 21

33 470 ₽
22

420238161 Compression Spring. Traxter 500 CVT

Compression Spring. Traxter 500 CVT

0 ₽
22

420238164 Compression Spring. Traxter 650 CVT

Compression Spring. Traxter 650 CVT

1 490 ₽
23

420627573 Spring Seat

Spring Seat

3 830 ₽
24

420281395 Inner Half Ass'y. Includes 24 To 30

Inner Half Ass'y. Includes 24 To 30

0 ₽
25

420257195 Drive Pulley Clutch

Drive Pulley Clutch

20 880 ₽
26

420632371 Ball Bearing 6808

Ball Bearing 6808

0 ₽
27

420245950 Retaining Ring

Retaining Ring

0 ₽
29

420229576 Spring Sleeve

Spring Sleeve

0 ₽
30

420239133 Spring

Spring

0 ₽
31

420941906 Hex Screw M10 X 110

Hex Screw M10 X 110

0 ₽
32

420245920 Tab Washer

Tab Washer

0 ₽
33

420627591 Thrust Washer

Thrust Washer

0 ₽
34

420684350 Cvt Driven Pulley Ass'y. Includes 34 To 49

Cvt Driven Pulley Ass'y. Includes 34 To 49

0 ₽
35

420280176 Outer Half Ass'Y. Includes 35 To 41

Outer Half Ass'Y. Includes 35 To 41

0 ₽
37

420932426 Ball Bearing 6205

Ball Bearing 6205

0 ₽
40

420660120 Torque Gear

Torque Gear

3 360 ₽
41

420245910 Retaining Ring

Retaining Ring

0 ₽
42

420280186 Driven Pulley Inner Half Ass'y. Includes 42 To 45

Driven Pulley Inner Half Ass'y. Includes 42 To 45

40 830 ₽
46

420238171 Compression Spring

Compression Spring

1 680 ₽
47

420220911 Driven Shaft

Driven Shaft

0 ₽
48

420280191 Driven Pulley Cam

Driven Pulley Cam

1 840 ₽
49

420627582 Cam Plate

Cam Plate

0 ₽
50

715900024 V-belt. Traxter 500 CVT

V-belt. Traxter 500 CVT

6 030 ₽
50

715900023 V-belt. Traxter 650 CVT

V-belt. Traxter 650 CVT

44 590 ₽
51

293800070 Loctite 767, Antiseize Lubricant, 8 Oz

Loctite 767, Antiseize Lubricant, 8 Oz

3 130 ₽
