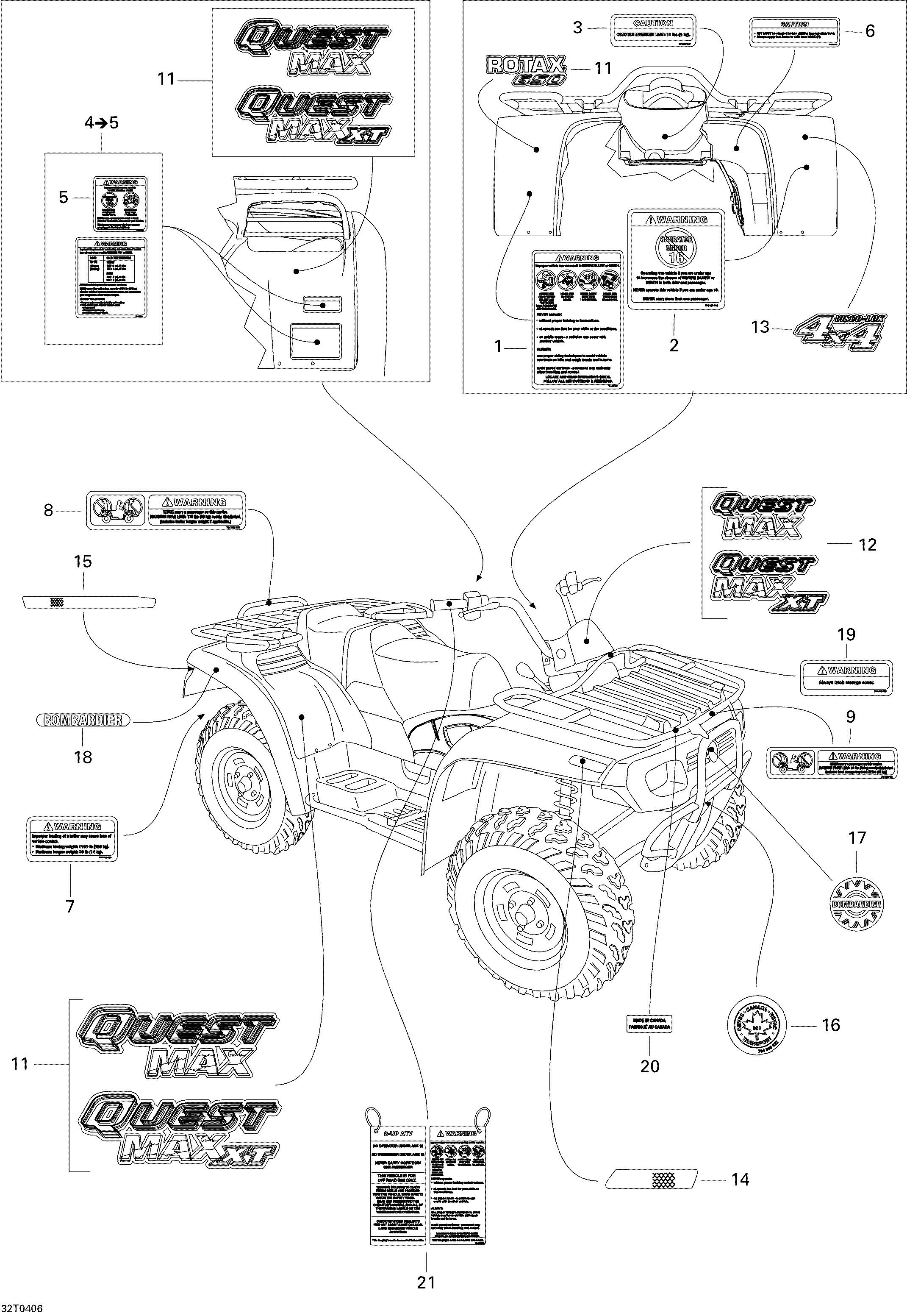

09- Decals для BRP Quest MAX - 2004
-
№АртикулНазвание
-
1704900451 Warning LabelWarning Label
-
2704900515 Warning LabelWarning Label
-
3704900247 Warning LabelWarning Label
-
4704900751 Warning Label Ass'Y (English)Warning Label Ass'Y (English)
-
5704900634 Warning Label (English)Warning Label (English)
-
6704900007 Warning Label (Transmission Selector)Warning Label (Transmission Selector)
-
7704900009 Warning Label (Hitch)Warning Label (Hitch)
-
8704900517 Warning LabelWarning Label
-
9704900453 Warning LabelWarning Label
-
10704900549 Rotax Label. REDRotax Label. RED
-
11704900645 RH. LH. Decal. STDRH. LH. Decal. STD
-
11704900647 RH. LH. Decal. XTRH. LH. Decal. XT
-
12704900655 Pod Label. STDPod Label. STD
-
12704900656 Pod Label. XTPod Label. XT
-
13704900585 4X4 Front Label. RED4X4 Front Label. RED
-
14705000026 RH Front ReflectorRH Front Reflector
-
14705000083 LH Front ReflectorLH Front Reflector
-
15704900085 RH Rear ReflectorRH Rear Reflector
-
15704900086 LH Rear ReflectorLH Rear Reflector
-
16704900032 Leaf DecalLeaf Decal
-
17704900130 Bombardier Logo 68 mmBombardier Logo 68 mm
-
18704900076 Bombardier LabelBombardier Label
-
19704900038 Warning Label (Tray Cover)Warning Label (Tray Cover)
-
20704900267 Canada DecalCanada Decal
-
21704900628 Warning LabelWarning Label
