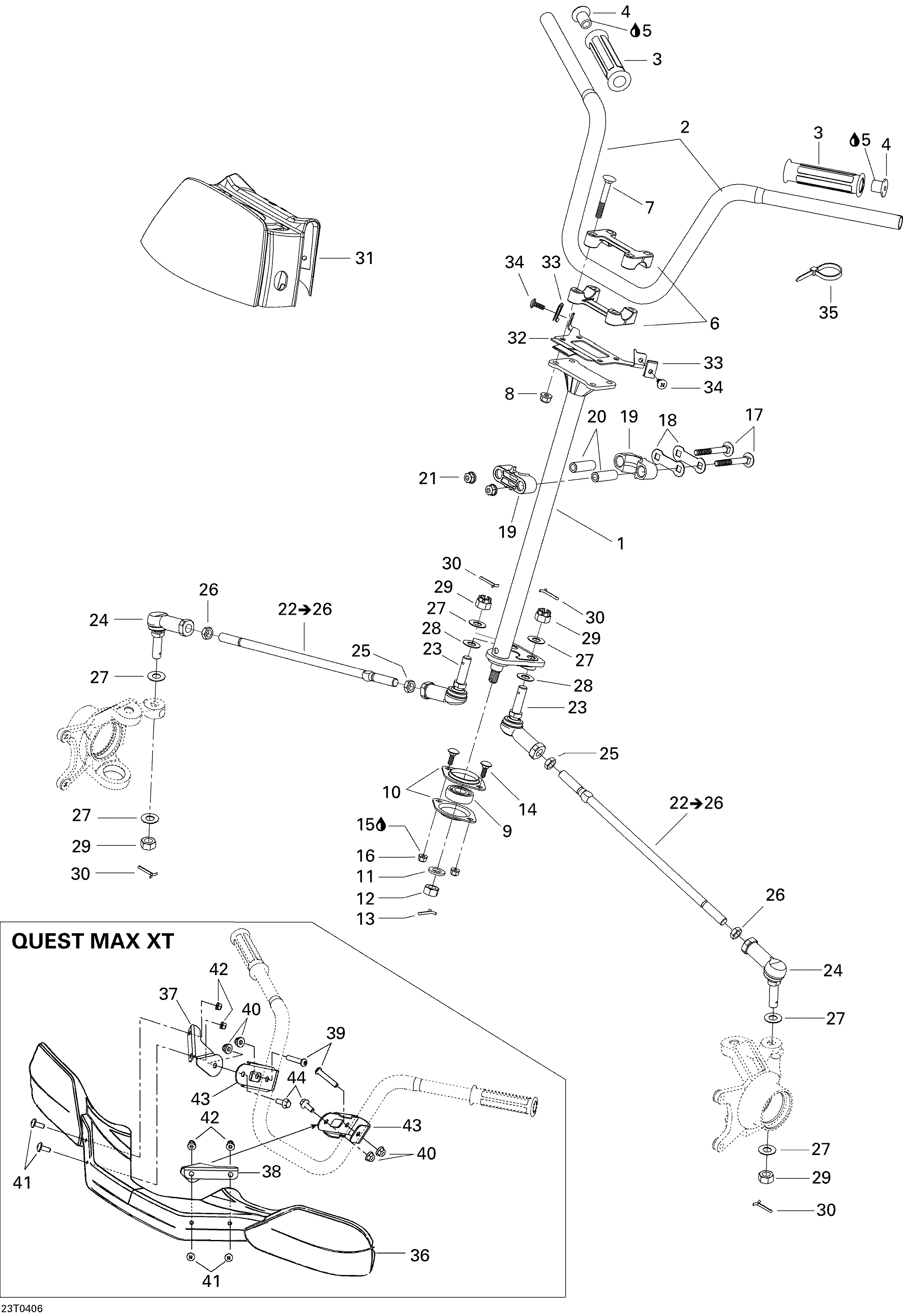

07- Steering System для BRP Quest MAX - 2004
-
№АртикулНазвание
-
1709400089 Main Tube (Black)Main Tube (Black)
-
2709400199 Handle BarHandle Bar
-
3709400157 Grip (Black)Grip (Black)
-
4709400189 End PieceEnd Piece
-
5293800100 Loctite 406, 7 OzLoctite 406, 7 Oz
-
6709400028 Steering ClampSteering Clamp
-
7207786544 Carriage Bolt M8 X 65Carriage Bolt M8 X 65
-
8233281414 Hex Elastic Flanged Nut M8Hex Elastic Flanged Nut M8
-
9709400224 Thrust BearingThrust Bearing
-
10709400152 Thrust WasherThrust Washer
-
11234021410 Flat Washer 12 mmFlat Washer 12 mm
-
12250100045 Nut M12Nut M12
-
13211400017 Cotter PinCotter Pin
-
14207762544 Carriage Bolt M6 X 25Carriage Bolt M6 X 25
-
15293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
16233261414 Hex Elastic Flanged Nut M6Hex Elastic Flanged Nut M6
-
17207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
18506150600 Stopper PlateStopper Plate
-
19709400034 Half-HousingHalf-Housing
-
20506150500 Housing BushingHousing Bushing
-
21233281414 Hex Elastic Flanged Nut M8Hex Elastic Flanged Nut M8
-
22709400240 Tie Rod Ass'y. Includes Items 22 to 26Tie Rod Ass'y. Includes Items 22 to 26
-
23709400241 RH Ball JointRH Ball Joint
-
24709400242 LH Ball JointLH Ball Joint
-
27706200281 Hard WasherHard Washer
-
28503189276 WasherWasher
-
29250100045 Nut M12Nut M12
-
30211400013 Cotter PinCotter Pin
-
31709400229 Steering Cover (Slate Grey)Steering Cover (Slate Grey)
-
32709400077 Cover Support (Black)Cover Support (Black)
-
33211100050 Speednut M6Speednut M6
-
34211000123 Truss Phillips Screw M6 X 20Truss Phillips Screw M6 X 20
-
35414115200 Tie-RapTie-Rap
-
35293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
36705000183 Hand Protector. XTHand Protector. XT
-
37709400116 RH Support. XTRH Support. XT
-
38709400117 LH Support. XTLH Support. XT
-
39205484546 Socket Head Screw M8 X 45. XTSocket Head Screw M8 X 45. XT
-
40233281414 Hex Elastic Flanged Nut M8. XTHex Elastic Flanged Nut M8. XT
-
41211000123 Truss Phillips Screw M6 X 20. XTTruss Phillips Screw M6 X 20. XT
-
42233261414 Hex Elastic Flanged Nut M6. XTHex Elastic Flanged Nut M6. XT
-
43709400118 ''U'' Shaped Bracket. XT''U'' Shaped Bracket. XT
-
44207682044 Hex Flanged Screw M8 X 20. XTHex Flanged Screw M8 X 20. XT
