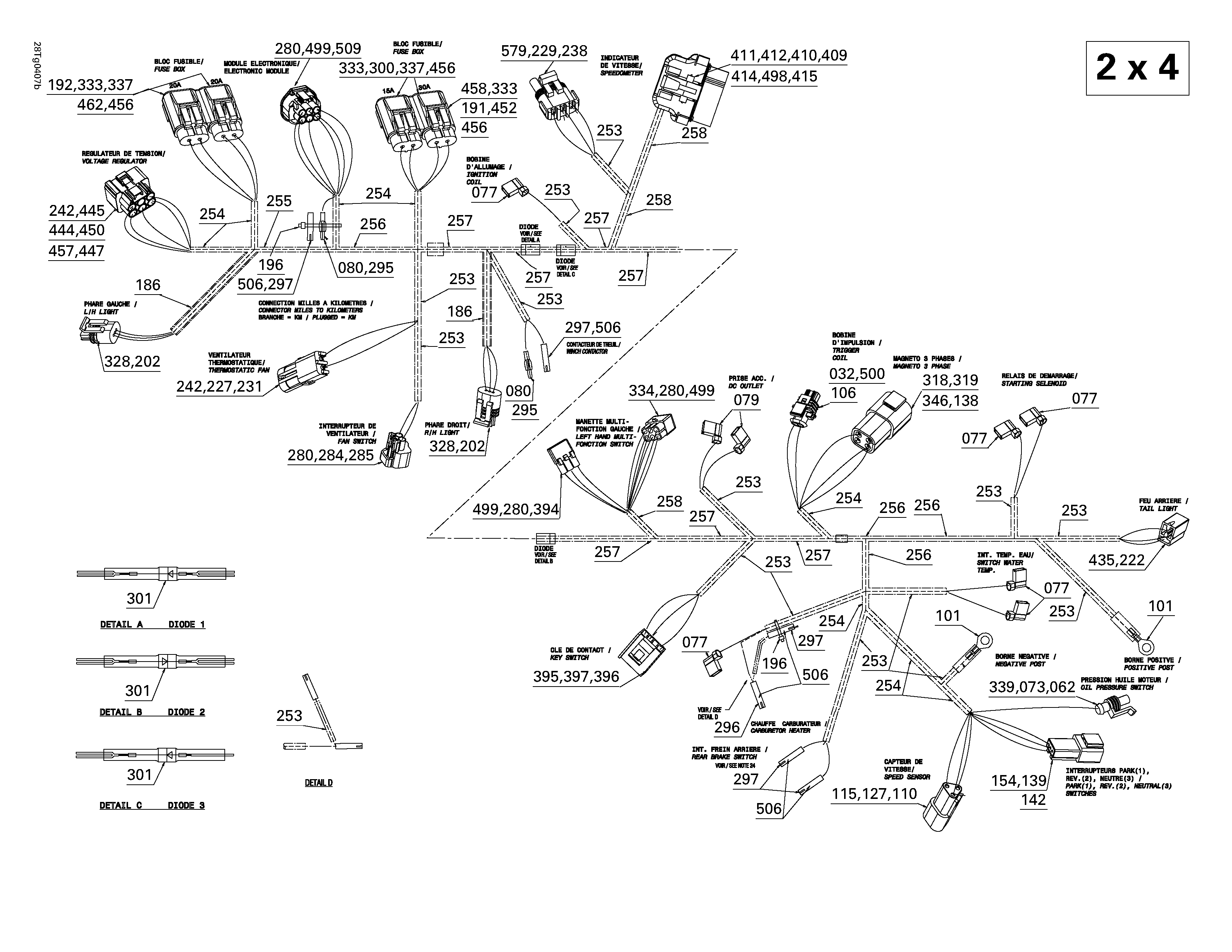

10- Main Harness (2X4) для BRP Outlander 330/400 STD 2 X 4 - 2004

  • №
    Артикул
    Название
  • 1
    710000462 Harness ass'y. Includes 1 - 509
    Harness ass'y. Includes 1 - 509
  • 32
    278000998 Female terminal
    Female terminal
  • 62
    278001014 Female terminal
    Female terminal
  • 73
    278001013 Wire seal
    Wire seal
  • 77
    409010300 Female terminal
    Female terminal
  • 79
    710000038 Female terminal
    Female terminal
  • 80
    278000230 Male terminal
    Male terminal
  • 101
    278001392 Open barrel
    Open barrel
  • 106
    278001005 Male terminal housing (2 circuits)
    Male terminal housing (2 circuits)
  • 110
    278000631 Male terminal
    Male terminal
  • 115
    409207000 Male terminal housing (3 circuits)
    Male terminal housing (3 circuits)
  • 127
    409207600 Male lock (3 circuits)
    Male lock (3 circuits)
  • 138
    293000052 Sealing cap
    Sealing cap
  • 139
    409014800 Male terminal
    Male terminal
  • 142
    710000044 Male terminal housing (3 circuits)
    Male terminal housing (3 circuits)
  • 154
    710000043 (Male) Secondary Lock (3 Circuits) (Deutsch)
    (Male) Secondary Lock (3 Circuits) (Deutsch)
  • 186
    515175332 Vinyl tubing (low temperature)
    Vinyl tubing (low temperature)
  • 191
    410917200 Fuse (30 amperes)
    Fuse (30 amperes)
  • 192
    409003900 Fuse (20 amperes)
    Fuse (20 amperes)
  • 202
    278001114 Female terminal
    Female terminal
  • 210
    278000736 Male terminal housing (6 circuits)
    Male terminal housing (6 circuits)
  • 227
    409004300 Male terminal
    Male terminal
  • 231
    278000217 Female terminal housing (2 circuits)
    Female terminal housing (2 circuits)
  • 242
    278000218 Wire seal
    Wire seal
  • 253
    515175442 Tubing 6 mm
    Tubing 6 mm
  • 254
    409901700 Tubing 9 mm
    Tubing 9 mm
  • 255
    409901800 Tubing
    Tubing
  • 256
    415080000 Tubing 16 mm
    Tubing 16 mm
  • 257
    409901600 Tubing
    Tubing
  • 280
    409012100 Female terminal
    Female terminal
  • 284
    409012300 Seal
    Seal
  • 285
    710000078 Female terminal housing (2 circuits)
    Female terminal housing (2 circuits)
  • 287
    710000080 Cap
    Cap
  • 295
    278001009 Female terminal
    Female terminal
  • 296
    278000770 Insulated sheet
    Insulated sheet
  • 297
    278001007 Insulated sheet
    Insulated sheet
  • 300
    278000343 Fuse (15 amperes)
    Fuse (15 amperes)
  • 318
    278001477 Female terminal housing (4 circuits)
    Female terminal housing (4 circuits)
  • 319
    515175568 Male Terminal
    Male Terminal
  • 328
    278001467 Male terminal housing (3 circuits)
    Male terminal housing (3 circuits)
  • 333
    278001325 Fuse holder
    Fuse holder
  • 334
    710000081 Female terminal housing (6 circuits)
    Female terminal housing (6 circuits)
  • 336
    710000115 Rubber envelope terminal
    Rubber envelope terminal
  • 337
    710000113 Female terminal
    Female terminal
  • 338
    710000114 Female terminal
    Female terminal
  • 339
    278001012 Male terminal housing (1 circuit)
    Male terminal housing (1 circuit)
  • 346
    278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)
    (Female) Secondary Lock (4 Circuits) (Deutsch)
  • 394
    710000275 Female terminal housing (3 circuits)
    Female terminal housing (3 circuits)
  • 395
    710000274 Female terminal
    Female terminal
  • 396
    710000272 Female terminal housing (4 circuits)
    Female terminal housing (4 circuits)
  • 397
    710000273 Lock (4 circuits)
    Lock (4 circuits)
  • 409
    515175812 Plug
    Plug
  • 410
    409204600 Female terminal housing (24 circuits)
    Female terminal housing (24 circuits)
  • 411
    515175802 Retainer block
    Retainer block
  • 412
    515175803 Wire seal
    Wire seal
  • 414
    515175805 Female lock
    Female lock
  • 415
    515175806 Female terminal
    Female terminal
  • 444
    710000336 Male terminal housing (6 circuits)
    Male terminal housing (6 circuits)
  • 445
    710000337 Joint seal
    Joint seal
  • 447
    710000339 Secondary lock
    Secondary lock
  • 450
    710000343 Cap
    Cap
  • 452
    710000342 Housing cover
    Housing cover
  • 456
    278000805 Cushion
    Cushion
  • 457
    710000356 Female terminal
    Female terminal
  • 458
    710000357 Female terminal
    Female terminal
  • 498
    710000399 Female terminal housing (24 circuits)
    Female terminal housing (24 circuits)
  • 499
    710000402 Wire seal
    Wire seal
  • 500
    710000403 Wire seal
    Wire seal
  • 506
    710000421 Female terminal
    Female terminal
  • 509
    710000474 Female terminal housing (6 circuits)
    Female terminal housing (6 circuits)
