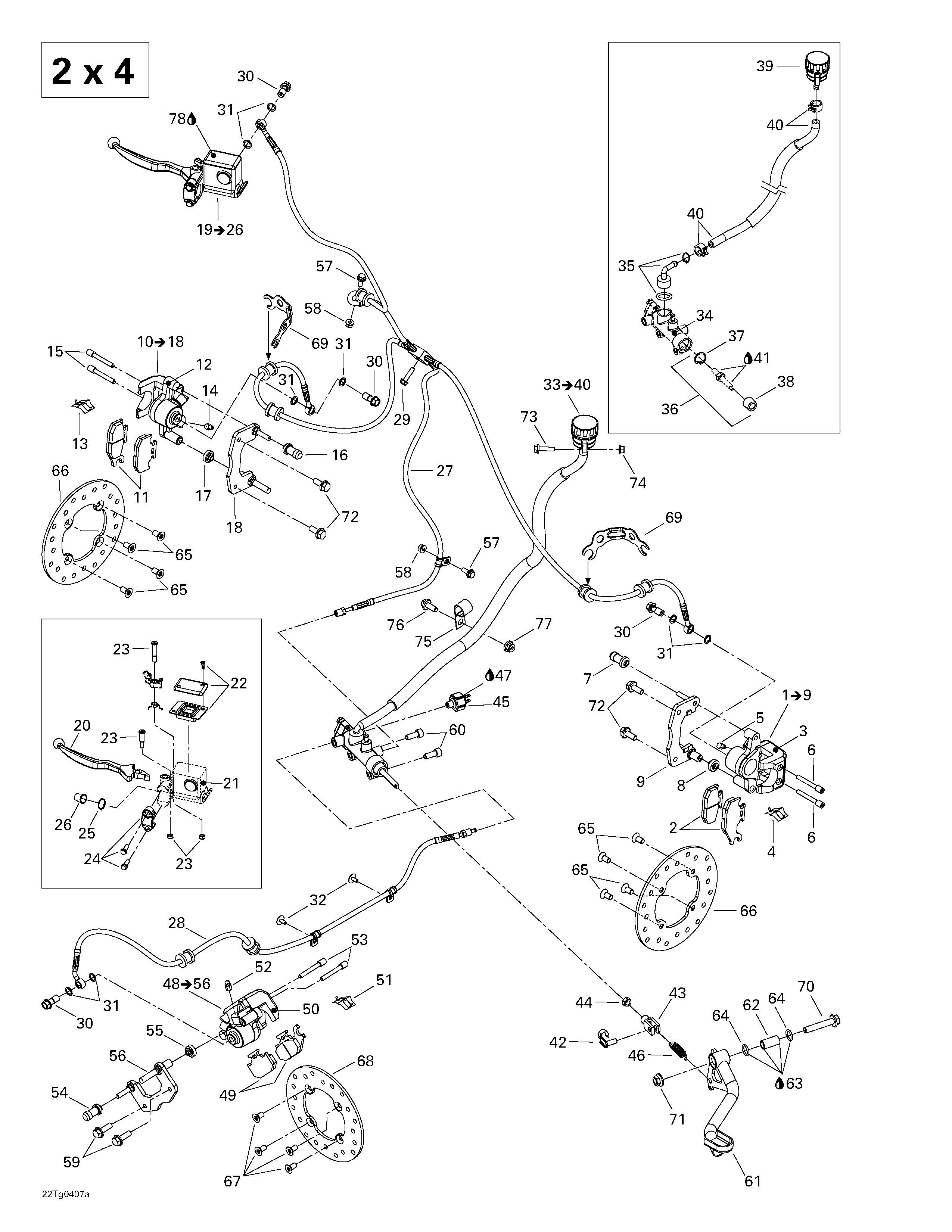

06- Hydraulic Brake (2 X 4) для BRP Outlander 330/400 STD 2 X 4 - 2004
-
№АртикулНазвание
-
1705600307 L.h. caliper. Includes 1 - 9L.h. caliper. Includes 1 - 9
-
2705600014 Brake pad kitBrake pad kit
-
3705600078 Piston setPiston set
-
4705600079 SpringSpring
-
5705600080 Bleeder screwBleeder screw
-
6705600081 Pin setPin set
-
7705600082 Compression bootCompression boot
-
8705600083 Compression bootCompression boot
-
9705600298 L.h. caliper supportL.h. caliper support
-
10705600306 R.h. caliper. Includes 10 - 18R.h. caliper. Includes 10 - 18
-
11705600004 Brake pad kitBrake pad kit
-
12705600078 Piston setPiston set
-
13705600079 SpringSpring
-
14705600080 Bleeder screwBleeder screw
-
15705600081 Pin setPin set
-
16705600082 Compression bootCompression boot
-
17705600083 Compression bootCompression boot
-
18705600299 R.h. caliper supportR.h. caliper support
-
19705600242 Front master cylinder. Includes 19 - 26Front master cylinder. Includes 19 - 26
-
20705600243 Lever armLever arm
-
21705600244 Piston kitPiston kit
-
22705600084 Boot kitBoot kit
-
23705600246 Bolt kitBolt kit
-
24705600087 Bracket kitBracket kit
-
25705600088 CirclipCirclip
-
26705600089 Compression bootCompression boot
-
27705600352 Front hoseFront hose
-
28705600373 Rear hoseRear hose
-
29210262580 Hex flanged forming screw M6 x 25Hex flanged forming screw M6 x 25
-
30705600056 Banjo boltBanjo bolt
-
31705600310 Copper washerCopper washer
-
32390406500 Pop rivet 3/16''Pop rivet 3/16''
-
33705600254 Rear master cylinder. Includes 33 - 40Rear master cylinder. Includes 33 - 40
-
34705600255 Piston setPiston set
-
35705600064 Pusher bracketPusher bracket
-
37705600068 CirclipCirclip
-
38705600090 Compression bootCompression boot
-
39705600182 Oil tankOil tank
-
40705600262 Oil housing hoseOil housing hose
-
42250400007 PinPin
-
43705600100 YokeYoke
-
44232081414 Hex nut M8Hex nut M8
-
45710000099 Brake switchBrake switch
-
46705600098 Break pedal springBreak pedal spring
-
47293800013 Loctite, pipe sealant, 250 mlLoctite, pipe sealant, 250 ml
-
48705600263 Rear caliper. Includes 48 - 56Rear caliper. Includes 48 - 56
-
49705600014 Brake pad kitBrake pad kit
-
50705600295 Piston setPiston set
-
51705600079 SpringSpring
-
52705600080 Bleeder screwBleeder screw
-
53705600081 Pin setPin set
-
54705600082 Compression bootCompression boot
-
55705600083 Compression bootCompression boot
-
56705600298 Caliper supportCaliper support
-
57207661644 Hex flanged screw M6 x 16Hex flanged screw M6 x 16
-
58233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
59207582544 Hex flanged screw M8 x 25 (scotch grip)Hex flanged screw M8 x 25 (scotch grip)
-
60250000136 Socket screw M8 x 20 (scotch grip)Socket screw M8 x 20 (scotch grip)
-
61705600265 Brake pedalBrake pedal
-
62705600283 SpacerSpacer
-
63293550010 Synthetic grease, 400 gSynthetic grease, 400 g
-
64293300053 O-ringO-ring
-
65235381646 Countersunk torx screw M8 x 16 (scotch grip)Countersunk torx screw M8 x 16 (scotch grip)
-
66705600271 Brake discBrake disc
-
67235381646 Countersunk torx screw M8 x 16 (scotch grip)Countersunk torx screw M8 x 16 (scotch grip)
-
68705600271 Brake discBrake disc
-
69705600284 Hose supportHose support
-
70207605544 Hex flanged screw M10 x 55Hex flanged screw M10 x 55
-
71233201414 Hex flanged elastic nut M10Hex flanged elastic nut M10
-
72207582044 Hex flanged screw M8 x 20 (scotch grip)Hex flanged screw M8 x 20 (scotch grip)
-
73207662544 Hex flanged screw M6 x 25Hex flanged screw M6 x 25
-
74233261414 Hex flanged elastic nut M6Hex flanged elastic nut M6
-
75705600311 ClampClamp
-
76207682044 Hex flanged screw M8 x 20Hex flanged screw M8 x 20
-
77233281414 Hex flanged elastic nut M8Hex flanged elastic nut M8
-
78293600063 Brake fluid, SRF (DOT 4)Brake fluid, SRF (DOT 4)
-
293600062 Brake fluid, GTLMA (DOT 4), 12 x 235 mlBrake fluid, GTLMA (DOT 4), 12 x 235 ml
