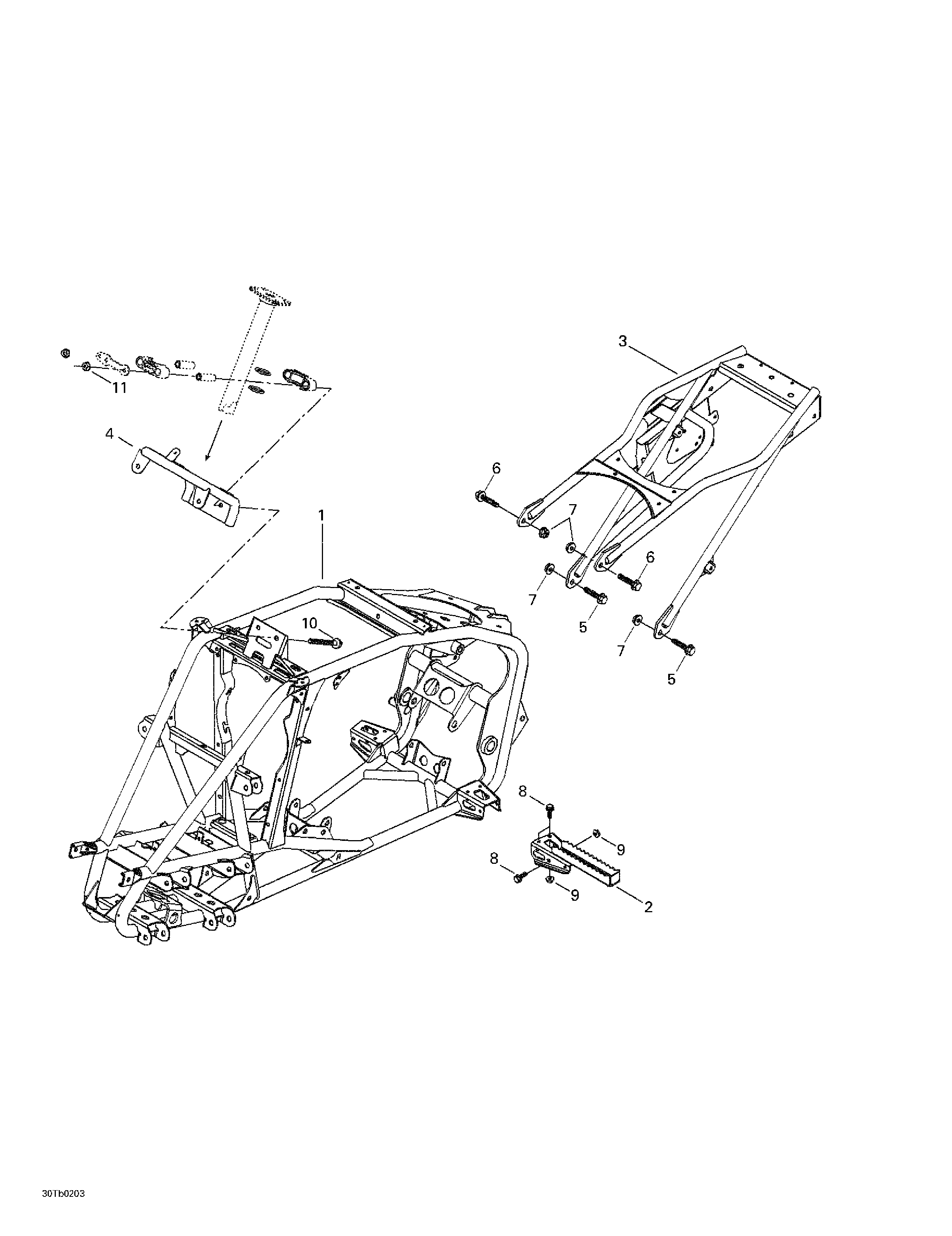

09- Frame для BRP DS 650 - 2002

  • №
    Артикул
    Название
  • 1
    705200185 Painted Frame
    Painted Frame
  • 2
    705200313 R.H. Footrest
    R.H. Footrest
  • 705200315 LH Footrest
    LH Footrest
  • 3
    705200359 Frame Extension
    Frame Extension
  • 4
    705200189 Box Support
    Box Support
  • 5
    207503046 Hex. Flanged Screw M10 x 30 (Scotch Grip)
    Hex. Flanged Screw M10 x 30 (Scotch Grip)
  • 6
    207505046 Hex. Flanged Screw M10 x 50 (Scotch Grip)
    Hex. Flanged Screw M10 x 50 (Scotch Grip)
  • 7
    233201416 Elastic Flanged Stop Nut M10
    Elastic Flanged Stop Nut M10
  • 8
    207661644 Hex. Flanged Screw M6 x 16
    Hex. Flanged Screw M6 x 16
  • 9
    233261414 Elastic Flanged Stop Nut M6
    Elastic Flanged Stop Nut M6
  • 10
    207687544 Hex. Flanged Screw M8 x 75
    Hex. Flanged Screw M8 x 75
  • 11
    233281414 Elastic Flanged Nut M8
    Elastic Flanged Nut M8
